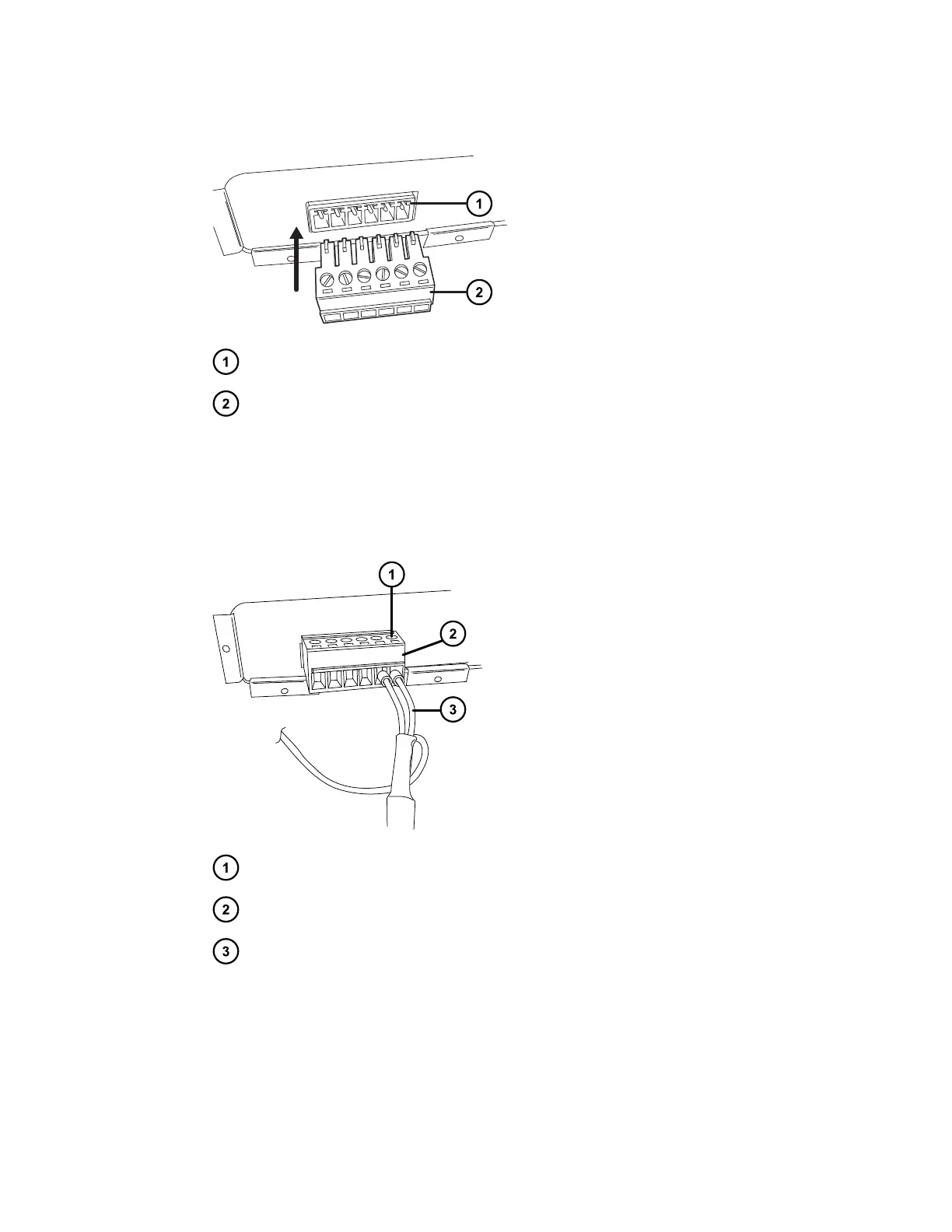

Figure C–3: Inserting the connector into the connector port
Connector port
Connector
2. Using the flat-blade screwdriver, attach the positive and negative leads of the signal cable
to the connector.
Tip: Refer to the cable-connection label affixed to the rear panel of the module.
Figure C–4: Positive and negative lead connections
Screw
Connector
Signal cable
3. Fit the grounding cable's fork terminal on the rear-panel grounding stud and secure the
terminal using the locking nut.
Note: Use the 9/32-inch nut driver to tighten the locking nut until the terminal does not
move.
November 26, 2019, 715003588 Revision C
Page 97
