Watlow PM LEGACY
™
Limit Controller • 19 • Chapter 2 Install and Wire
Warning:
ç
Use National Electric (NEC) or
other country-specific standard
wiring and safety practices when
wiring and connecting this con-
troller to a power source and to
electrical sensors or peripheral
devices. Failure to do so may
result in damage to equipment
and property, and/or injury or
loss of life.
Note:
Maximum wire size termination
and torque rating:
• 0.0507 to 3.30 mm
2
(30 to 12
AWG) single-wire termination
or two 1.31 mm
2
(16 AWG)
• 0.56 Nm (5.0 in-lb.) torque
Note:
Adjacent terminals may be la-
beled differently, depending on
the model number
.
Note:
To prevent damage to the con-
troller, do not connect wires to
unused terminals.
Note:
Maintain electrical isolation
between analog input 1, digital
input-outputs, switched dc/open
collector outputs and process
outputs to prevent ground loops.

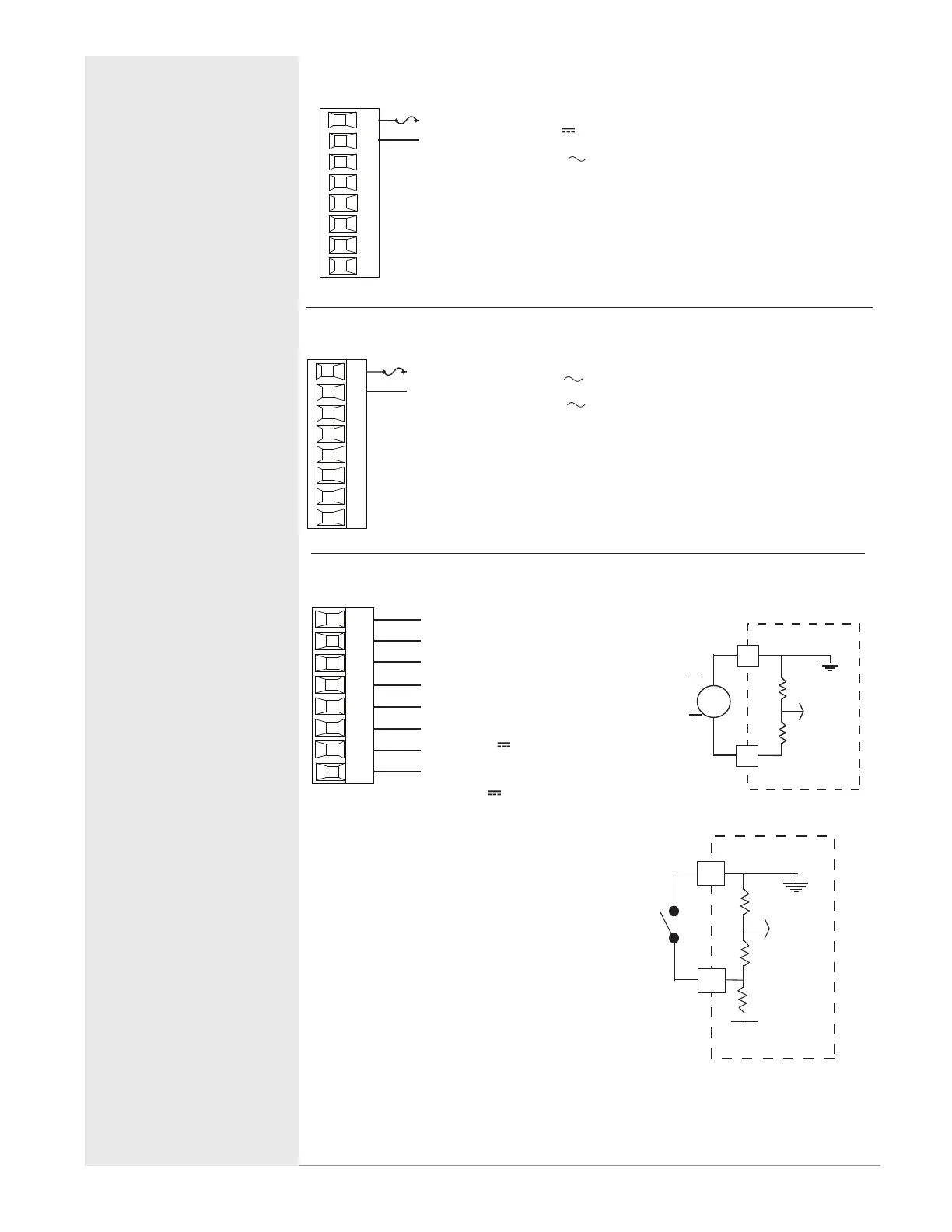

Low Power PM6[L,M] [3,4} _ J-_ A_ _G_ _
power
power
98
99
CF
CD
CE
B5
D6
D5
Slot C
fuse
• Minimum/Maximum Ratings
• 12 to 40V (dc)
• 20 to 28V (ac) Semi Sig F47
• 47 to 63 Hz
• 10VA maximum power consumption (PM6)
High Power PM6[L,M] [1,2} _ J-_ A_ _G_ _
power
power
98
99
CF
CD
CE
B5
D6
D5
Slot C
fuse
• Minimum/Maximum Ratings
• 85 to 264V ac)
• 100 to 240V (ac) Semi Sig F47
• 47 to 63 Hz
• 10VA maximum power consumption (PM6)
Digital Input 5 - 6 PM6[L,M] [2,4] _ J-_ A_ _G_ _
98
99
CF
CD
CE
B5
D6
D5
Slot C
DC Input
common
DC Input
Digital Input
• Update rate 10 Hz
• Dry contact or dc
voltage
DC Voltage
• Input not to exceed
36V dc) at 3mA
• Input active when >
3V (dc) @ 0.25mA
• Input inactive when <
2V
Dry Contact
• Input inactive when >
500Ω
• Input active when <
100Ω
• Maximum short circuit
13mA
Voltage Input
common
Vdc
D
_
B
_
Dry Contact
common
24 Vdc
B
_
_
D
To Next Page
