70
Scheduled Testing, Inspection and Maintenance

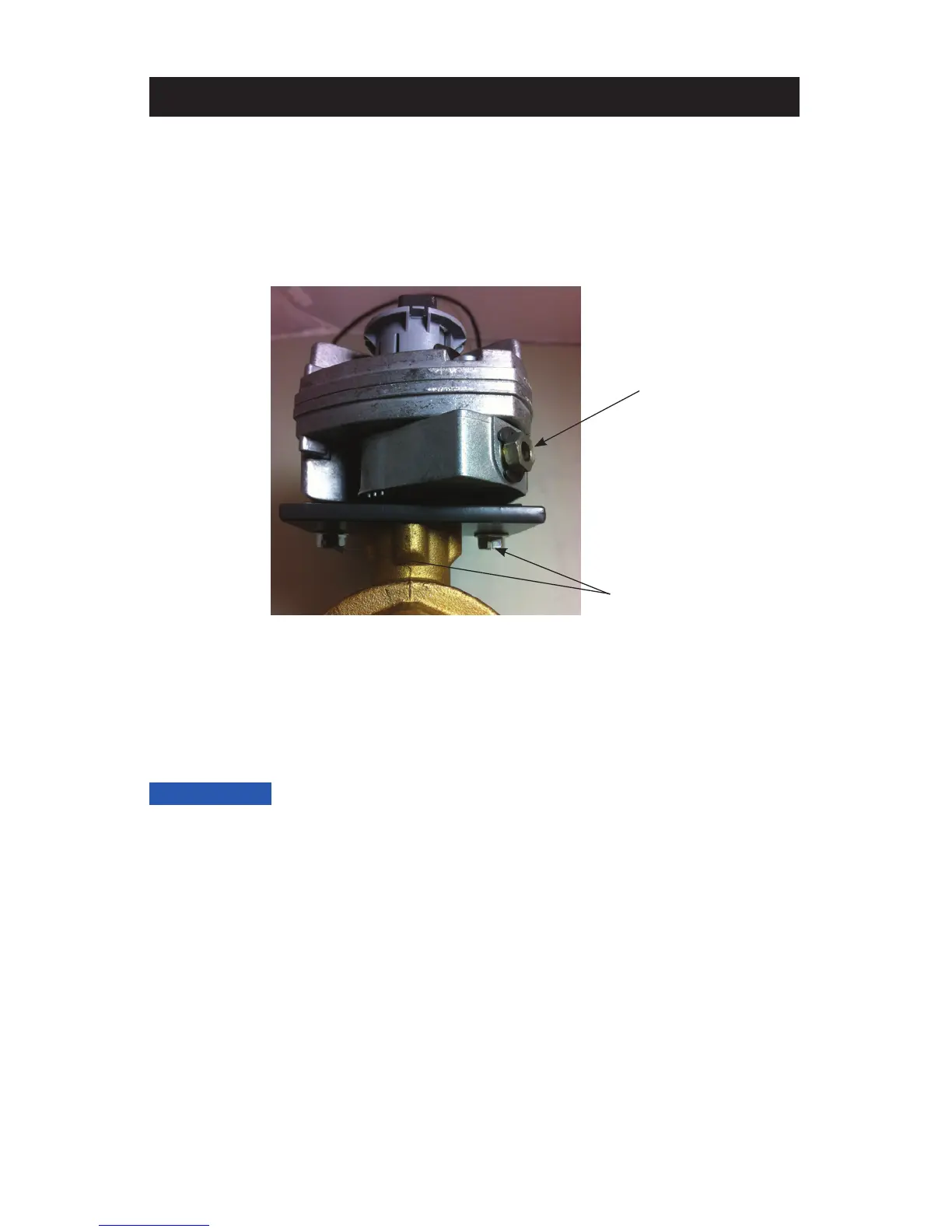

5. Using the 3/8" wrench, install the support plate bolts (see below) until snug. Ensure that the support
plate bolts are sufficiently loose to allow for some very slight movement between the support plate and
the actuator. This play will allow the actuator to find the proper position when the armature clamping nut
is tightened down.
Armature Clamping
Nut
Support
Plate Bolts
NOTICE
6. Tighten down the armature clamping nut using the 10mm socket and torque wrench to 50 in-lbs
(5.65 N-m)
7. Using the 3/8" socket, elbow and torque wrench, torque down the support plate nut to 50 in-lbs.
Take caution not to overtighten and strip these nuts.
