71
Scheduled Testing, Inspection and Maintenance
NOTICE
8. Run the control wires up to the control along the same path as when removed.
9. Cut wires to an appropriate length and strip to allow for installation into the terminal blocks.
10. Wire to terminal blocks as follows:
1. (0-10 Act) Grey
2. (Com) N/A
3. (Mtr FB) Pink
4. (R) Red
5. (C) Black
The “Com” terminal of the control is not wired & orange actuator wire is not used by this control
11. Utilize cable ties to secure the wires and close the control module. Once the box is closed,
re-energize the unit.
12. Resume normal operation and observe that the actuator and valve are now working properly.

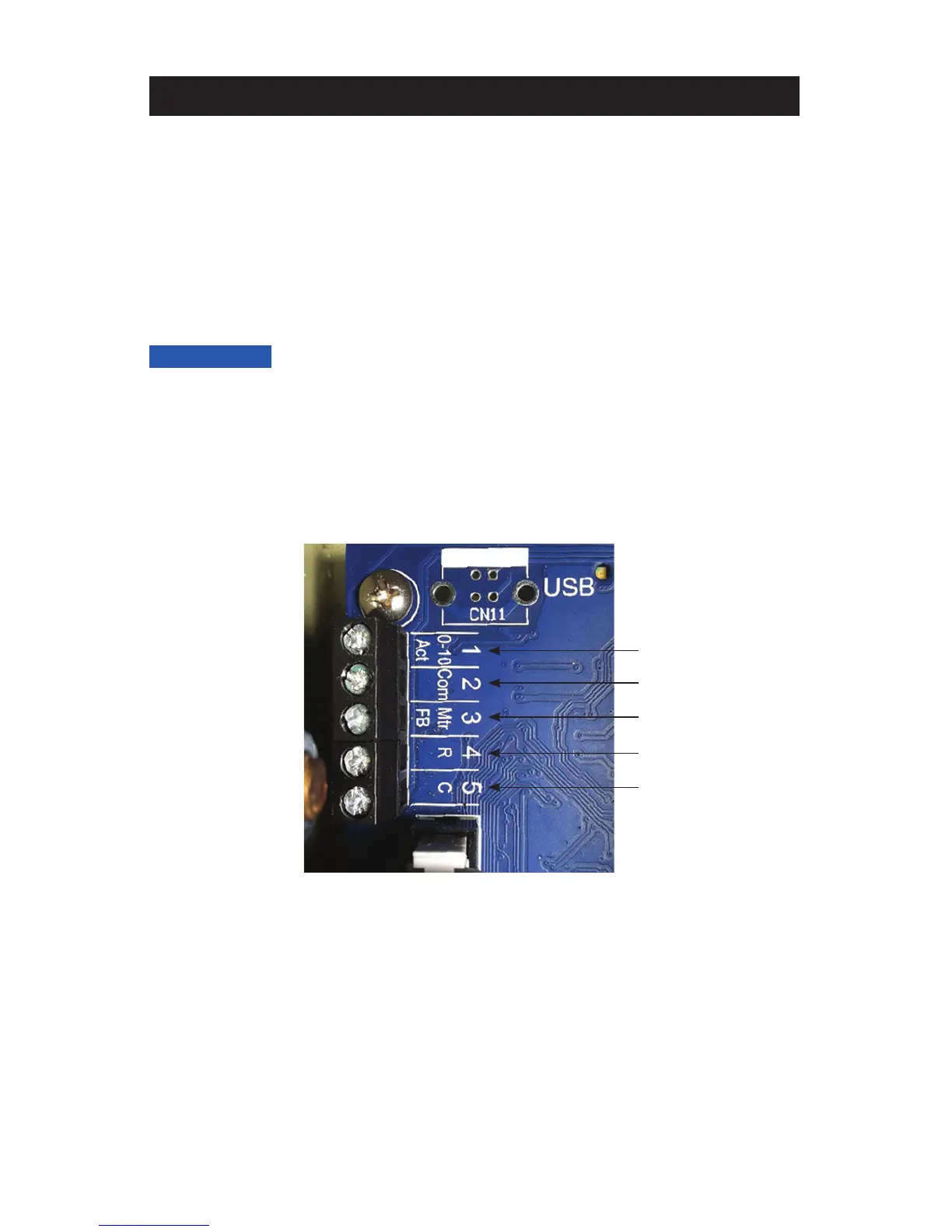

1-Grey
2-N/A
3-Pink
4-Red
5-Black
Control Unit (interior)
To Next Page
