69
Scheduled Testing, Inspection and Maintenance

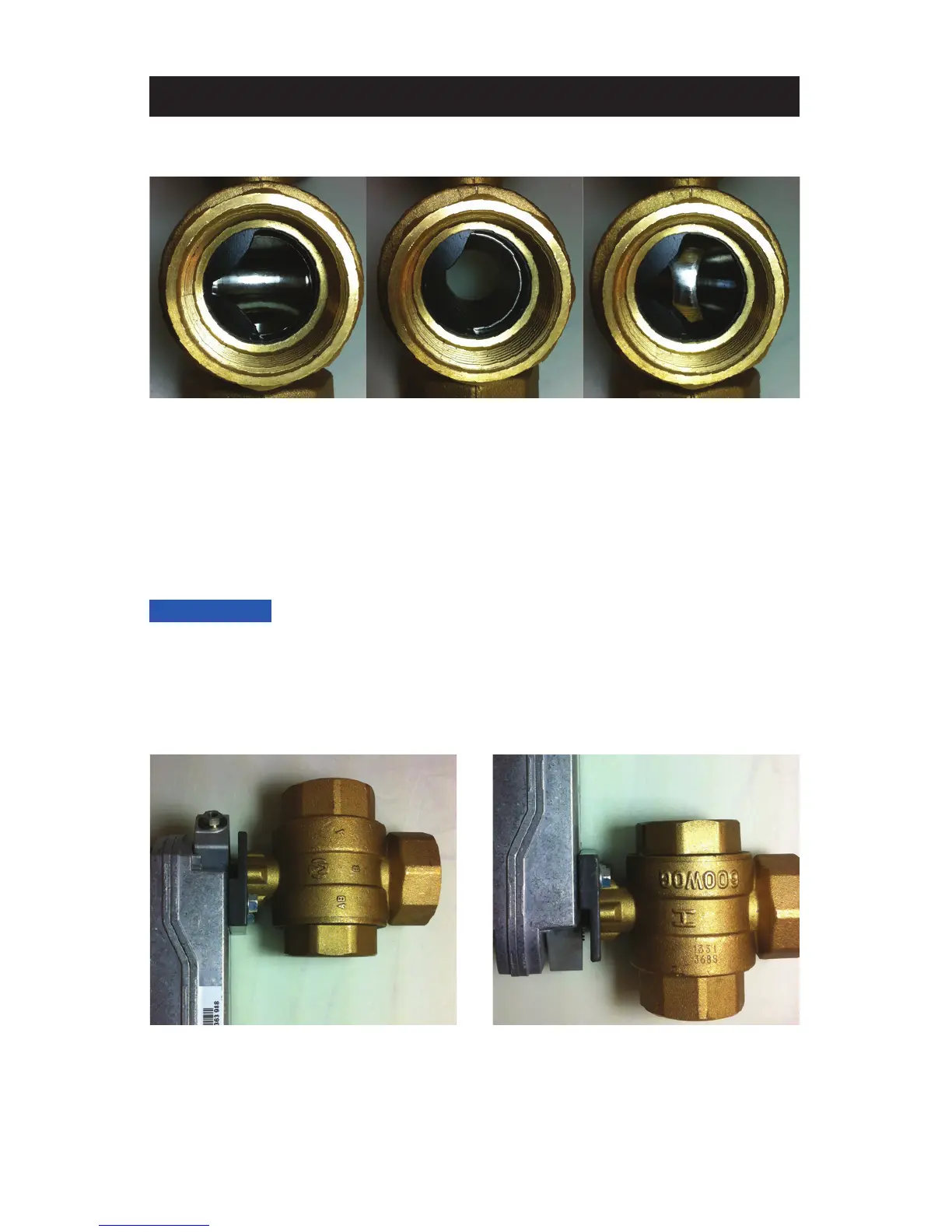

Correct Incorrect Incorrect
Valve Outlet
4. Once both the actuator and valve have been aligned “correctly” the actuator can be reinstalled onto the
valve by sliding actuator over the valve stem until the actuator sits tight against the actuator support
plate with the actuator positioned vertically as shown below.
The valve outlet (with plastic insert) should be facing upwards
NOTICE
Correct Incorrect
Valve / Actuator
To Next Page
