2-6 | CFW-11
Analog inputs
(AI1 and AI2)
FLASH
memory
module
MMF-03
Digital inputs
(DI1 to DI6)
Control power supply and interfaces
between power and control sections
USB
PC
Power
control
CPC 11
pre-charge
control
Motor
U/T1R/L1
S/L2
T/L3
V/T2
W/T3
IGBT
inverter
Power
supply
RFI filter/MOVs
(*)
RF filter
Three-phase
rectifier
DC+
Braking
resistor
External braking
module
(Optional)
DC-
SuperDrive
G2 software
WLP software
Keypad
CC11
Control
board
with
32-bit
"RISC"
CPU
Analog outputs
(AO1 and AO2)
Digital outputs
DO1 (RL1) to
DO3 (RL3)
Keypad (remote)
DC Link
chokes
DC Link capacitor bank
Feedback:
- voltage
- current
PE
PE
COMM 2
(anybus) (Slot 4)
COMM 1
(Slot 3 - green)
Encoder interface
(Slot 2 - yellow)
I/O expansion
(Slot 1 - white)
Accessories
(*) The capacitor of RFI filter and MOV connected to the ground must be disconnected with IT network, high impedance grounding network and corner-
-grounded delta networks. Refer to Item 3.2.3.1.2 IT Networks on page 3-22.

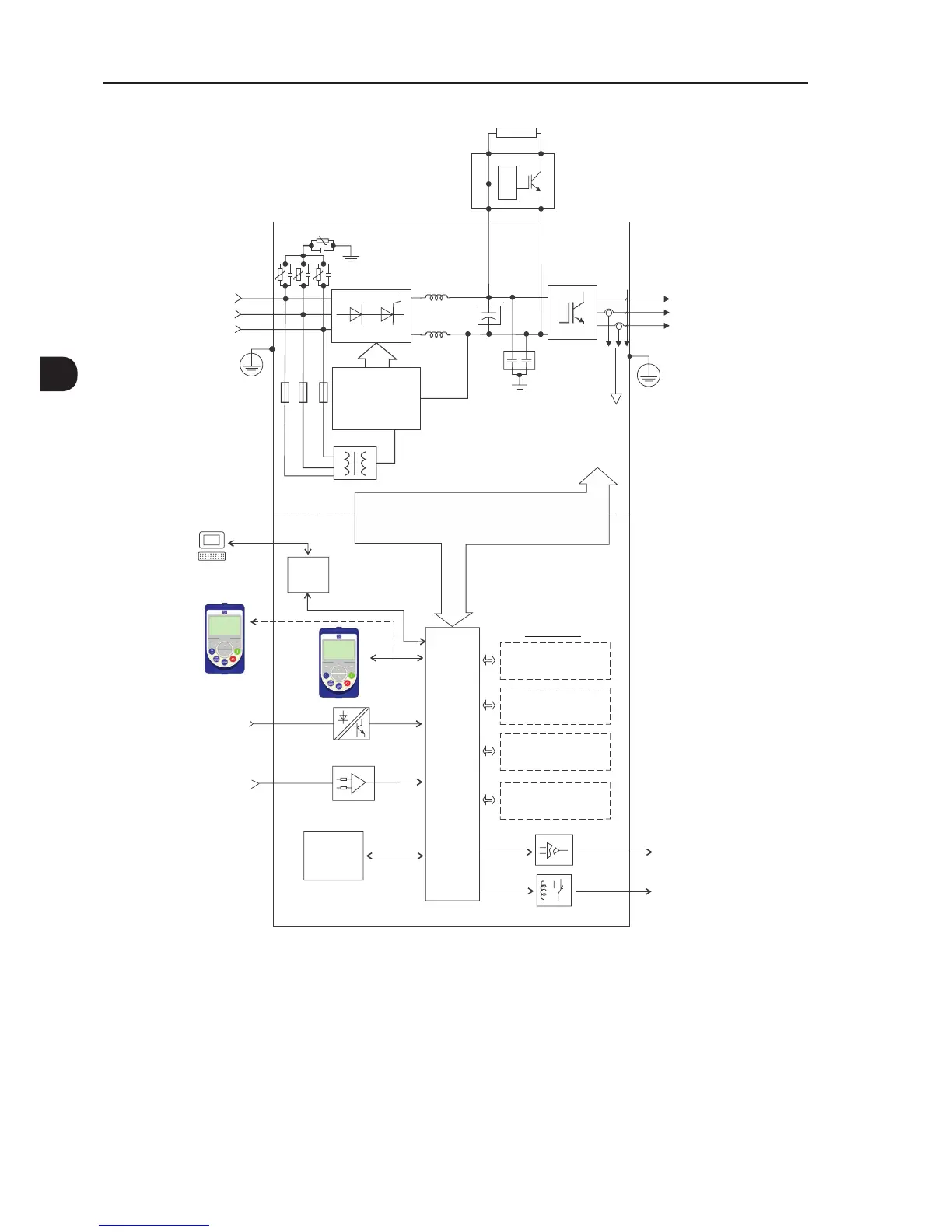

(a) Frame sizes F and G standard models with AC power supply
