WEG CFW-11 - Page 35

Installation and Connection
3
CFW-11 | 3-9

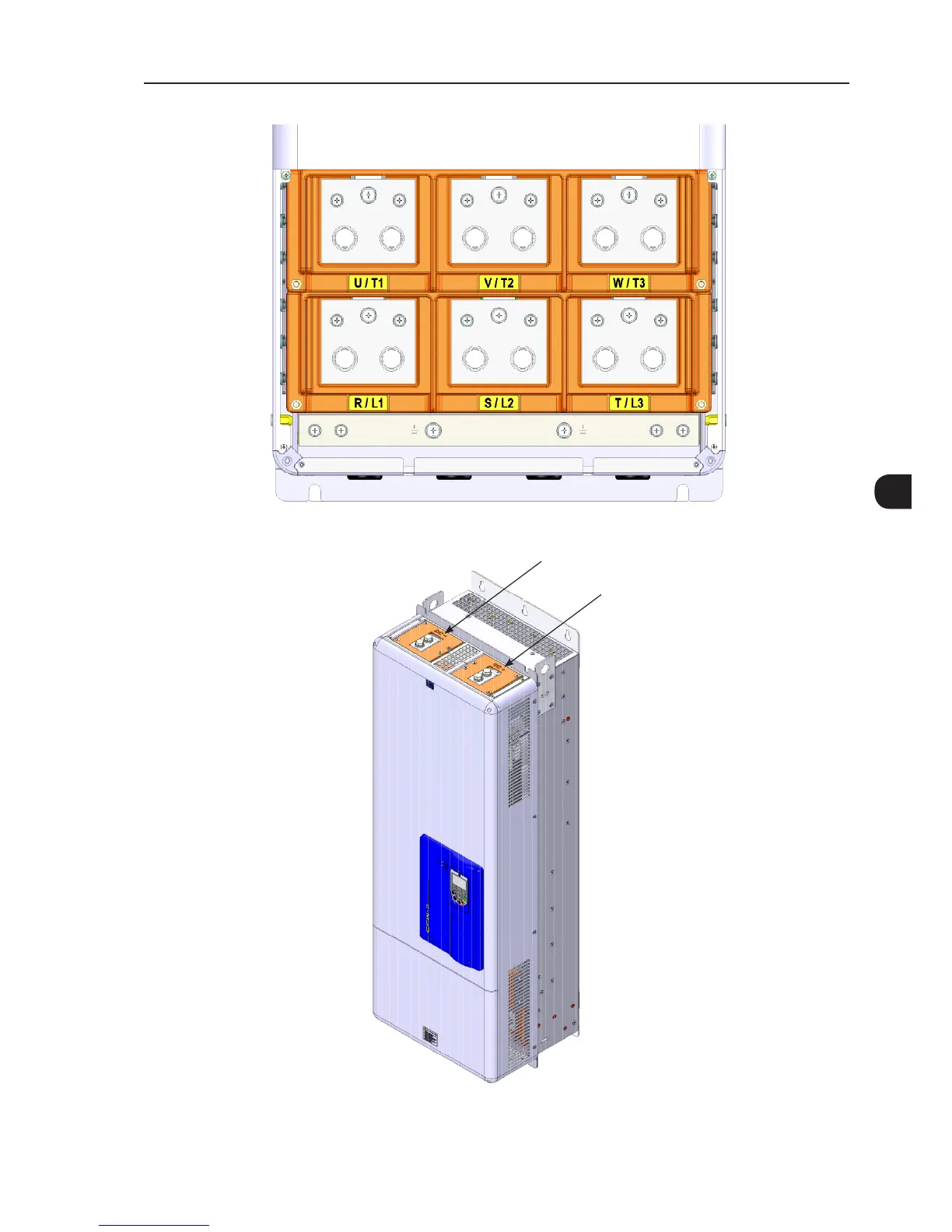

(a) Frame size F power terminals and grounding points
DC-
DC+
(b) Frame size F with special DC hardware: Terminals for DC voltage supply. Terminals R/L1, S/L2 and T/L3 are not
internally connected in this version
