WEG CFW501 - Startup Menu Overview; V;f Control Type Startup

28 | CFW501
Powering up and Startup
EnglishEnglish
5.2 STARTUP
The startup is explained in a very simple way, using the programming features with the
existing parameter groups in the menus STARTUP and BASIC.
5.2.1 STARTUP Menu
5.2.1.1 V/f Control Type (P0202 = 0)
Seq Indication on the Display / Action Seq Indication on the Display / Action
1
6
 Monitoring mode.
 Press the key ENTER/MENU to enter 1
st
level of programming mode.
 If necessary, modify the content of “P0398 –
Motor Service Factor”.
 Press the key  for the next parameter.
2 7
 The PARAM group is selected, press the
keys  or  until selecting the STARTUP
group.
 If necessary, modify the content of “P0400 –
Motor Rated Voltage”.
 Press the key  for the next parameter.
3 8
 When the STARTUP group is selected
Press the key ENTER/MENU.
 If necessary, modify the content of “P0401 –
Motor Rated Current”.
 Press the key  for the next parameter.
4 9
 If necessary, press ENTER/MENU to
modify the content of “P0202 – Control
Type” for P0202 = 0 (V/f).
 If necessary, modify the content of “P0402 –
Motor Rated Frequency”, or press the key 
for the next parameter.
5 10
 When the desired value is reached, press
ENTER/MENU to save the modification.
 Press the key  for the next parameter.
 If necessary, modify the content of “P0403 –
Motor Rated Frequency”, or press the Key 
for the next parameter.

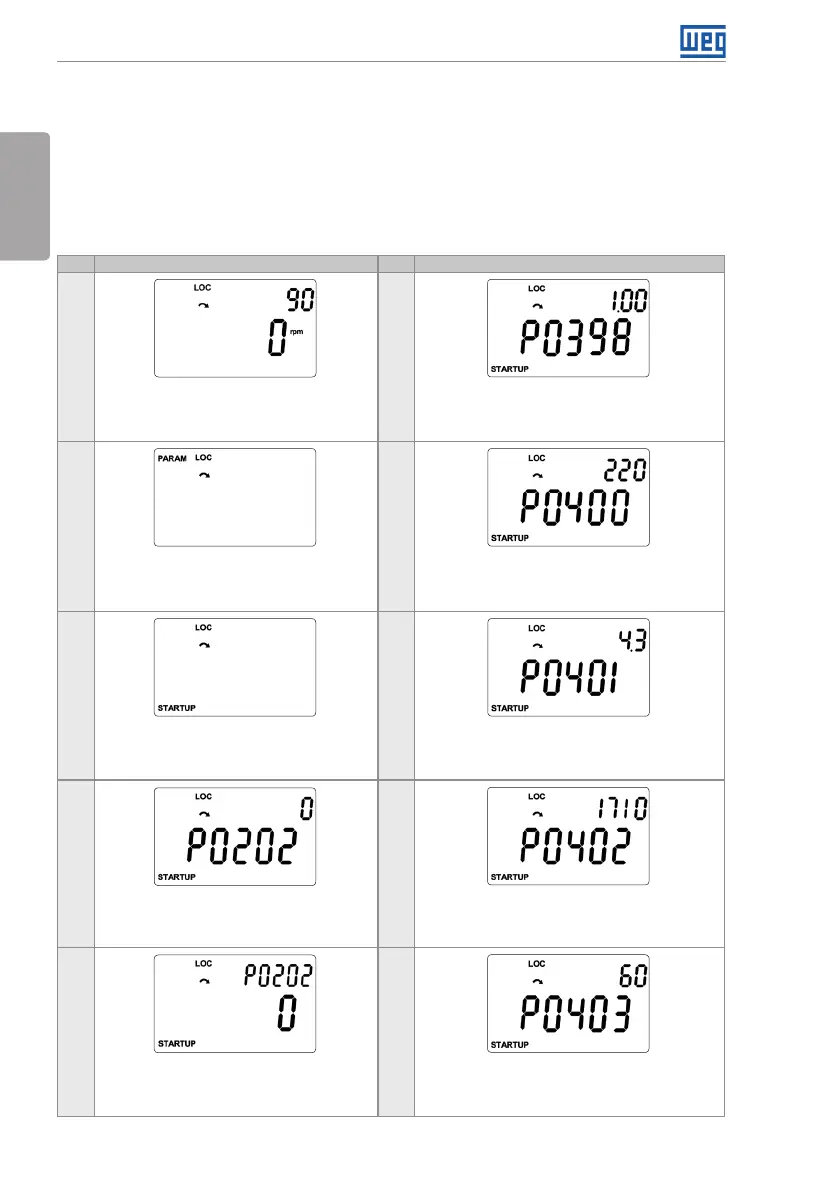

Figure 5.2: Sequence of the Startup group for V/f control
