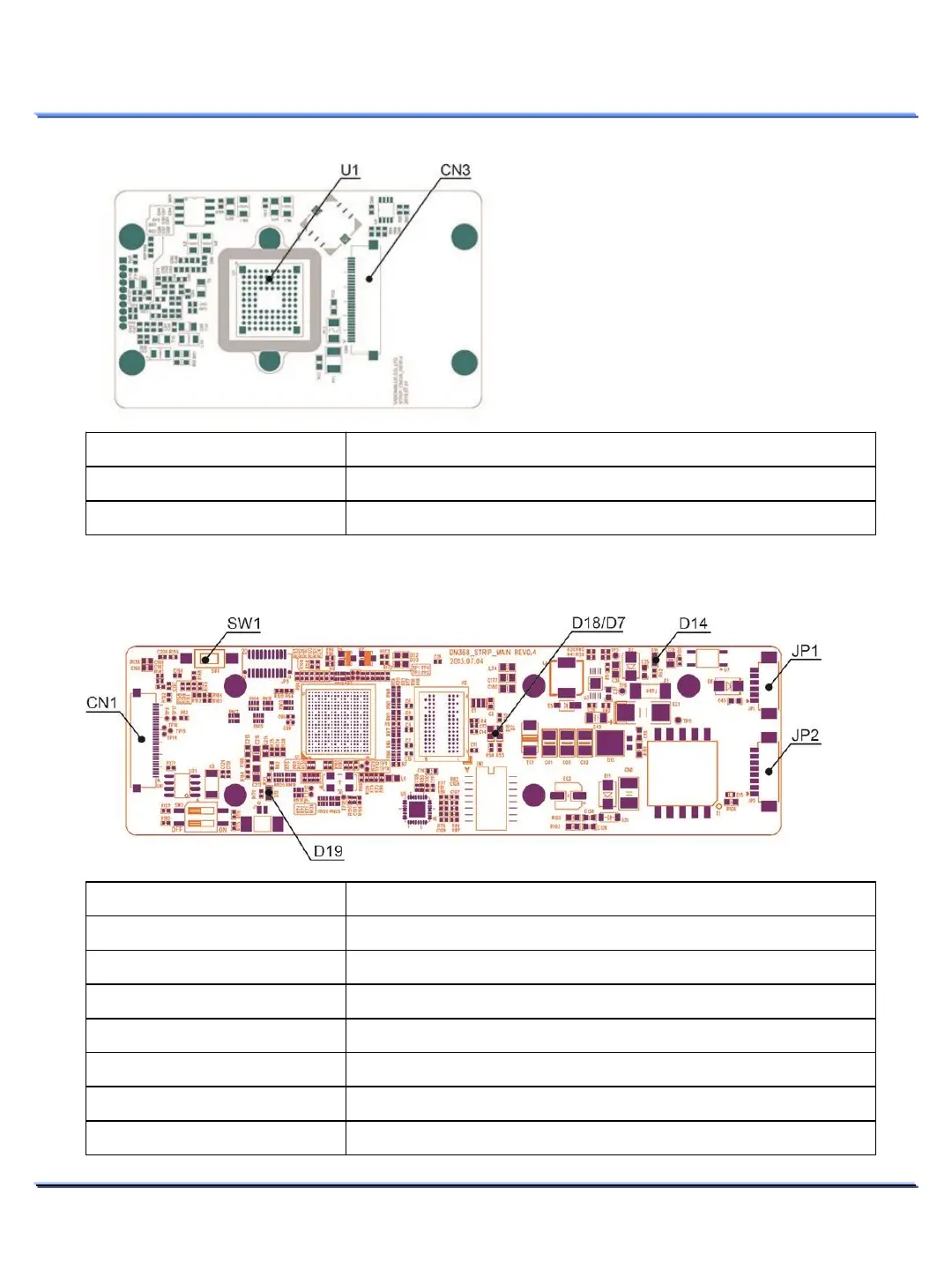

PCB Board Layout of the Camera
CMOS Board layout of the camera
13
This document contains confidential and proprietary information of Weldex Corporation.
INSTALLATION
MAIN Board layout of the camera
Location Number Description
CN1
FPC/FFC 30pin Cable to connect the CMOS Board
SW1
Factory Reset switch
D19
Factory Reset indicator
D14
Power Indicator
D18/D7
Ethernet Link / Activity indicator
JP1
Power/Video out/Audio out/Sensor in/Alarm out signals
JP2
Ethernet/Power over Ethernet signals
Location Number Description
U1
CMOS Sensor device
CN3
FPC/FFC 30pin Cable
