WEB Viewer
Item Description
Bit
Rate Control
Compression methods: CBR(
Constant Bitrate), VBR(
Variable Bitrate).
-
CBR varies the image quality and outputs a fixed bit rate.
-
VBR varies the bit rate and prioritizes image quality.
Bit
Rate
Amount of data output per second.
The selection range will change depending on the selected resolution.
If VBR is selected, the maximum bitrate that can be configured is
indicated next to the input
box.
GOP (Group of Picture)
Key
frame insertion interval.
Selectable
range: 1~90.
If
you increase this value, the data output size will be decreased.
However, in the event of a frame loss, it will take longer for the image
to be restored.
Quality
Quality
of the MJPEG.
Selectable range: 5~95.
Note
Stream1(H.264) is the main stream and it is used for monitoring and local recording.
Stream2(MJPEG) is a sub-stream and it is used for email, FTP, and motion detection setup
pages. Stream2 can also be used for network streaming.

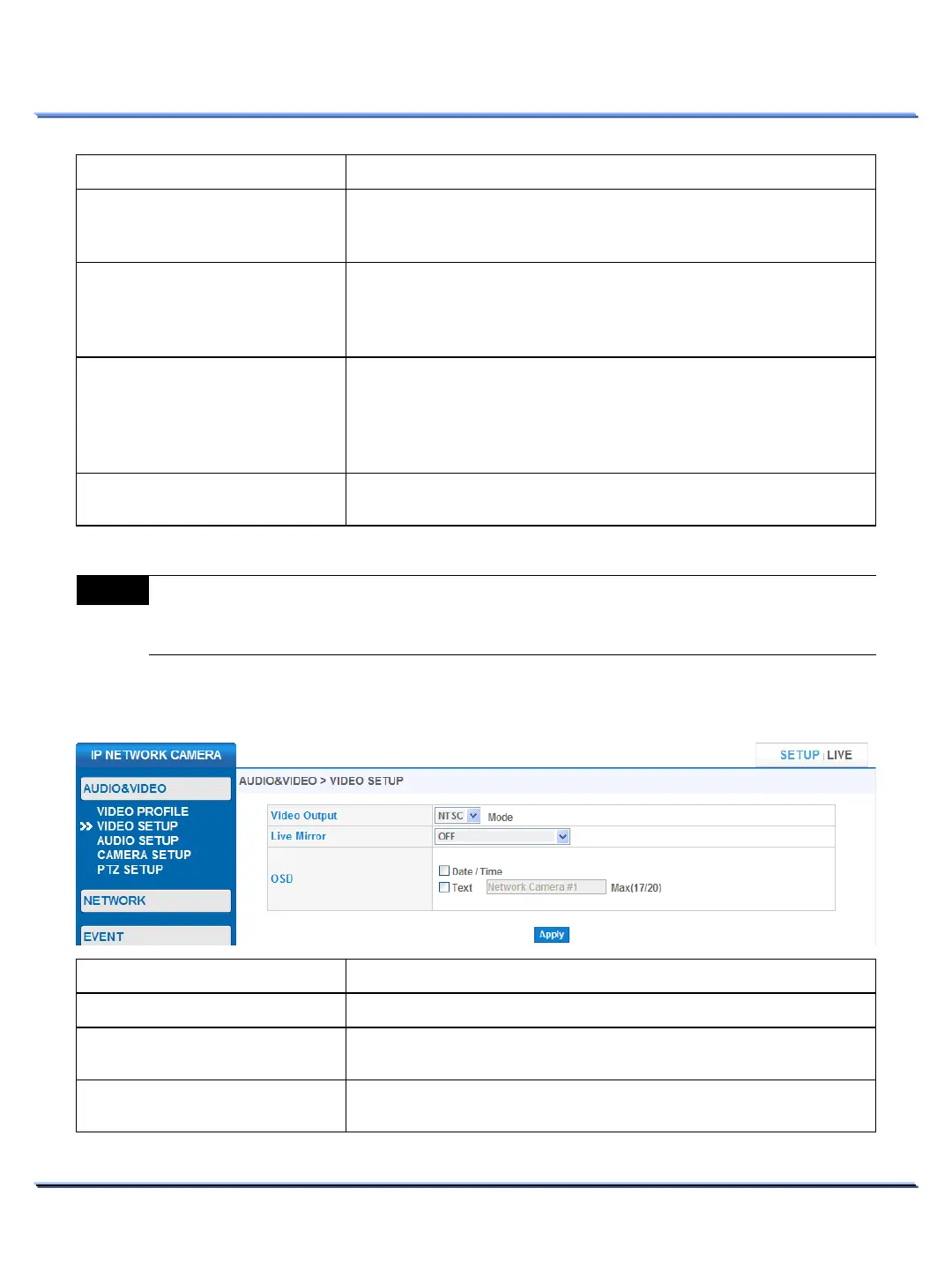

• VIDEO SETUP
Item Description
Video Output
Switch CVBS analog output between
NTSC and PAL.
Live Mirror
Mirror/Flip the streaming output.
Options: OFF, HORIZONTAL, VERTICAL, HORIZONTAL+VERTICAL
OSD
On
-Screen-Display that will be embedded to the streaming.
Date/Time and custom text up to 20 characters can be embedded.
