User Guide
4. Management

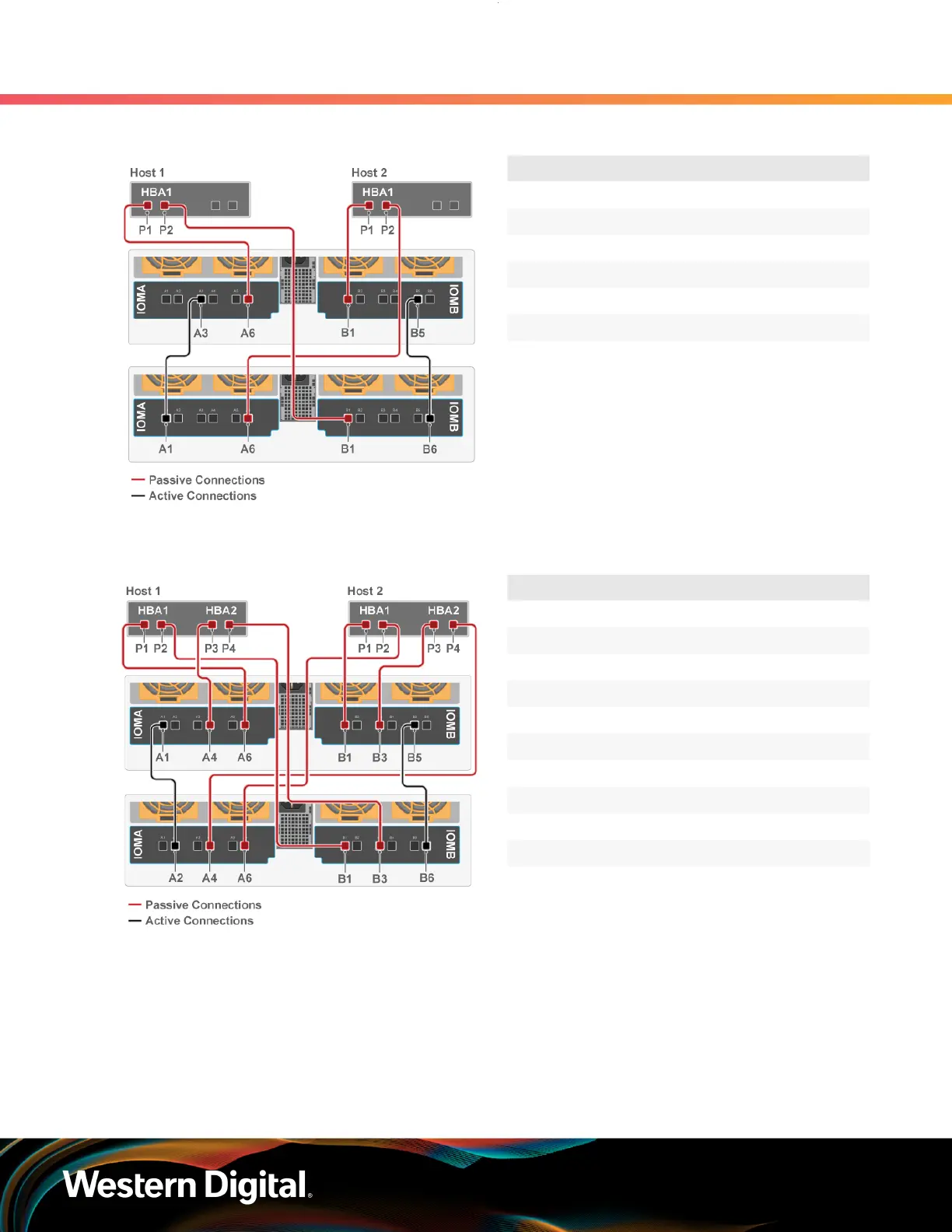

4.9 Daisy Chaining
Two Enclosures: Two Hosts with One HBA
Source Device Destination Device
Host1: P1 Enclosure1: IOMA, A6
Host1: P2 Enclosure2: IOMB, B1
Host2: P1 Enclosure1: IOMB, B1
Host2: P2 Enclosure2: IOMA, A6
Enclosure1: IOMA, A3 Enclosure2: IOMA, A1
Enclosure1: IOMB, B5 Enclosure2: IOMB, B6
Two Enclosures: Two Hosts with Two HBAs
Source Device Destination Device
Host1: P1 Enclosure1: IOMA, A6
Host1: P2 Enclosure2: IOMB, B1
Host1: P3 Enclosure1: IOMA, A4
Host1: P4 Enclosure2: IOMB, B3
Host2: P1 Enclosure1: IOMB, B1
Host2: P2 Enclosure2: IOMA, A6
Host2: P3 Enclosure1: IOMB, B3
Host2: P4 Enclosure2: IOMA, A4
Enclosure1: IOMA, A1 Enclosure2: IOMA, A2
Enclosure1: IOMB, B5 Enclosure2: IOMB, B6
228
