4.9 Daisy Chaining

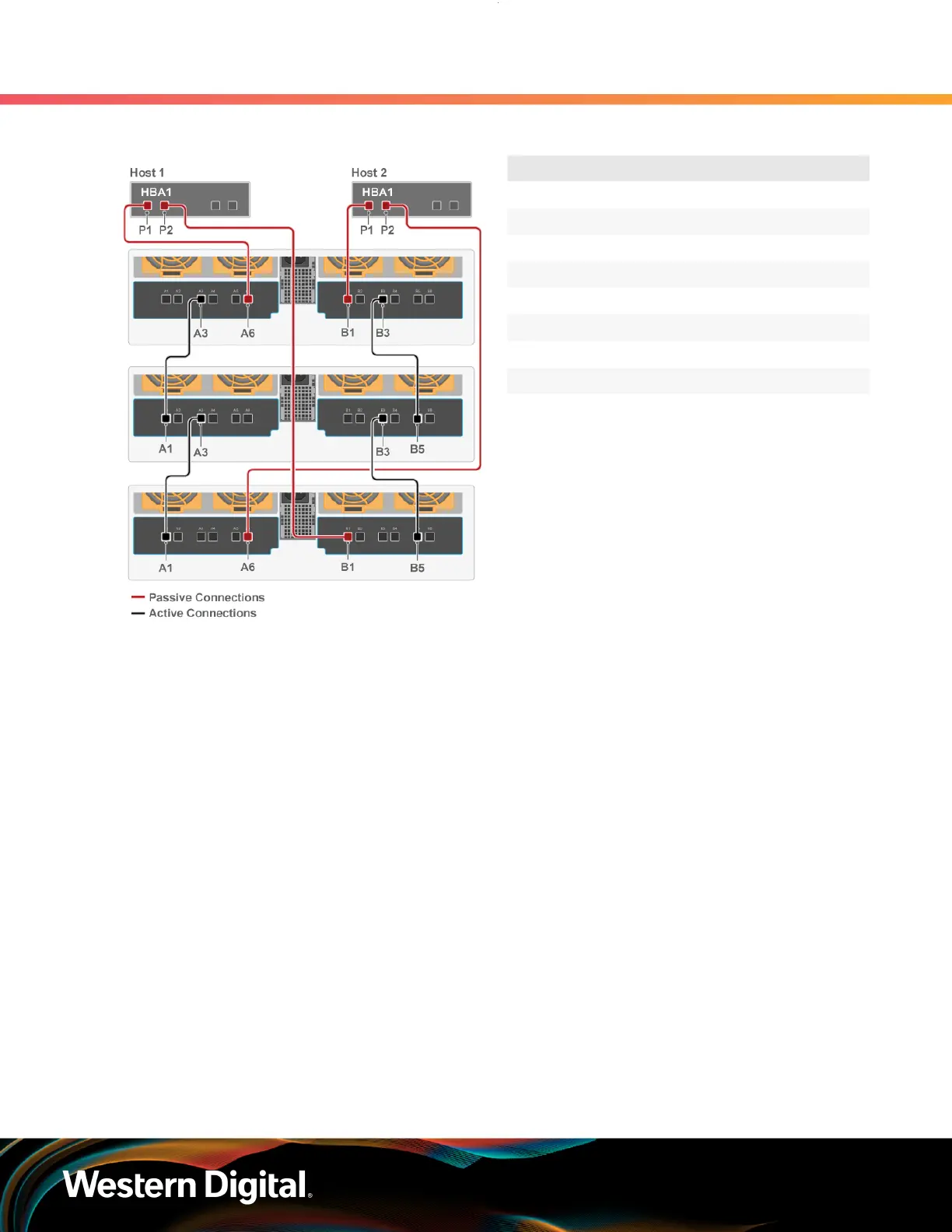

Three Enclosures: Two Hosts with One HBA
Source Device Destination Device
Host1: P1 Enclosure1: IOMA, A6
Host1: P2 Enclosure3: IOMB, B1
Host2: P1 Enclosure1: IOMB, B1
Host2: P2 Enclosure3: IOMA, A6
Enclosure1: IOMA, A3 Enclosure2: IOMA, A1
Enclosure2: IOMA, A3 Enclosure3: IOMA, A1
Enclosure1: IOMB, B3 Enclosure2: IOMB, B5
Enclosure2: IOMB, B3 Enclosure3: IOMB, B5
