User Guide
3. Support
3.4 Rear Fan Replacement

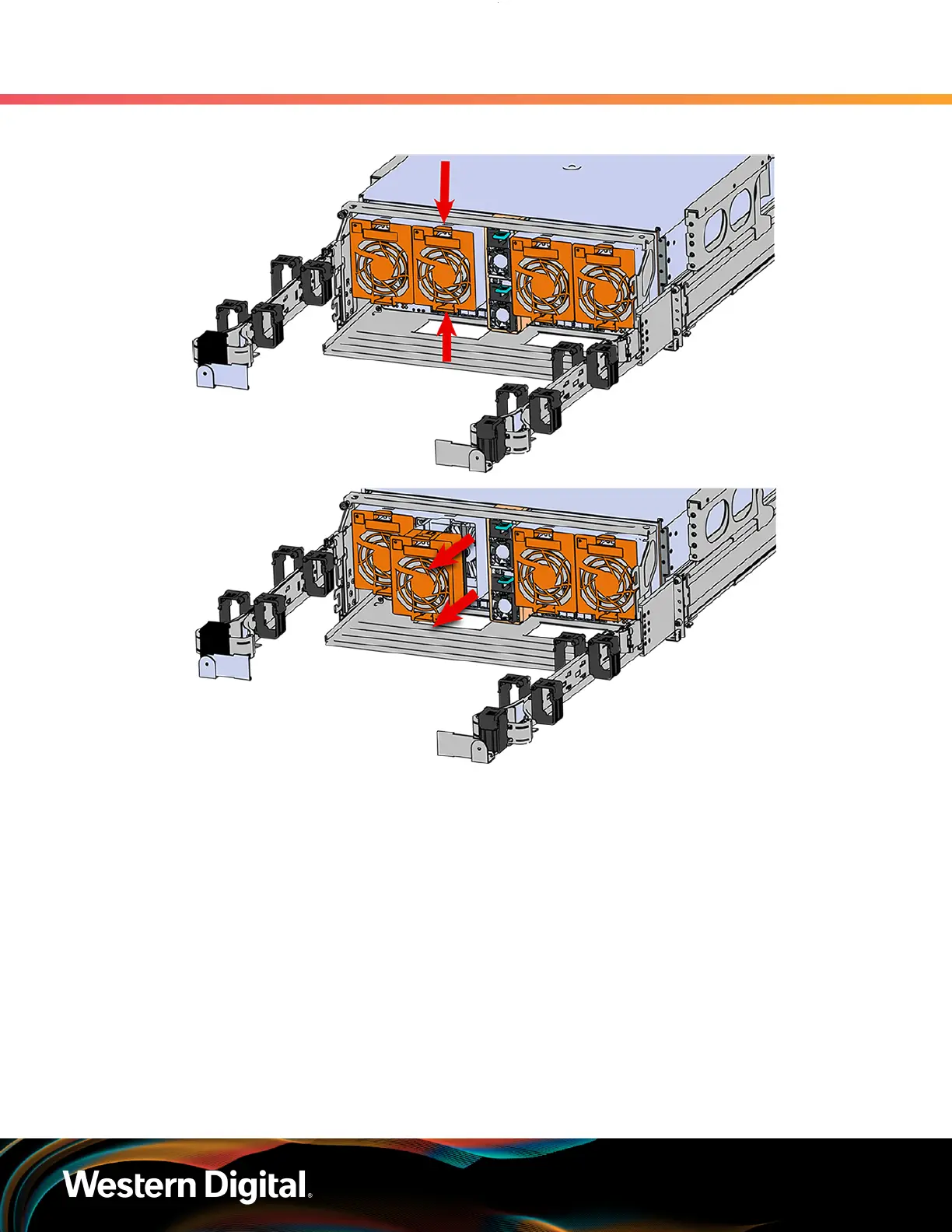

Figure 52: Uninstalling the Rear Fan
Step 3 : Install Rear Fan
a. Orient the rear fan as shown in the following image.
b.
Insert the rear fan into the housing as shown in the following image.
68
