Wheatstone D-5000 - Lower DB-25 Connector - Digital Outputs

page 4 – 5
D-5000 / May 2000
OUTPUT MODULES
Lower DB-25 Connector – Digital Outputs
Handles digital Audition and Utility outputs
Pin 8 – UTL2 AES Out SH
Pin 7 – UTL2 AES Out HI
Pin 20 – UTL2 AES Out LO
Pin 19 – AUD2 AES Out SH
Pin 18 – AUD2 AES Out HI
Pin 6 – AUD2 AES Out LO
Pin 16 – UTL1 AES Out SH
Pin 15 – UTL1 AES Out HI
Pin 3 – UTL1 AES Out LO
Pin 2 – AUD1 AES Out SH
Pin 1 – AUD1 AES Out HI
Pin 14 – AUD1 AES Out LO

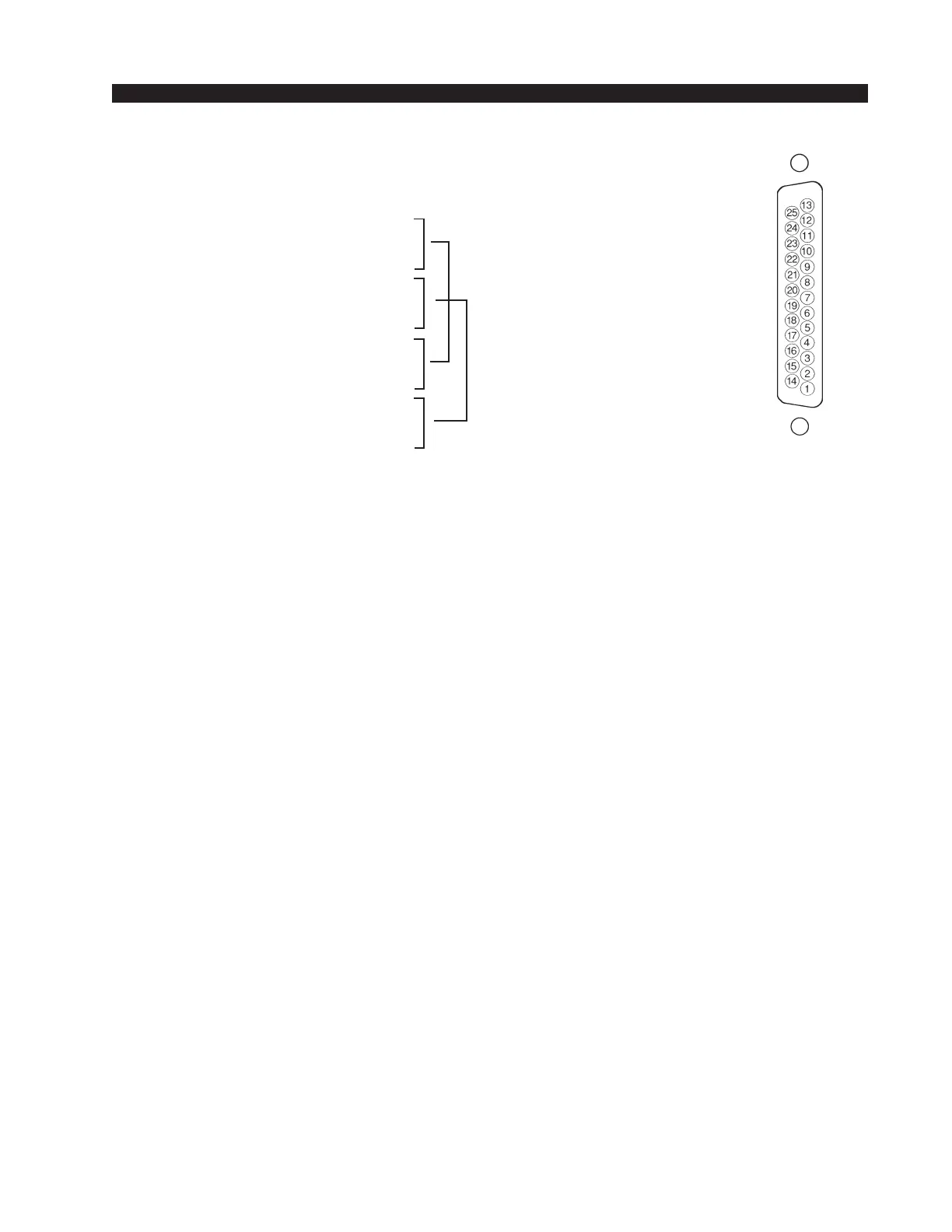

Typical DB-25
connector
D-5000 / Sep 2000
UTL1 & UTL2
Duplicate outputs
AUD1 & AUD2
Duplicate outputs
