METER OUTPUT MODULE
Internal Programming Options
There are no internal programming options on the MOD-600
module.
Hook-Ups
As stated before, the only user wiring into the MOD-600 module is
two external stereo line inputs (analog +4dBu balanced) on the module’s
LOWER DB-25 connector.
Pin 19 – Ext 1 Lt In SH
Pin 18 – Ext 1 Lt In HI
Pin 6 – Ext 1 Lt In LO
Pin 5 – Ext 1 Rt In SH
Pin 4 – Ext 1 Rt In HI
Pin 17 – Ext 1 Rt In LO
Pin 16 – Ext 2 Lt In SH
Pin 15 – Ext 2 Lt In HI
Pin 3 – Ext 2 Lt In LO
Pin 2 – Ext 2 Rt In SH
Pin 1 – Ext 2 Rt In HI
Pin 14 – Ext 2 Rt In LO

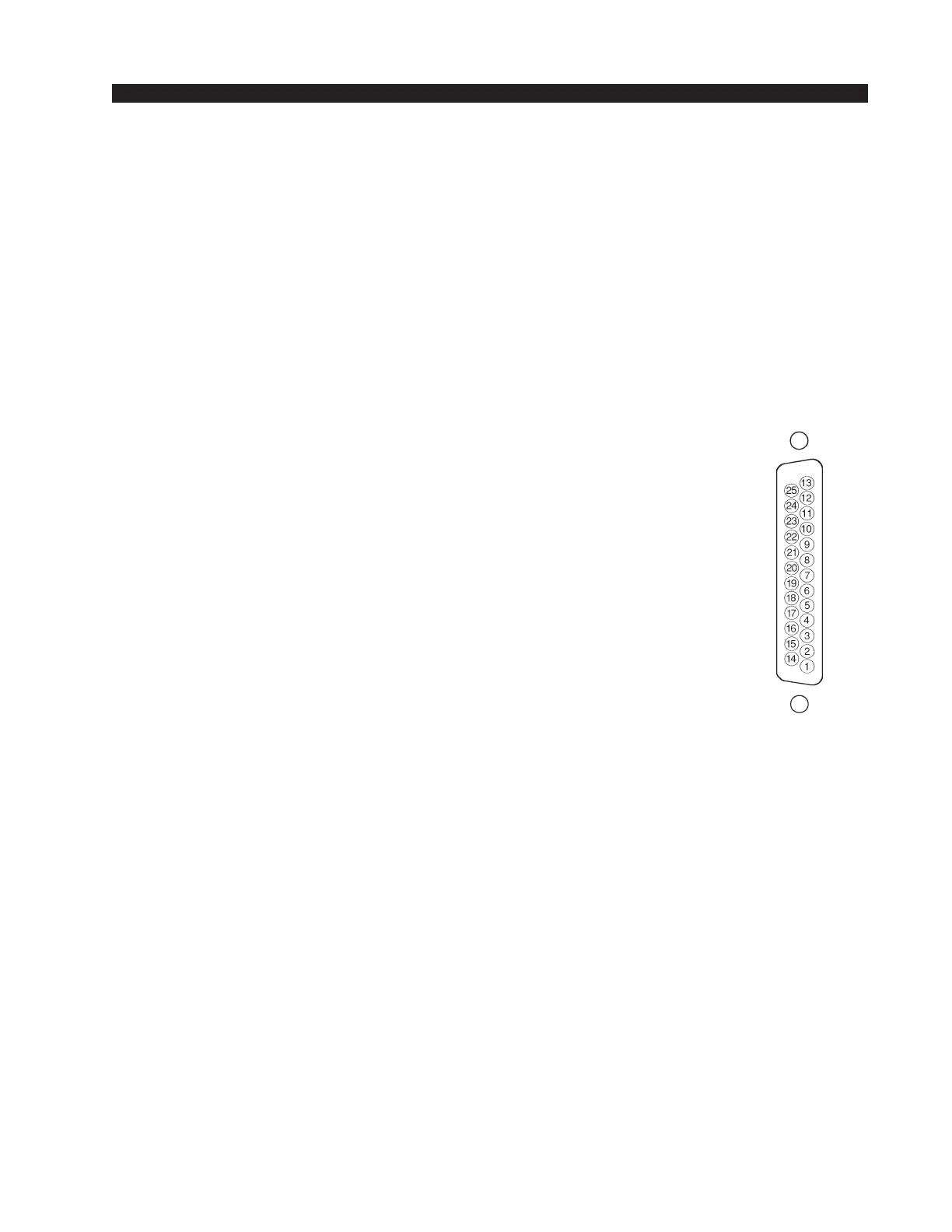

Typical DB-25
connector
