Wheatstone D-5000 - Digital Audio Inputs

page 11 – 4
D-5000 / May 2000
LINE PRESELECTOR MODULE
ANALOG AUDIO INPUTS 5-8:
Pin 25 – Line 5 Lt In SH
Pin 24 – Line 5 Lt In HI
Pin 12 – Line 5 Lt In LO
Pin 11 – Line 5 Rt In SH
Pin 10 – Line 5 Rt In HI
Pin 23 – Line 5 Rt In LO
Pin 22 – Line 6 Lt In SH
Pin 21 – Line 6 Lt In HI
Pin 9 – Line 6 Lt In LO
Pin 8 – Line 6 Rt In SH
Pin 7 – Line 6 Rt In HI
Pin 20 – Line 6 Rt In LO
Pin 19 – Line 7 Lt In SH
Pin 18 – Line 7 Lt In HI
Pin 6 – Line 7 Lt In LO
Pin 5 – Line 7 Rt In SH
Pin 4 – Line 7 Rt In HI
Pin 17 – Line 7 Rt In LO
Pin 16 – Line 8 Lt In SH
Pin 15 – Line 8 Lt In HI
Pin 3 – Line 8 Lt In LO
Pin 2 – Line 8 Rt In SH
Pin 1 – Line 8 Rt In HI
Pin 14 – Line 8 Rt In LO
DIGITAL AUDIO INPUTS 1-8:
Pin 25 – AES 1 In SH
Pin 24 – AES 1 In HI
Pin 12 – AES 1 In LO
Pin 11 – AES 2 In SH
Pin 10 – AES 2 In HI
Pin 23 – AES 2 In LO
Pin 22 – AES 3 In SH
Pin 21 – AES 3 In HI
Pin 9 – AES 3 In LO
Pin 8 – AES 4 In SH
Pin 7 – AES 4 In HI
Pin 20 – AES 4 In LO
Pin 19 – AES 5 In SH
Pin 18 – AES 5 In HI
Pin 6 – AES 5 In LO
Pin 5 – AES 6 In SH
Pin 4 – AES 6 In HI
Pin 17 – AES 6 In LO
Pin 16 – AES 7 In SH
Pin 15 – AES 7 In HI
Pin 3 – AES 7 In LO
Pin 2 – AES 8 In SH
Pin 1 – AES 8 In HI
Pin 14 – AES 8 In LO

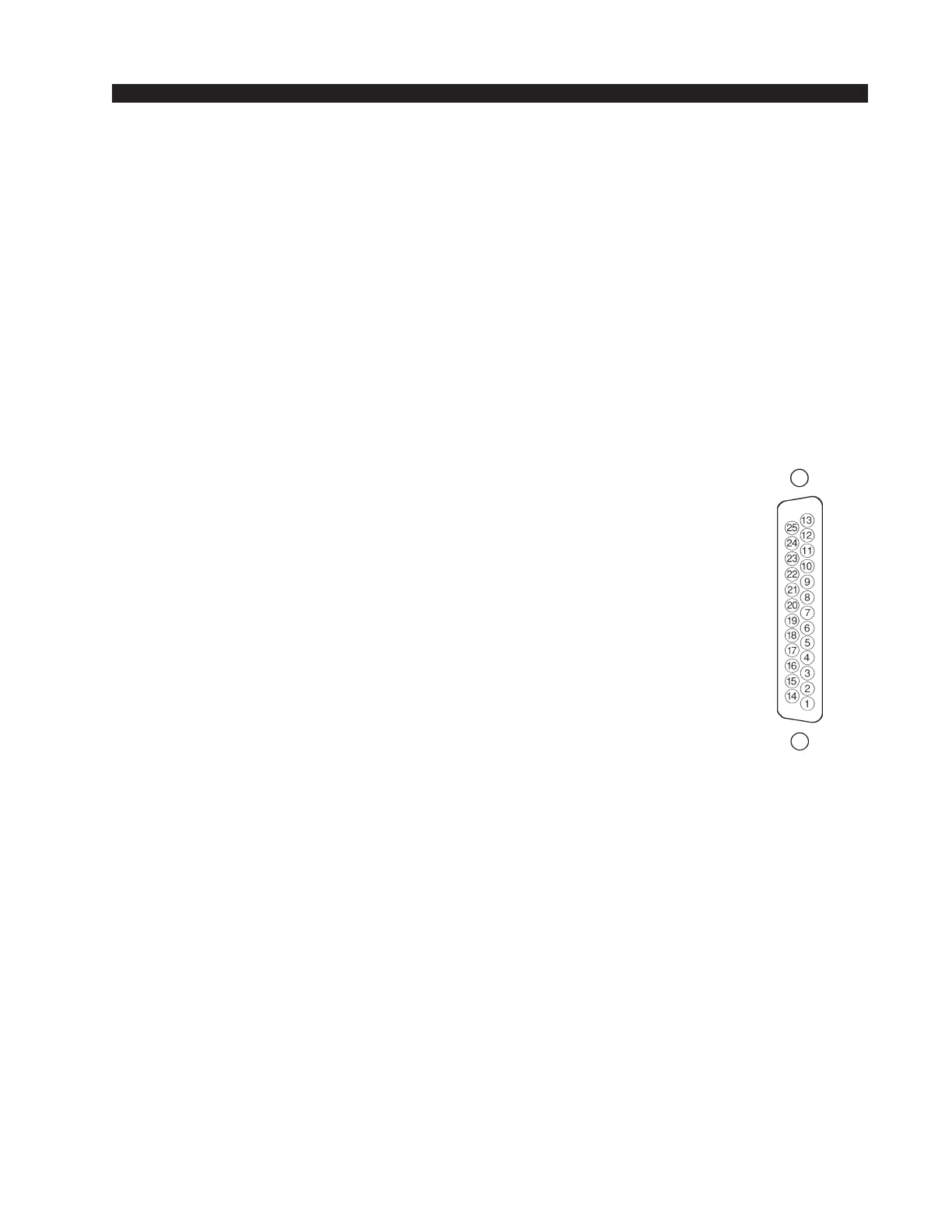

Typical DB-25
connector
