Wheatstone D-5000 - Lower DB-25 Connector - Audio

page 5 – 5
D-5000 / May 2000
CONTROL ROOM MODULE
Lower DB-25 Connector — Audio
This connector handles the module’s source select External Stereo and
External CUE inputs.
Pin 25 – Ext Cue In SH
Pin 24 – Ext Cue In HI
Pin 19 – Lt Ext 1 In SH
Pin 18 – Lt Ext 1 In HI
Pin 6 – Lt Ext 1 In LO
Pin 5 – Rt Ext 1 In SH
Pin 4 – Rt Ext 1 In HI
Pin 17 – Rt Ext 1 In LO
Pin 16 – Lt Ext 2 In SH
Pin 15 – Lt Ext 2 In HI
Pin 3 – Lt Ext 2 In LO
Pin 2 – Rt Ext 2 In SH
Pin 1 – Rt Ext 2 In HI
Pin 14 – Rt Ext 2 In LO

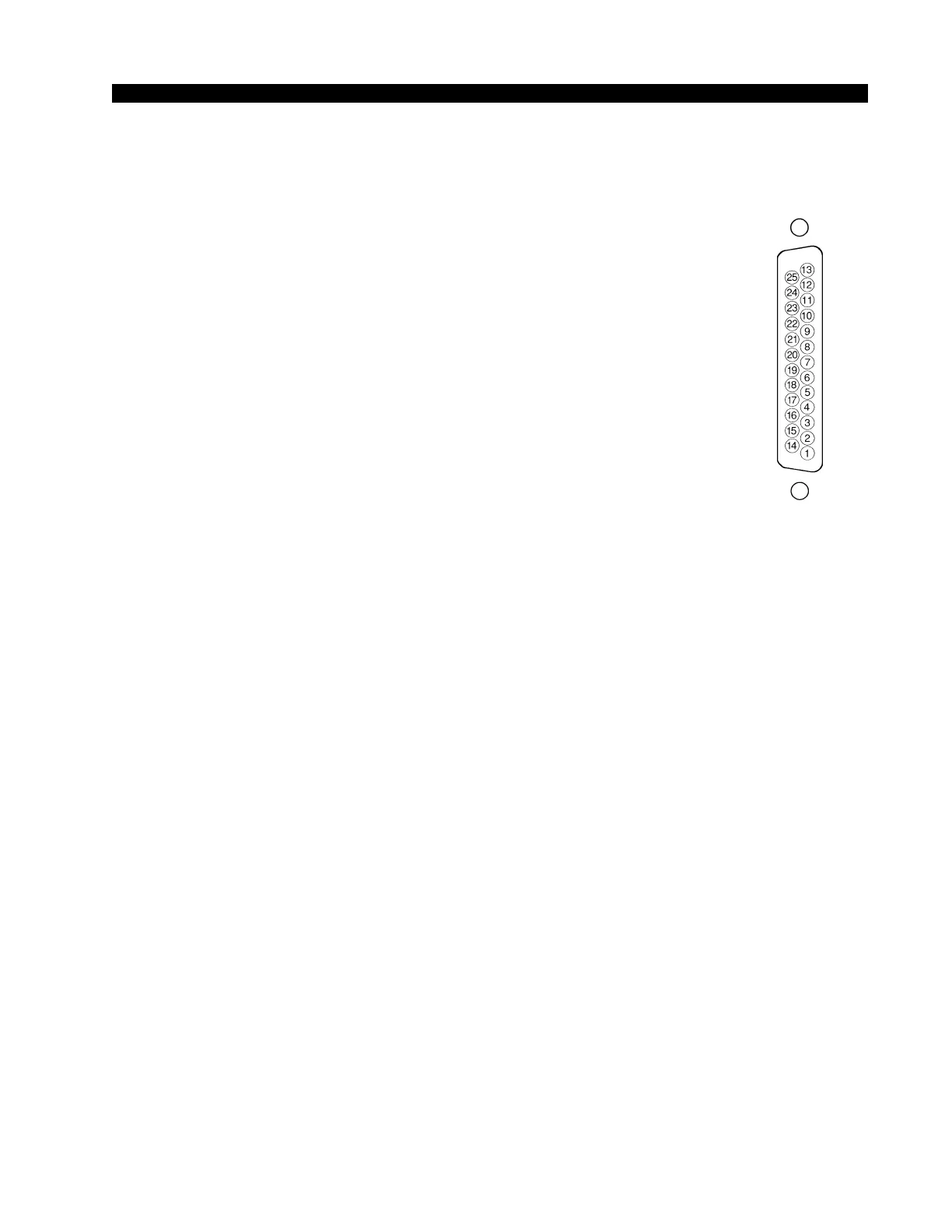

Typical DB-25
connector
