Wheatstone D-5000 - Outputs

page 11A – 4
D5000 / Aug 01
LINE PRESELECTOR MODULE

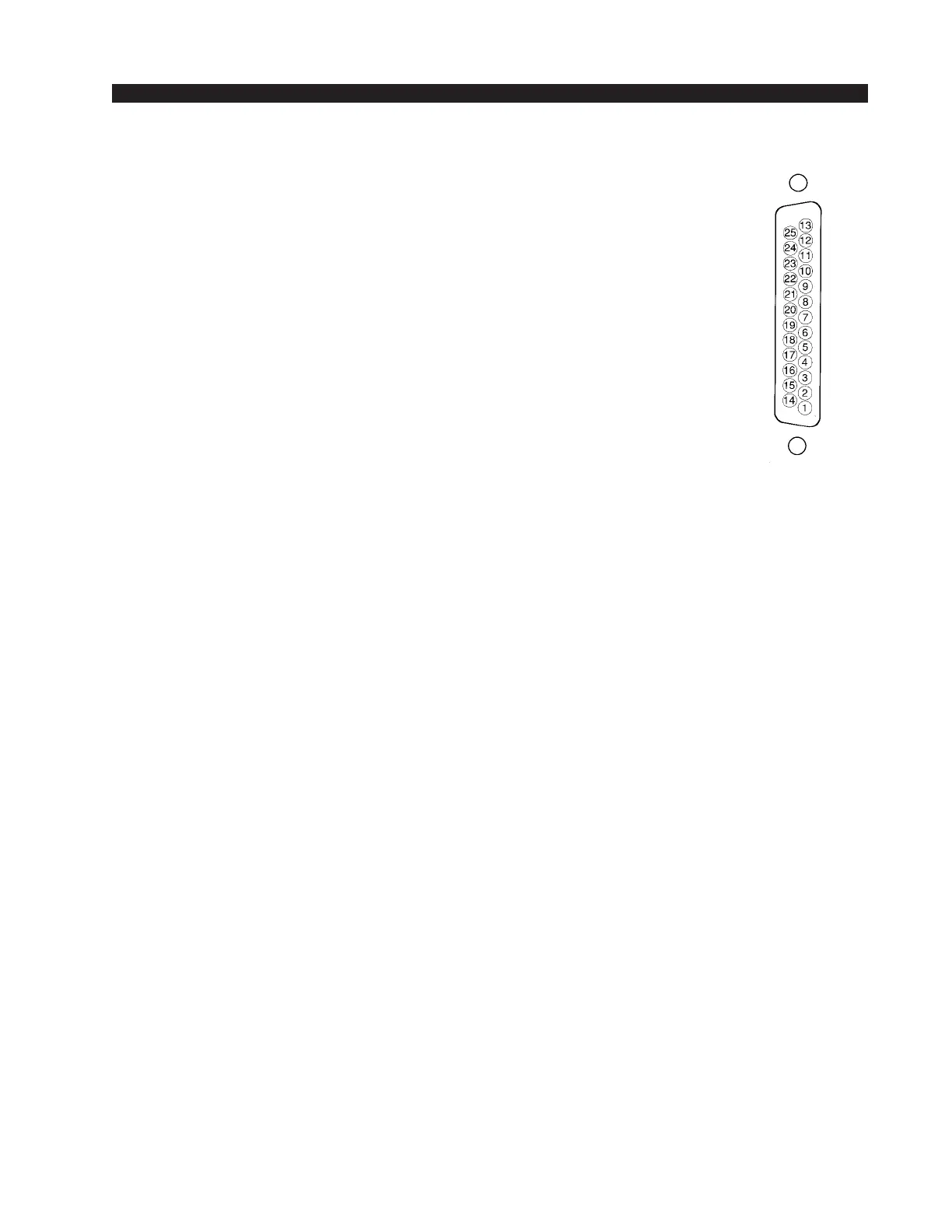

Typical DB-25
connector
Pin 19 – Line 7 Lt In SH
Pin 18 – Line 7 Lt In HI
Pin 6 – Line 7 Lt In LO
Pin 5 – Line 7 Rt In SH
Pin 4 – Line 7 Rt In HI
Pin 17 – Line 7 Rt In LO
LSA-600 Audio Outputs
Pin 16 – Line Lt Out SH
Pin 15 – Line Lt Out HI
Pin 3 – Line Lt Out LO
Pin 2 – Line Rt Out SH
Pin 1 – Line Rt Out HI
Pin 14 – Line Rt Out LO
