STUDIO CONTROL MODULE
Lower DB-25 Connector — Audio
This connector handles the module’s source select External Stereo
inputs. It also has a second set of studio outputs which are pre-level
control. All signals are +4dBu balanced analog stereo.
Pin 25 – Lt Studio 2 Pre Out SH
Pin 24 – Lt Studio 2 Pre Out HI
Pin 12 – Lt Studio 2 Pre Out LO
Pin 11 – Rt Studio 2 Pre Out SH
Pin 10 – Rt Studio 2 Pre Out HI
Pin 23 – Rt Studio 2 Pre Out LO
Pin 22 – Lt Studio 1 Pre Out SH
Pin 21 – Lt Studio 1 Pre Out HI
Pin 9 – Lt Studio 1 Pre Out LO
Pin 8 – Rt Studio 1 Pre Out SH
Pin 7 – Rt Studio 1 Pre Out HI
Pin 20 – Rt Studio 1 Pre Out LO
Pin 19 – Lt Ext 1 In SH
Pin 18 – Lt Ext 1 In HI
Pin 6 – Lt Ext 1 In LO
Pin 5 – Rt Ext 1 In SH
Pin 4 – Rt Ext 1 In HI
Pin 17 – Rt Ext 1 In LO
Pin 16 – Lt Ext 2 In SH
Pin 15 – Lt Ext 2 In HI
Pin 3 – Lt Ext 2 In LO
Pin 2 – Rt Ext 2 In SH
Pin 1 – Rt Ext 2 In HI
Pin 14 – Rt Ext 2 In LO

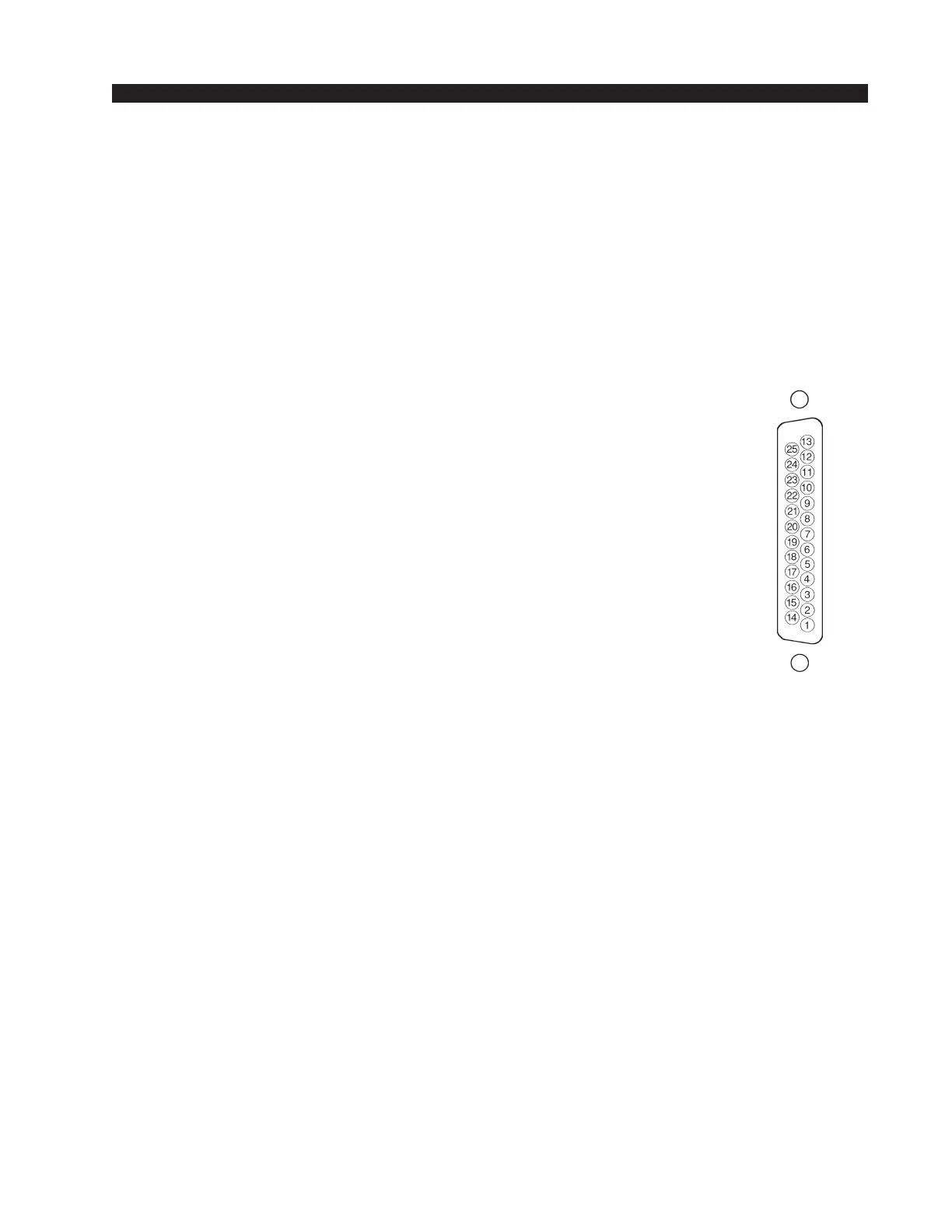

Typical DB-25
connector
