page 9 – 4
D-5000 / July 2000
V I R T U A L D I P S W I T C H
Program ID” is set to “1”. This is the standard setting (for networked
operations this DIP switch setting must be altered; consult Wheatstone
technical support). Leave the settings for Baud Rate and Handshaking as
shown in figure 2. Once the correct “COM” port is selected, click on “OK”
to accept these settings. Click on “Connect” under the “file” menu to
establish communications with the D-5000 console (figure 3). Verify that
the Console ID is set to “1” (standard setting).

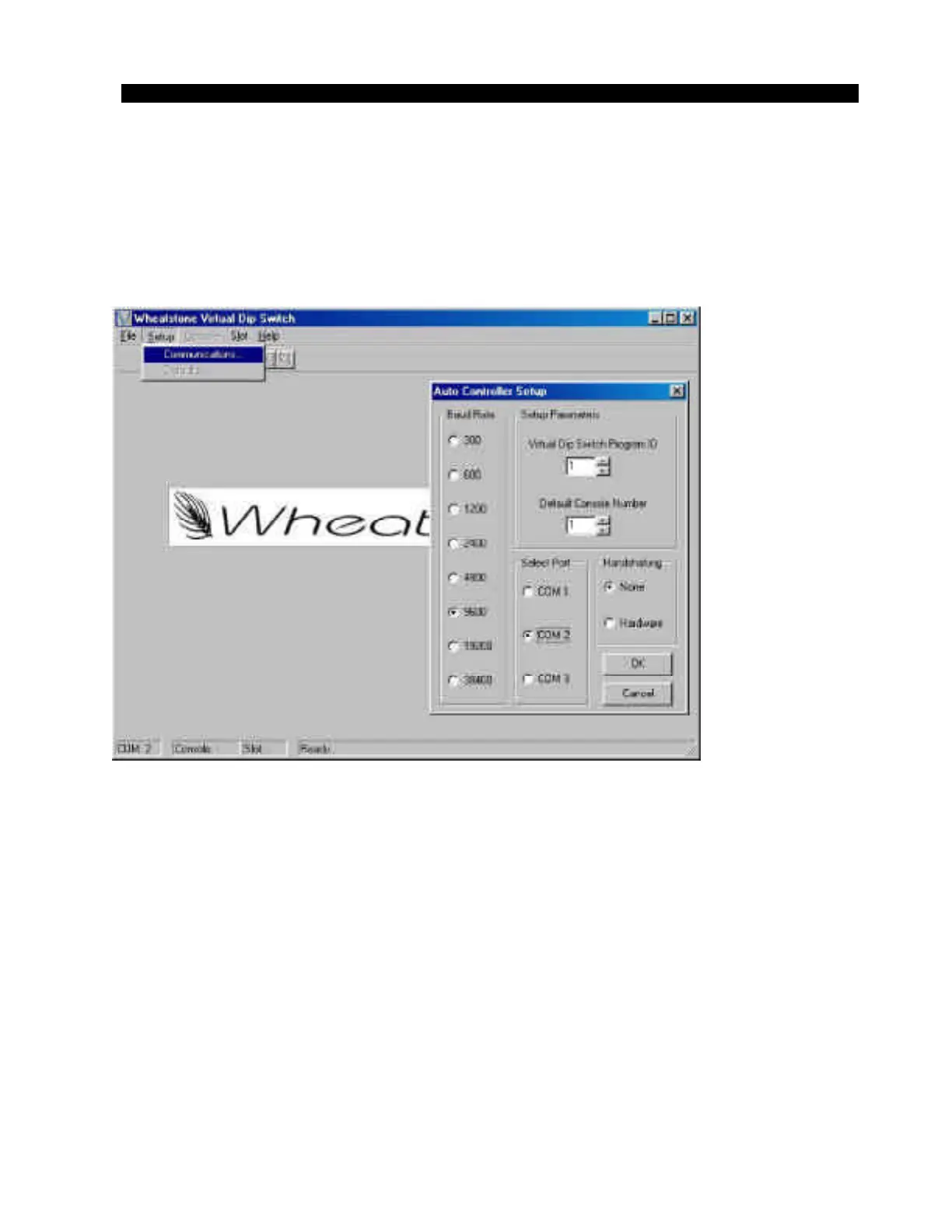

Figure 2
