3-3
DOOR LOCK
Prior to beginning a cycle, there is a door
lock routine of lock/unlock/relock; then cycle
begins. The door will remain locked until the
end of a cycle or approximately 2 minutes
after a power interruption.
NOTE: If power is interrupted prior to 2
minutes of operation the automatic door
unlocking mechanism may fail, and door will
remain locked until the power is restored or
the lock is manually opened by pulling down
on the manual release tab. (See page 4-16)
PRICING
After the door is opened following the
completion of a cycle, the display indicates the
cycle price (unless set for free operation). As
coins are dropped or debit inputs arrive, the
display will change to lead the user through
the initiation of a cycle.
FREE CYCLES
This is established by setting the cycle price to
zero. When this happens, ‘SELECT CYCLE’
will be displayed rather than a cycle price.
DEBIT CARD READY
This washer is debit card ‘cable’ ready. It
will accept a variety of debit card systems,
but does NOT come with a debit card reader.
Refer to the debit card reader manufacturer for
proper washer set-up. In models converted to
a Generation 1 debit card system, debit pulses
represent the equivalent of 1 coin (Coin 1).
NOTE: Requires a 60” communication Cable
to connect UIC to Card Reader mounted in a
metercase. Request this cable from the Card
Reader supplier.
DISPLAY
After the washer has been installed and
plugged in, the display will show ‘0 MINUTES’.
Once the washer has been plugged in and the
washer door opened and closed, the display
will show the price.
During a cycle the display will show the
approximate time remaining unless the
washer is going through a “Suds Removal
Routine.” During the routine the display will
alternate between the word “SudS” and the
time remaining in the routine. At the end of
the 5 minutes needed for this routine, the
display returns to the same time displayed
prior to entering it.
FOR SERVICE TECHNICIAN ONLY - DO NOT REMOVE OR DESTROY
PAGE 1
IMPORTANT
Electrostatic Discharge (ESD)
Sensitive Electronics
ESD problems are present everywhere. ESD may damage
or weaken the electronic control assembly. The new control
assembly may appear to work well after repair is finished,
but failure may occur at a later date due to ESD stress.
■
Use an anti-static wrist strap. Connect wrist strap to green
ground connection point or unpainted metal in the appliance.
-OR-
Touch your finger repeatedly to a green ground connection point
or unpainted metal in the appliance.
■
Before removing the part from its package, touch the anti-
static bag to a green ground connection point or unpainted
metal in the appliance.
■
Avoid touching electronic parts or terminal contacts; handle
electronic control assembly by edges only.
■
When repackaging failed electronic control assembly in anti-
static bag, observe above instructions.
BASIC OPERATION OF COMMERCIAL
CHW8990 FRONT LOAD WASHER
■
For additional information, see
www.WhirlpoolCommercialLaundry.com
GENERAL USER INFORMATION

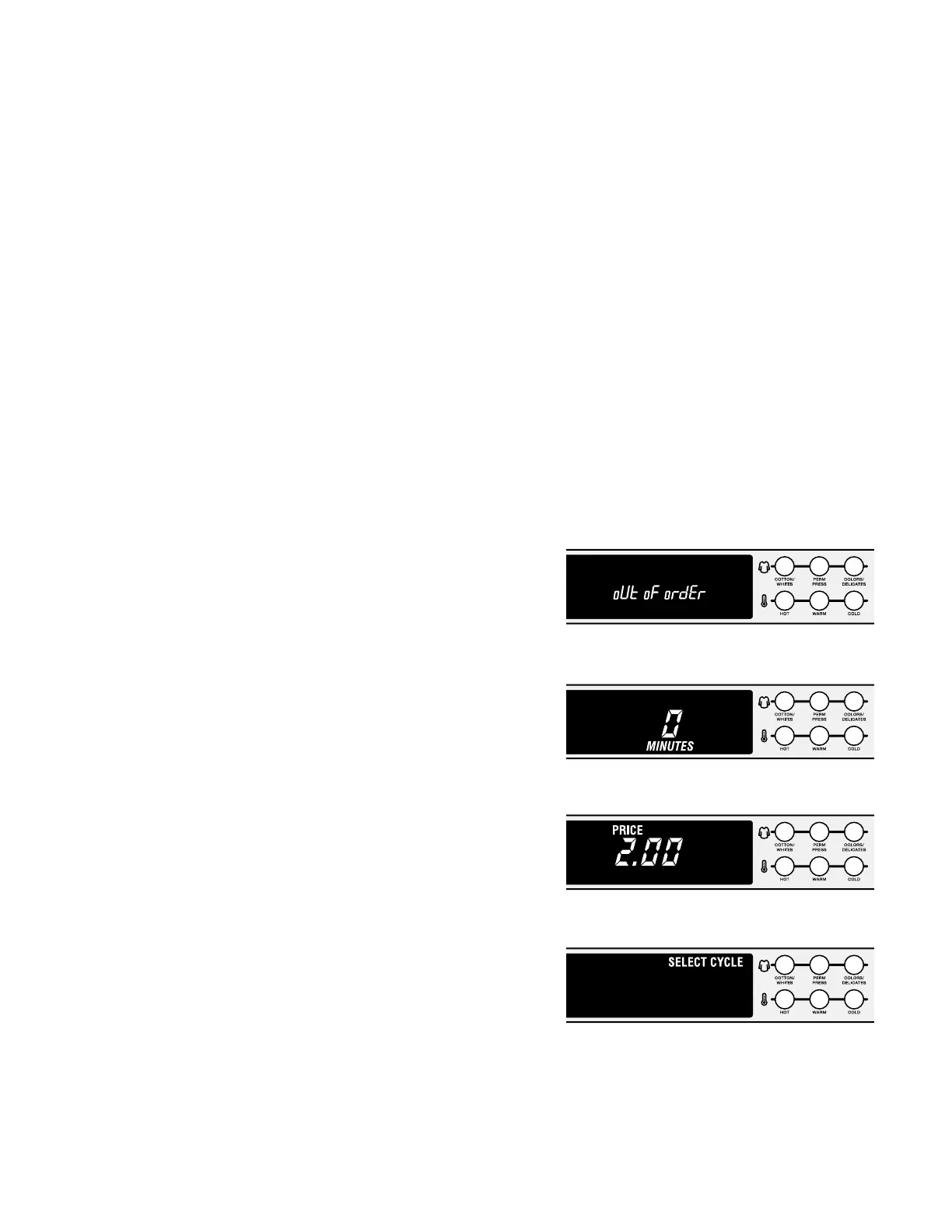

Scrolling ‘out of order’ message, followed by a failure
or diagnostic code, showing in display
This condition indicates the washer is inoperative.
‘0 Minutes’ showing in display
This condition indicates the washer cannot be operated. Coins
dropped or debit inputs during this condition will be stored in escrow
but cannot be used until normal operation is restored by opening
and closing the door. If a door switch has failed, it must be replaced
before normal operation can be restored.
Cold Start (initial first use)
Washer is programmed at the factory as follows:
■
11 minute wash period
■
3 rinses (extra rinse not enabled)
■
$1.75 wash price
Warm Start (after power failure)
A few seconds after power is restored, if a cycle was in progress
at the time of the power failure, ‘RESELECT CYCLE’ will flash
in the display, indicating the need for a key press to restart
the washer.
Door Lock
The door will be locked when the cycle starts. The door will remain
locked until the end of a cycle or approximately 2 minutes after a
power interruption.
Pricing
After the door is opened following the completion of a cycle,
the display indicates the cycle price (unless set for free operation).
As coins are dropped or debit inputs arrive, the display will change
to lead the user through the initiation of a cycle.
Free Cycles
This is established by setting the cycle price to zero. When this
happens, ‘SELECT CYCLE’ will appear rather than a cycle price.
Debit Card Ready
This washer is debit card ‘cable’ ready. It will accept a variety
of debit card systems, but does NOT come with a debit card reader.
Refer to the debit card reader manufacturer for proper washer
set-up. In models converted to a Generation 1 debit card system,
debit pulses represent the equivalent of one coin (coin 1).
Display
After the washer has been installed and plugged in, the display will
show ‘0 MINUTES’. Once the washer has been plugged in and the
washer door opened and closed, the display will show the vend price.
In washers set for free cycles, the display will flash ‘SELECT CYCLE’.
NOTE: Not displayed on washer as shown. Message scrolls
followed by the failure or diagnostic code.
