Whirlpool CHW9050 User Manual

4-7

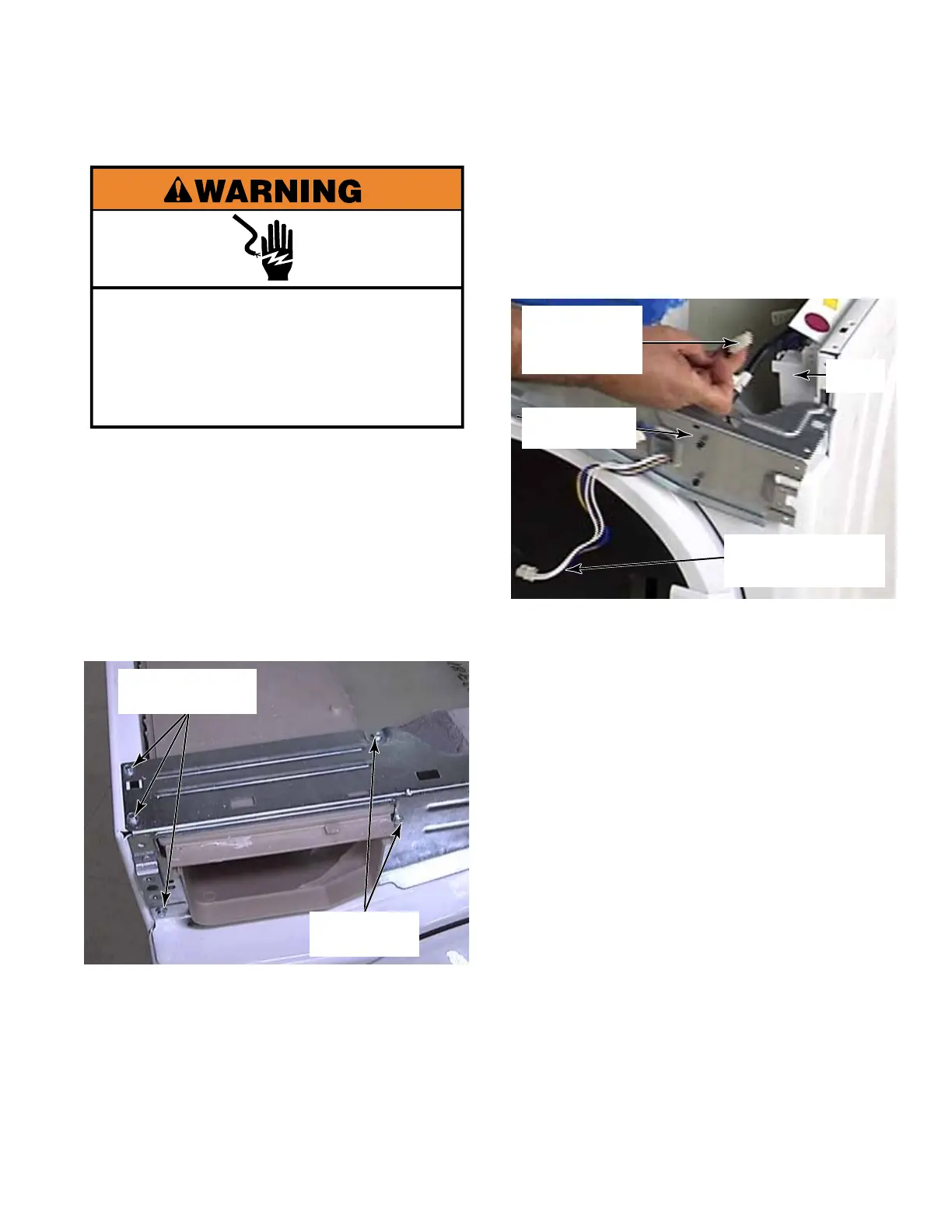

Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the control panel (See page 4-4).
4. Remove three T-20 screws at each end of
the bracket and two T-20 screws that attach
the bracket to the chemical dispenser.
CONTROL PANEL BRACKET
5. Disconnect the transformer primary wire
harness connector from near the CCU.
6. Push the free end of wires from the control
panel through the hole in the control panel
bracket and remove the bracket.
Transformer
Wire Harness
Connector
Free End Of Wires
From Coin Meter
CCU
Control Panel
Bracket
Three 1/4” Hex
Head Screws
Two T-20
Screws

Whirlpool CHW9050 Specifications

General

Brand	Whirlpool
Model	CHW9050
Type	Top Load Washer
Color	White
Wash Cycles	12
Steam Function	No
Energy Star Certified	Yes
Wash Action	Impeller
Delay Wash Option	Yes
Quick Wash Cycle	Yes
Deep Water Wash Option	Yes
Built-In Water Faucet	No
Water Level Settings	Automatic
