4-12
7. Press The locking tab and remove the
connector for the pink wires.
8. Pull the black and white wire connectors off
their spade terminals.
NOTE: Problems can occur with this washer
if the AC power is connected with reverse
polarity. When properly installed, the White
(neutral) wire connector should be toward the
front of the washer as viewed while the lter is
properly installed. Perform the RFI line lter
polarity test (See page 5-4).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Open the washer top (See page 4-3).
4. Remove the T-20 1/4” hex head screw. (See
first picture in next column)
5. Slide the RFI line filter to the left to release
the tabs in the slots.
6. Power goes into the RFI line filter through
the black (hot) wire and white (neutral) wire
connectors. Power goes out to the CCU
through the pink wires.

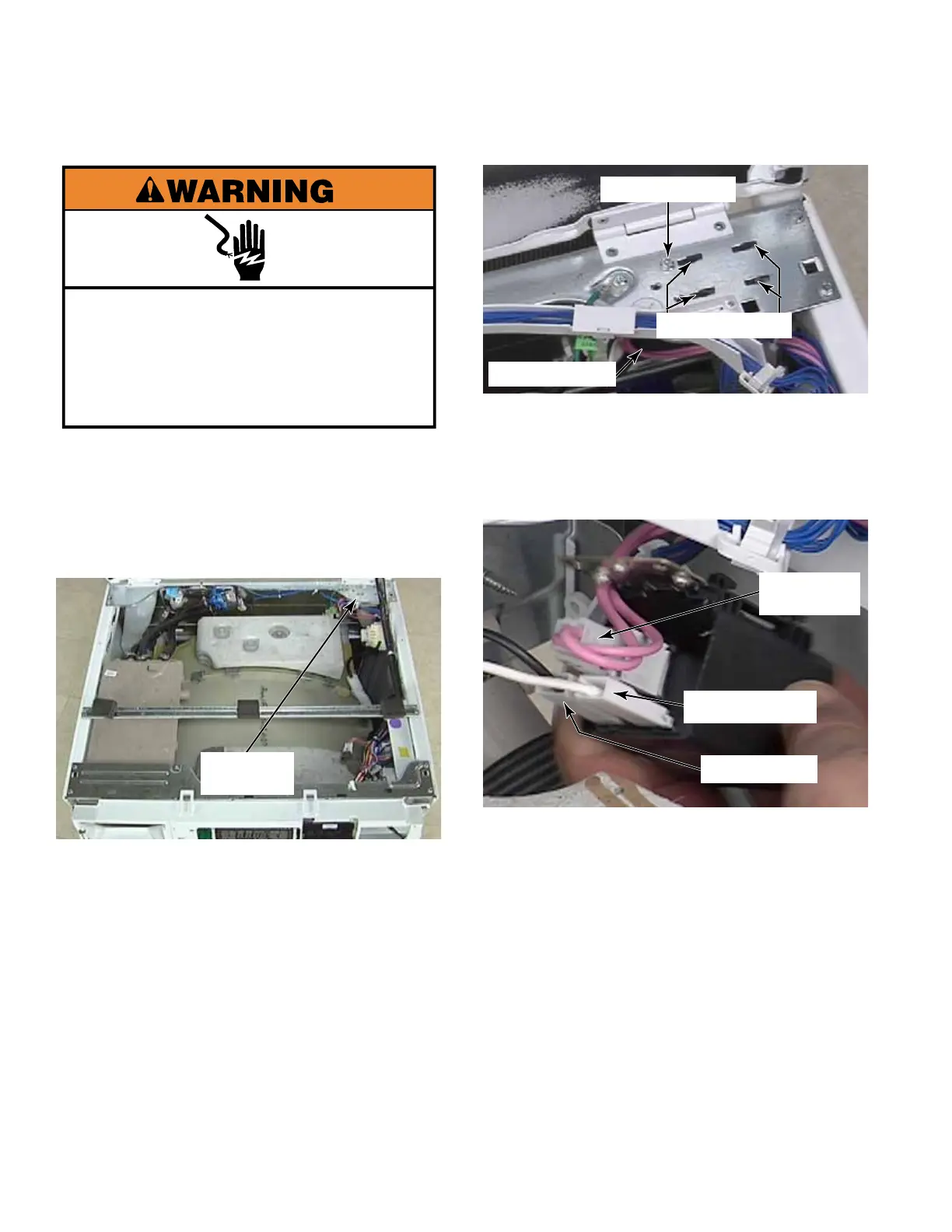

RFI LINE FILTER
T-20 Screw
RFI Line Filter
4 Tabs In Slots
Black (Hot)
Pink Wires
Out To CCU
White (Neutral)
RFI Line
Filter
To Next Page
