4-1
COMPONENT ACCESS

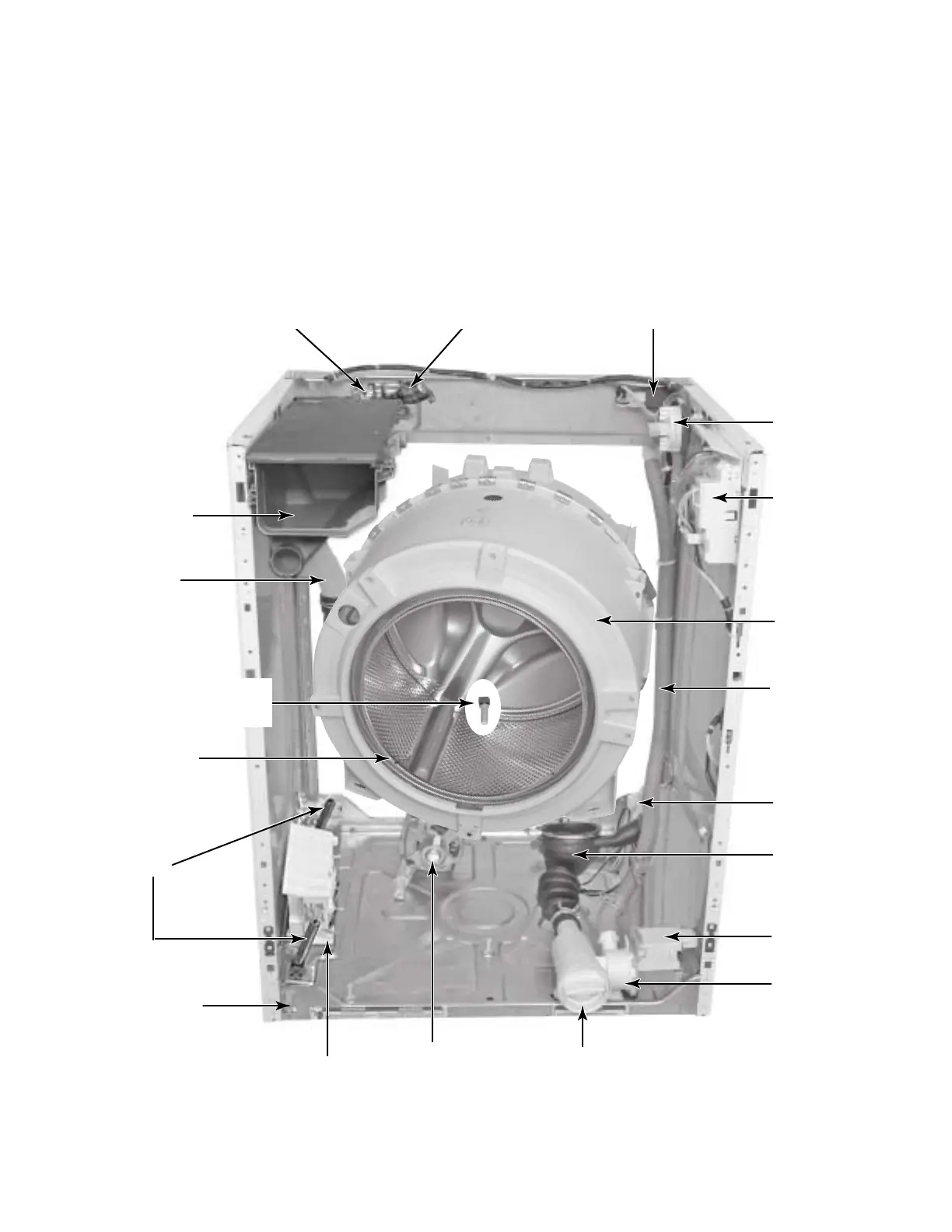

COMPONENT LOCATIONS
This section shows how to service each component within the Whirlpool Commercial HE Front
Loading Washers. The components and their locations are shown below.
4-1
COMPONENT ACCESS
COMPONENT LOCATIONS
This section shows how to service each component within the Whirlpool Commercial Front
Loading Washers Model 8990. The components and their locations are shown below.
RFI Line Filter
Rear Panel
Ground Switch
Tub-To-Pump
Hose
Front Panel
Ground Switch
Drive Motor
2 of 3 Air Gap
Dampers
Spin Basket
Temperature Sensor:
(On rear of outer tub)
Chemical
Dispenser
& Assembly
Dual Cold Water
Inlet Valve
Single Hot Water
Inlet Valve
Not Shown:
Key pad Assembly,
User Interface Control
Transformer and
Door Latch Assembly
Central
Control Unit
Pressure
Switch
Pump-To-Drain
Hose
Vent Tube
Motor Control
Unit
Outer Tub
Assembly
Drain Pump
Filter
Drain Pump
Motor
Drain Pump

Whirlpool CHW9050 Specifications

General

Brand	Whirlpool
Model	CHW9050
Type	Top Load Washer
Color	White
Wash Cycles	12
Steam Function	No
Energy Star Certified	Yes
Wash Action	Impeller
Delay Wash Option	Yes
Quick Wash Cycle	Yes
Deep Water Wash Option	Yes
Built-In Water Faucet	No
Water Level Settings	Automatic
