Whirlpool CHW9050 User Manual

4-9

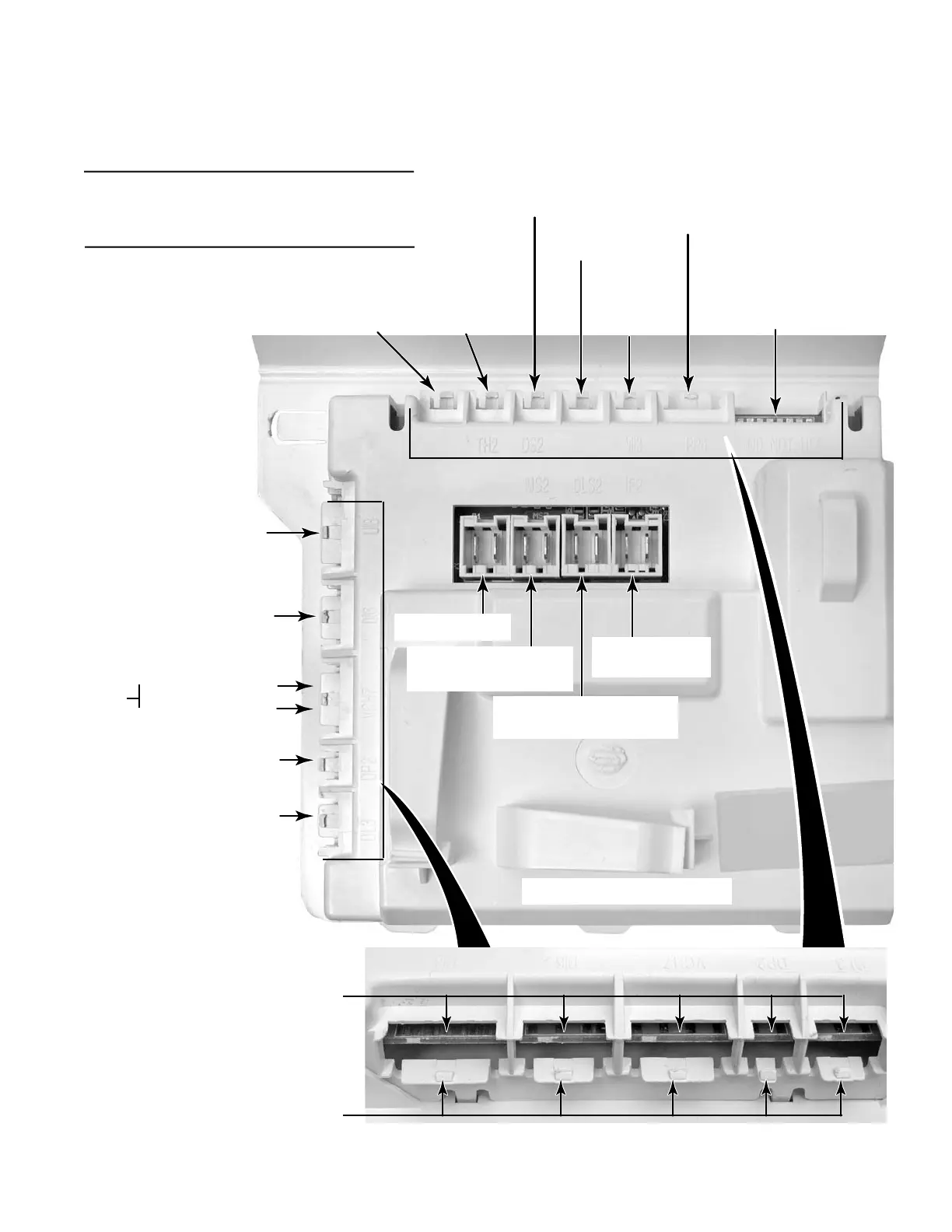

CCU CONNECTIONS
4-9
4-9
CCu COnneCTiOnS
S
e
riel Port
Software
Programming
Port
PR6 - Pressure Switch
6 BU Wires
D
S2 - Door Switch
2 BU Wires
Blue Stripe
4 BU Wires
RD Stripe
DP2 - Drain Pump
2 BK Wires
BK Stripe
DL3 - Door Lock
3 BK Wires
GN Stripe
4 BU Wires
BU Stripe
TH2 - Temp Sensor
2 BK Wires
No Stripe
MI3
3 BU Wires
MS2 - Drive Motor
WH Stripe
DLS2 - Door Lock Switch
IF2 - Line Filter
(2 Pink Wires)
Board Edge Connectors
Connector Locking Tabs
CENTRAL CONTROL UNIT
Not Used
MCU Interface
HE2 - Wax Moto
r
Not Used
User Interface
MS2-MCU
(Drive Motor Power)
3 BK Wires
GN Stripe
DI6 -
Hot Water Inlet #1
VCH7
- Cold Water Inlet 2
- Cold Water Inlet #3
DL3''-'''Doorq***** Lock ''''Sol'%enoi%%d
(L1 is on the right)
CCU CONNECTIONS
Make sure connectors are rmly seated
onto the circuit board edge, and that the
locks are properly engaged.

Whirlpool CHW9050 Specifications

General

Brand	Whirlpool
Model	CHW9050
Type	Top Load Washer
Color	White
Wash Cycles	12
Steam Function	No
Energy Star Certified	Yes
Wash Action	Impeller
Delay Wash Option	Yes
Quick Wash Cycle	Yes
Deep Water Wash Option	Yes
Built-In Water Faucet	No
Water Level Settings	Automatic
