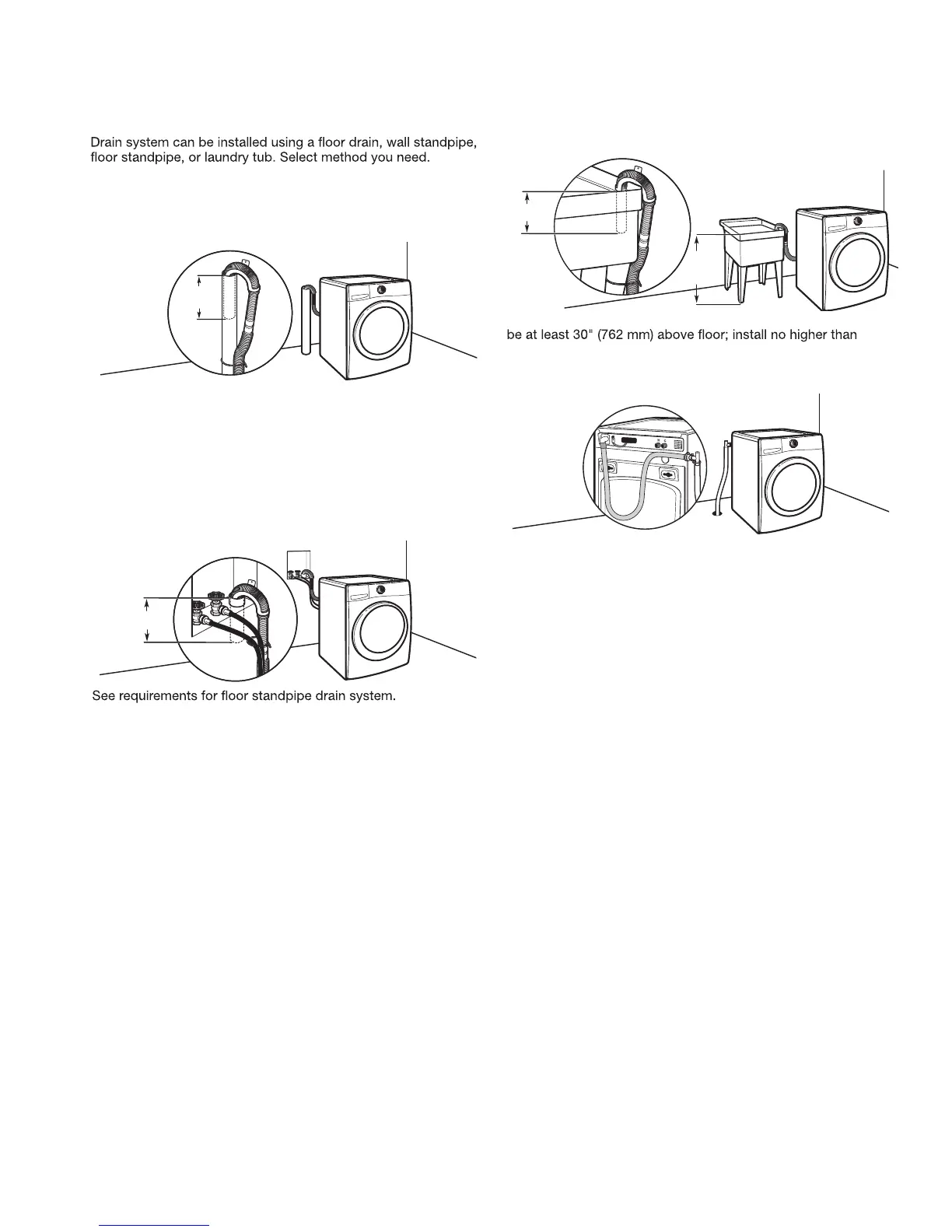

Wall standpipe drain system
Laundry tub drain system
4
1
/2"
(113 mm)
Floor standpipe drain system
4
1
/2"
(113 mm)
30"
(762 mm)
min.
4
1
/2"
113 mm)
Floor drain system
DRAIN SYSTEM
IMPORTANT: To avoid siphoning, only 4.5" (113 mm) of drain
hose should be inside standpipe. Always secure drain hose with
beaded �e strap.
