2. For the Installer

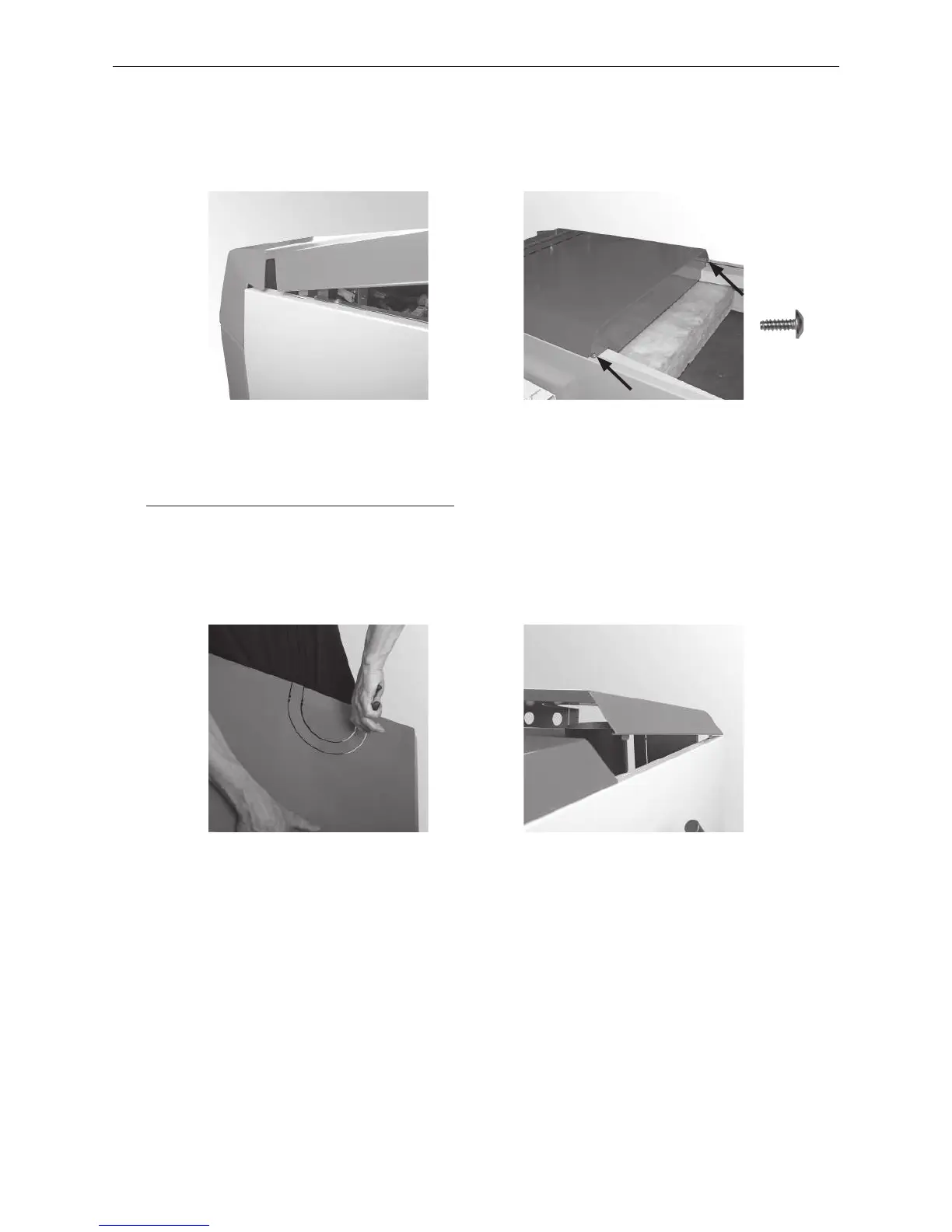

2.4.23 Mounting the front boiler cover
– Hook the front boiler cover into the side panels (Fig. 52) and attach at rear with 2 self-tapping screws – Fig. 53.
Fig. 52 Hinging in boiler cover Fig. 53 Securing boiler cover in 2 places
2 x
2.4.24 Mounting the rear boiler cover
– If no adapter for the flue gas blower (accessories) is being used, break off the cut-out at the rear of the boiler
cover – Fig. 54. large cut-out = exhaust pipe insulated
small cut-out = exhaust pipe not insulated
do not break off = adapter for flue connection installed
– Hook the rear boiler cover into the slot provided on the side panel cladding – Fig. 55.
Fig. 54 Punching out the rear boiler cover Fig. 55 Hooking in the rear boiler cover
