2. For the Installer
2.3.16 Installing insulation for the rear panel

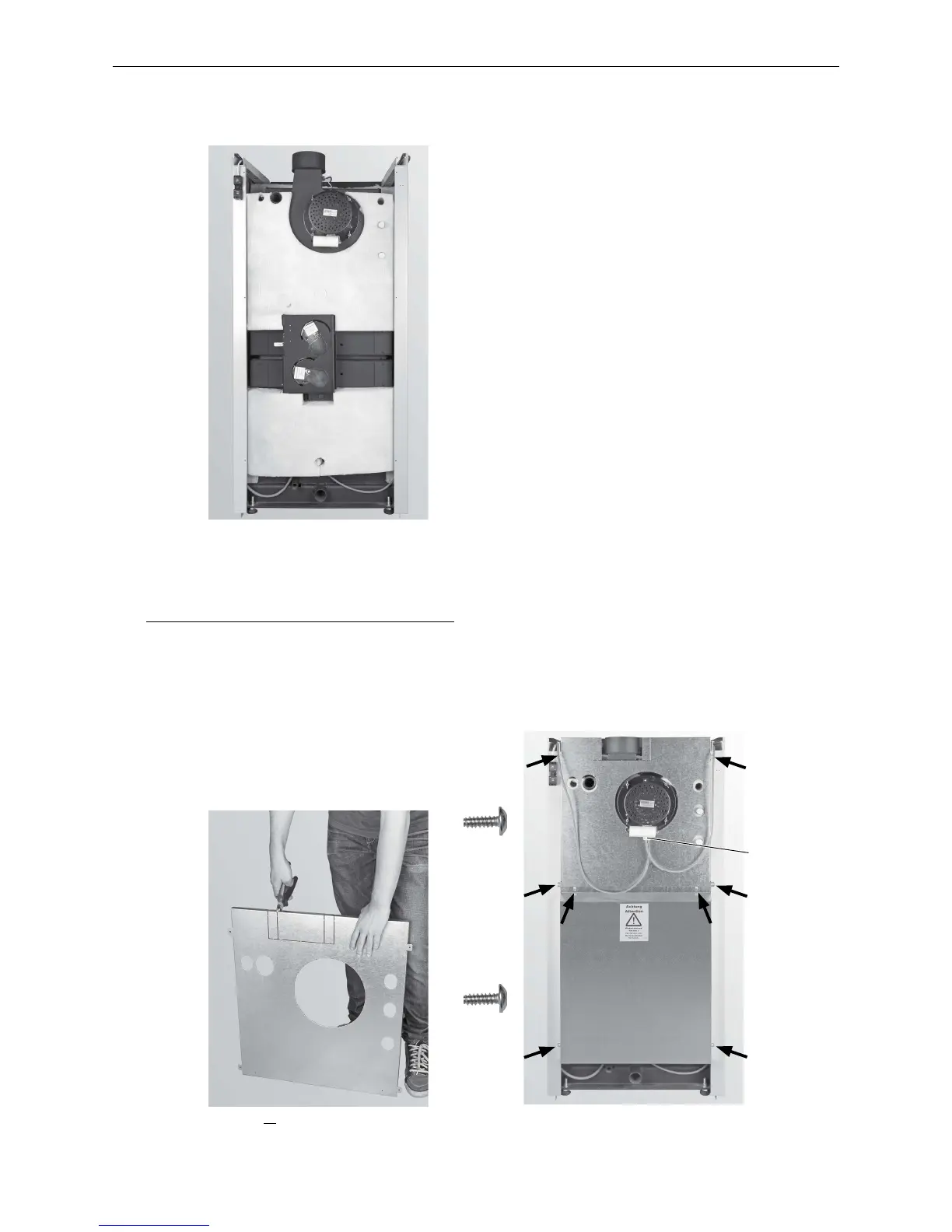

– Install insulation on top and bottom as shown in Fig.44.
Fig. 44 Installing insulation on the rear panel
Fig. 45 If no adapter for the flue connection is be-
ing used, break off the cut-out
2.3.17 Installing the rear panels
– If no adapter for the flue gas blower (accessories) is being used, break off the cut-out at the top of the back
panel – Fig. 45. large cut-out = exhaust pipe insulated
small cut-out = exhaust pipe not insulated
do not break off = adapter for flue connection installed
– Fasten the rear panel at top and bottom with 4 screws each – Fig. 46.
– Connect the blower plug to the flue gas blower and secure cable at side with cable ties – Fig. 46.
Fig. 46 Fitting the rear panels
4 each of
4 each of
Blower plugs
