Windhager LogWIN Klassik - Installing the Cladding Door

28
2. For the Installer
– Press 2 magnetic catches top/bottom into the side panel to align with the door catch side – Fig. 59.
– Install 2 magnet retainers top/bottom in the cladding door with 2 self-tapping screws each – Fig. 59.
Note!
The cladding door and the boiler doors are designed for door catches on either the left or right.
Standard delivery always includes door catches on the left. The catches on the cladding door and
boiler doors must be on the same side.

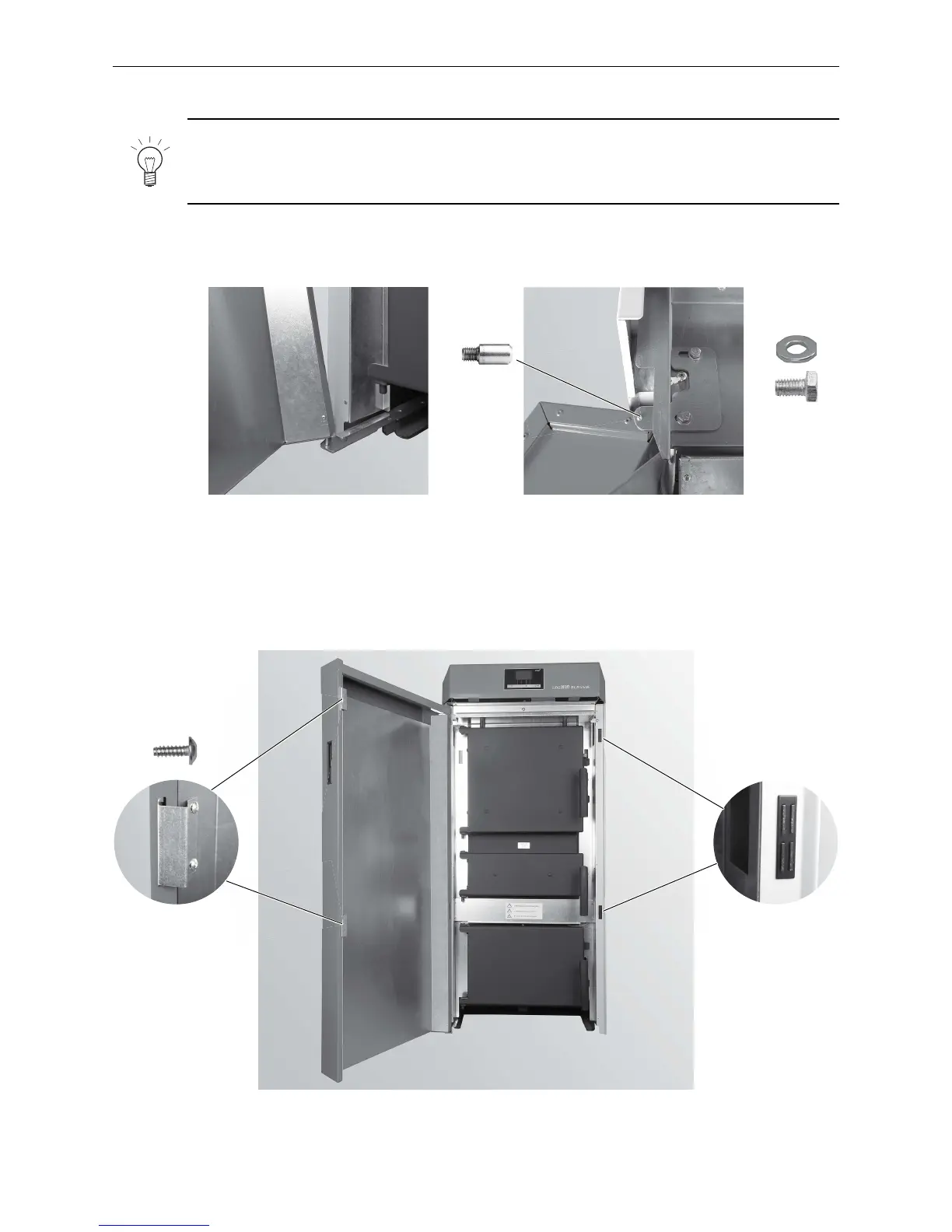

Fig. 57 Lower cladding door on door hinge
Fig. 58 Upper cladding door with door hinge
2.3.21 Installing the cladding door
Fig. 59 Screw the hinge into the cladding door with 2 self-tapping screws on each
side, press 2 magnetic catches into place
2 each of
Hook the cladding door in at the upper and lower door hinges (Fig. 57) and fasten the upper door hinge with
2washers and M6x10 hexagon screws – Fig. 58.
2 each of
1 x
M6x10
