2. For the Installer
2.3.13 Installing the thermocontrol sensor
– Route the thermocontrol sensor (green cable) at the front of the right side panel down and feed through –
Fig.35, 36. But first bend the cut-out (feed-through) at the bottom of the side panel out of the way.
– Insert the sensor over the ash door in the front and into the protective tube; hook the spring in place – Fig.37,38.
Information!
Pull the protruding cable from the thermocontrol sensor back into the side panel or control panel.
The cable may not hang out in order to keep it from becoming caught in the ash door.
– Secure the thermocontrol sensor cable to the side panel with a cable tie – Fig. 38.

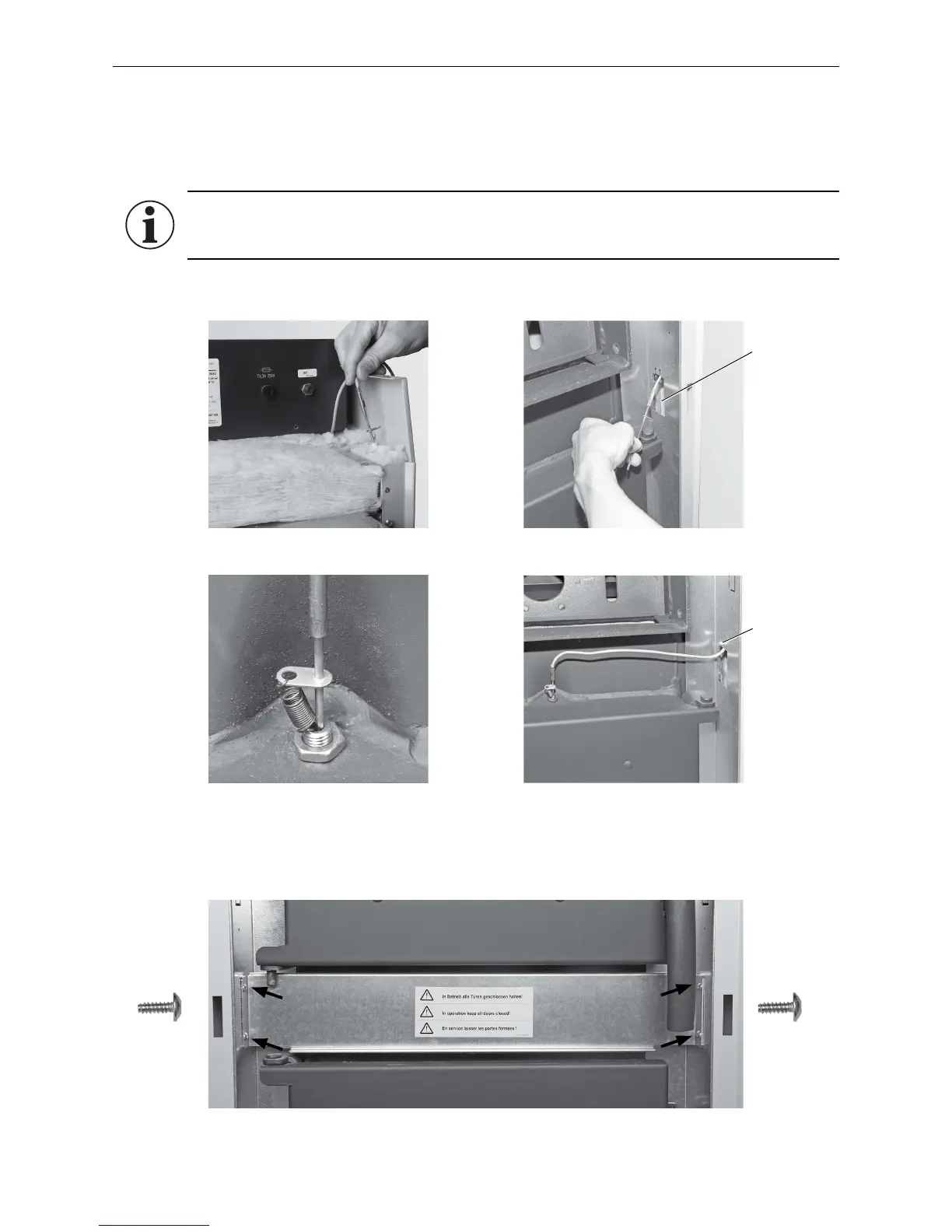

Fig. 35 Inserting the thermocontrol sensor at the top
Fig. 36 Threading through thermocontrol
sensor
Fig. 37 Securing the thermocontrol sensor
with spring
2.3.14 Installing the thermocontrol sensor cover
– Attach the thermocontrol sensor with 4 self-tapping screws – Fig. 39.
Cut-out feed-
through
Fig. 38 Pull back the cable and secure it
with cable ties
Cable tie
Fig. 39 Attaching the cover over the thermocontrol sensor with 4 screws
2 each of
2 each of
