Windhager LogWIN Klassik - Installing the Blower Housing on the Adapter; Installing the Lever for Cleaning Heating Surfaces

25
2. For the Installer

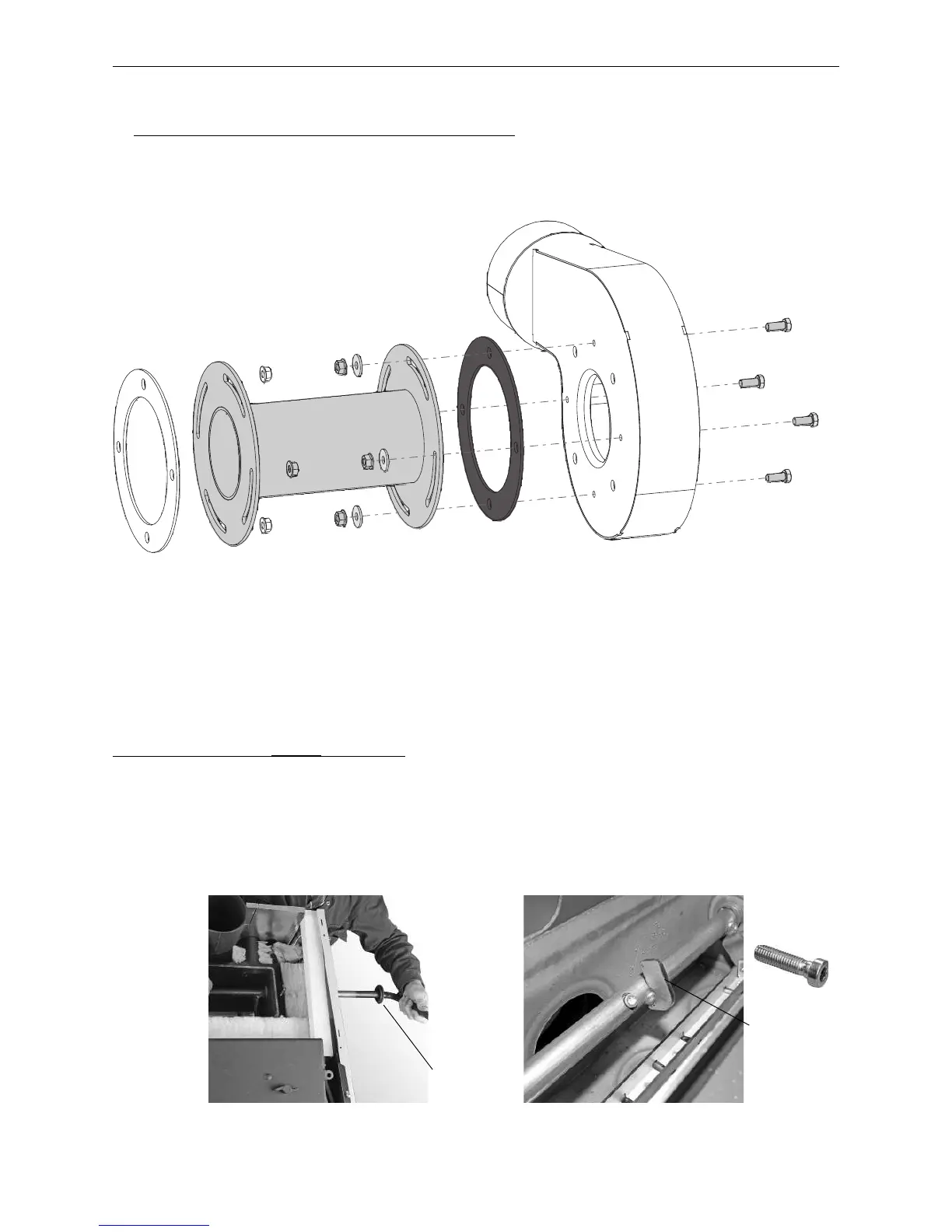

2.3.18 Installing the blower housing on the adapter
– Only for LogWIN with flue connection adapter (accessories)
– First screw the 4 included M8x16 hexagon screws into the blower housing from the inside, the attach the
blower housing with seal, 4 nuts and washers to the adapter – Fig. 47.
Fig. 47 Installing the blower housing on the adapter
2.3.19 Installing the lever for cleaning heating surfaces
only for LogWIN Klassik without pellet ready:
– Depending on accessibility, either install lever for cleaning heating surfaces on the left or right side. Punch
through the cut-out, insert lever through opening in side panel (Fig. 48) and slide inwards through the cleaning
heating surfaces axle (limit stop must face upwards – Fig. 49) and secure with Cylinder screw with hexagon
socket M8x30 (inserted only) – Fig. 49. Push the grommet into the cladding – Fig. 48.
Fig. 48 Punching through the cut-out, insert-
ing lever for cleaning heating surfaces
through opening
Fig. 49 Sliding lever through axle and secur-
ing with screw (inserted only)
Limit stop
1 x
Grommet
