26
2. For the Installer
only for LogWIN Klassik pellet ready:

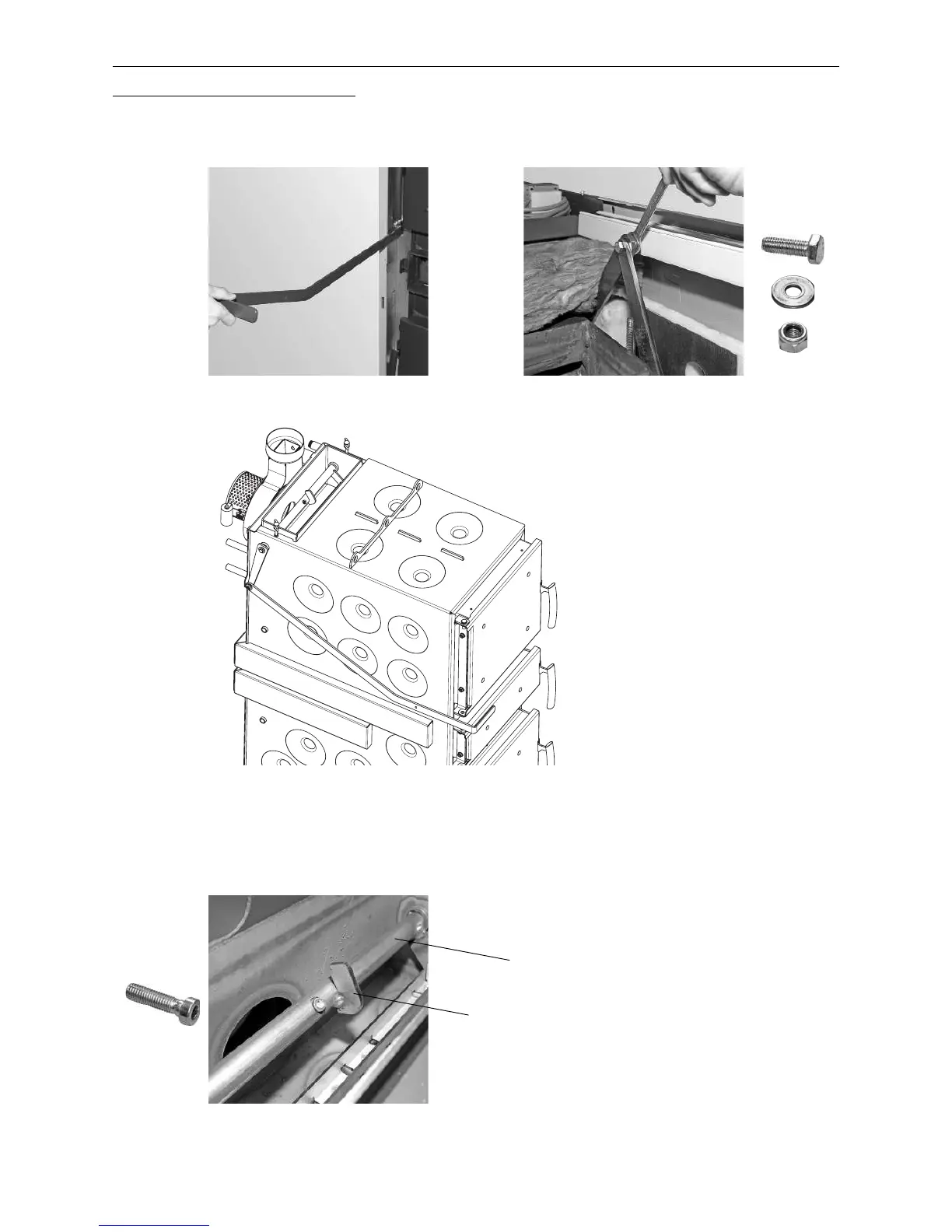

– Push the heating-surface cleaning lever into slot at front left of the side panel (Fig. 50), screw to the shorter
lever with a hexagon screw M8x25, U-washer 8 and lock nut M8 – but DO NOT tighten screw, the rods must be
free to move (Fig. 51). Next, push down behind the side panel – Fig. 52.
Fig. 50 Insert the heating-surface cleaning lever
into the slot in the side panel
Fig. 51 Screw the levers together but do not tighten
screws as the rods must be able to move
1 x
Fig. 52 Heating-surface cleaning lever is mounted behind the side panel of the LogWIN Klassik pellet ready
– Screw both shafts together in the axle (limit stop must face upwards) using a cylinder screw with hexagon
socket M8x30. Do not screw the axle to the shaft – Fig. 53.
Fig. 53 Screw the shafts together in the
axle
Limit stop
1 x
Axle
