2.3.9 Mount shaft for the lever for heating-surface cleaning
(for LogWIN Klassik pellet ready only)
Note!
With the LogWIN Klassik pellet ready, the heating-surface cleaning lever can only be mounted to the
left-hand side of the boiler.

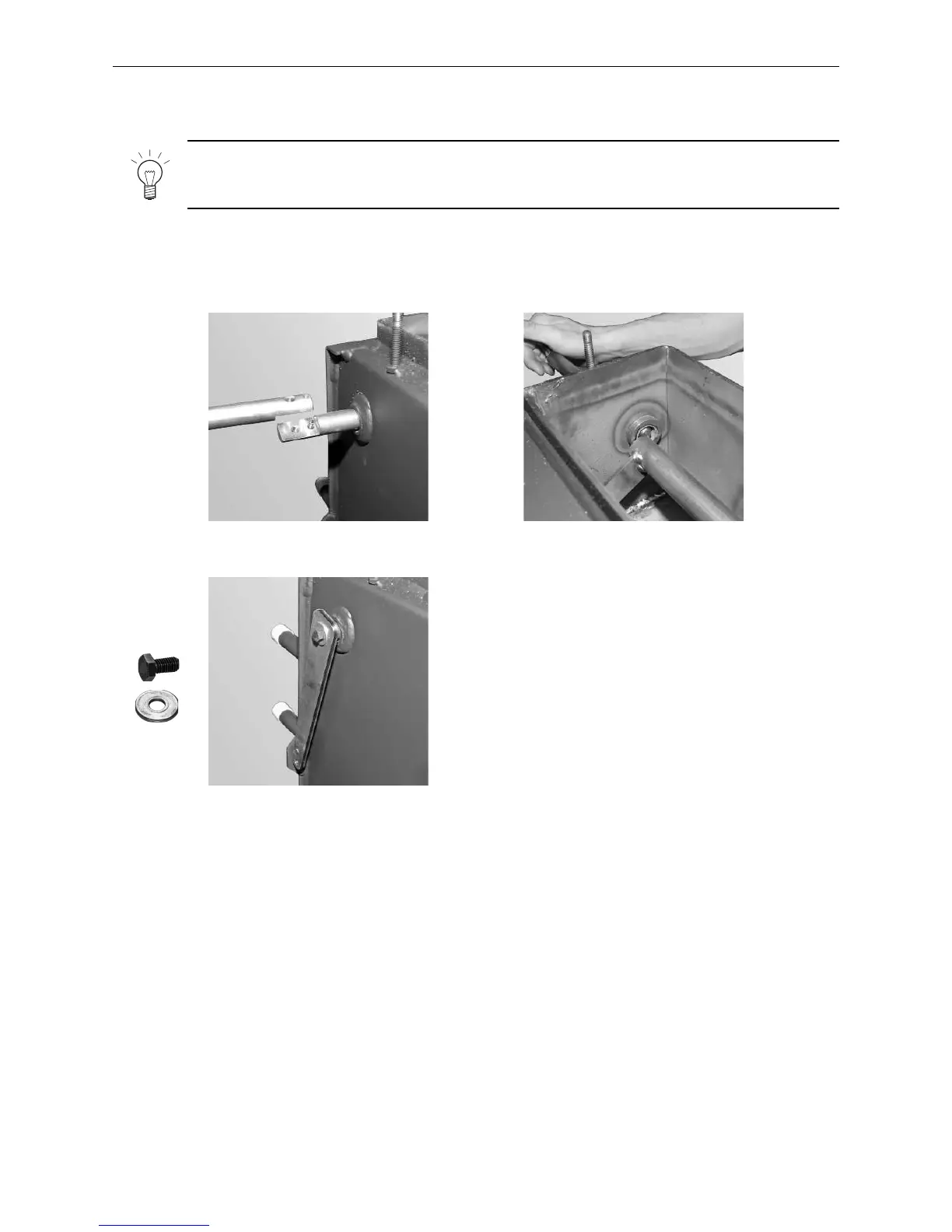

– Connect both shaft components (Fig. 22) and push the pointed side of the shaft into the rod axle – Fig. 23.
– Screw the shorter level to the shaft with a hexagon screw M8x16 and a U-washer 8 – Fig. 24.
Fig. 22 Connect both parts of the shaft
Fig. 23 Push the shaft into the rod axle
Fig. 24 Screw the shorter lever into posi-
tion
