Windhager LogWIN Klassik - Dimensional Sketches

35
4. For the Service Technician
KV . . . . . Boiler feed (5/4” pipe)
KR . . . . . Boiler return (5/4” pipe)
TV . . . . . Thermal valve sensor (1/2” sleeve)
SB . . . . . Thermal safety device (1/2” tube)
E . . . . . Discharge
4.6 Dimensional sketches

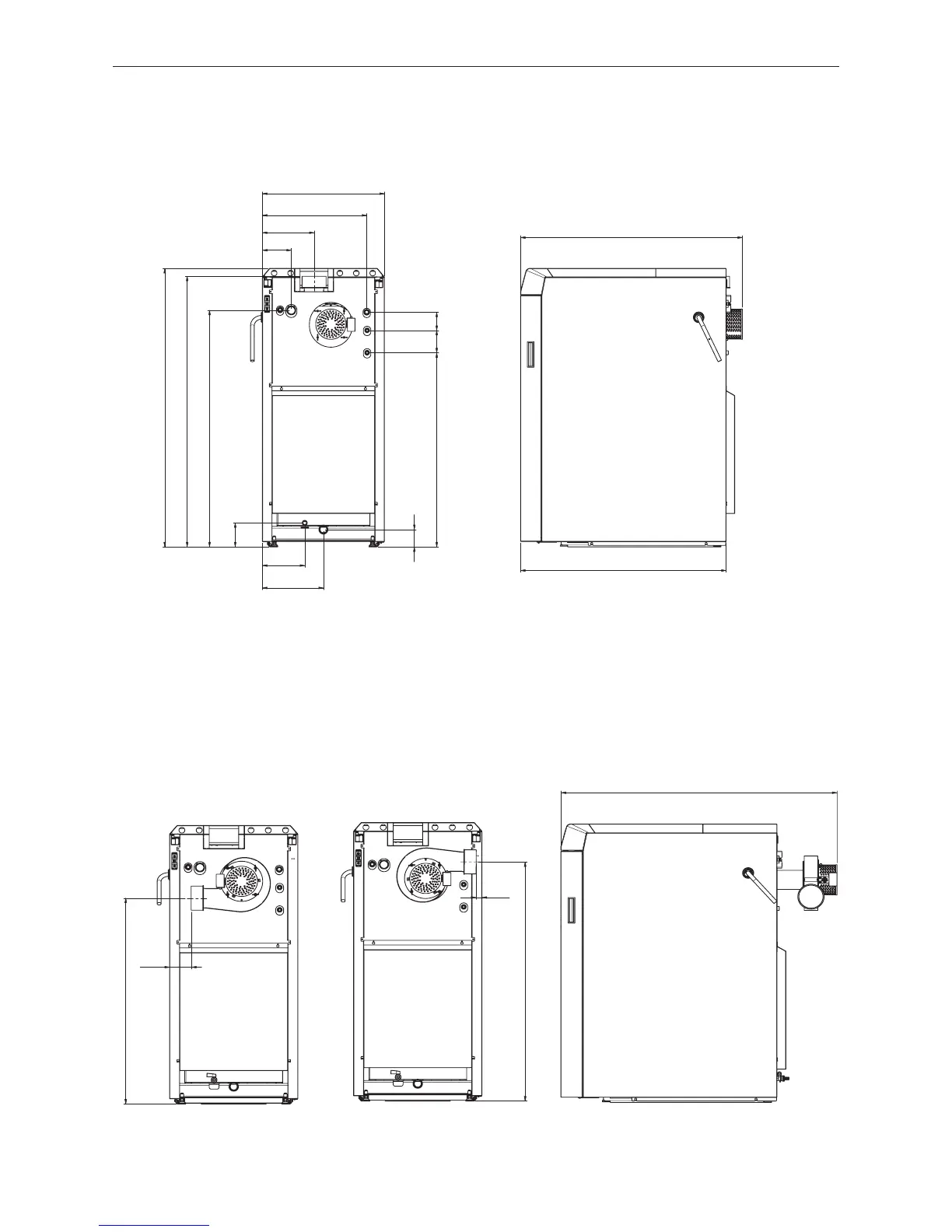

Fig. 70 LogWIN Klassik flue gas blower directly on boiler
93
129
327
227
1267
154
559
1040 120 97
1492
654
277
1437
KV
KR E
SB
SB
TV
1101
1188
All dimensions in mm:
Rear view
Left view
Flue gas blower directly on boiler, flue connection at top
Fig. 71 LogWIN Klassik flue gas blower with adapter on boiler
Blower housing with adapter, flue connection steplessly adjustable from left to right
1103
108
Rear view Left view
All dimensions in mm:
1283
30
1406
Rear view
