2. For the Installer
– Route both cables from the air control in the side panels upward via the cable channel feed-through into the
control panel as shown in Fig. 42 and connect as shown in Fig. 43.
– Route the lambda sensor cable from the control panel via the cable channel feed-through in the side panel
downward and connect to the lambda sensor – Fig. 42.

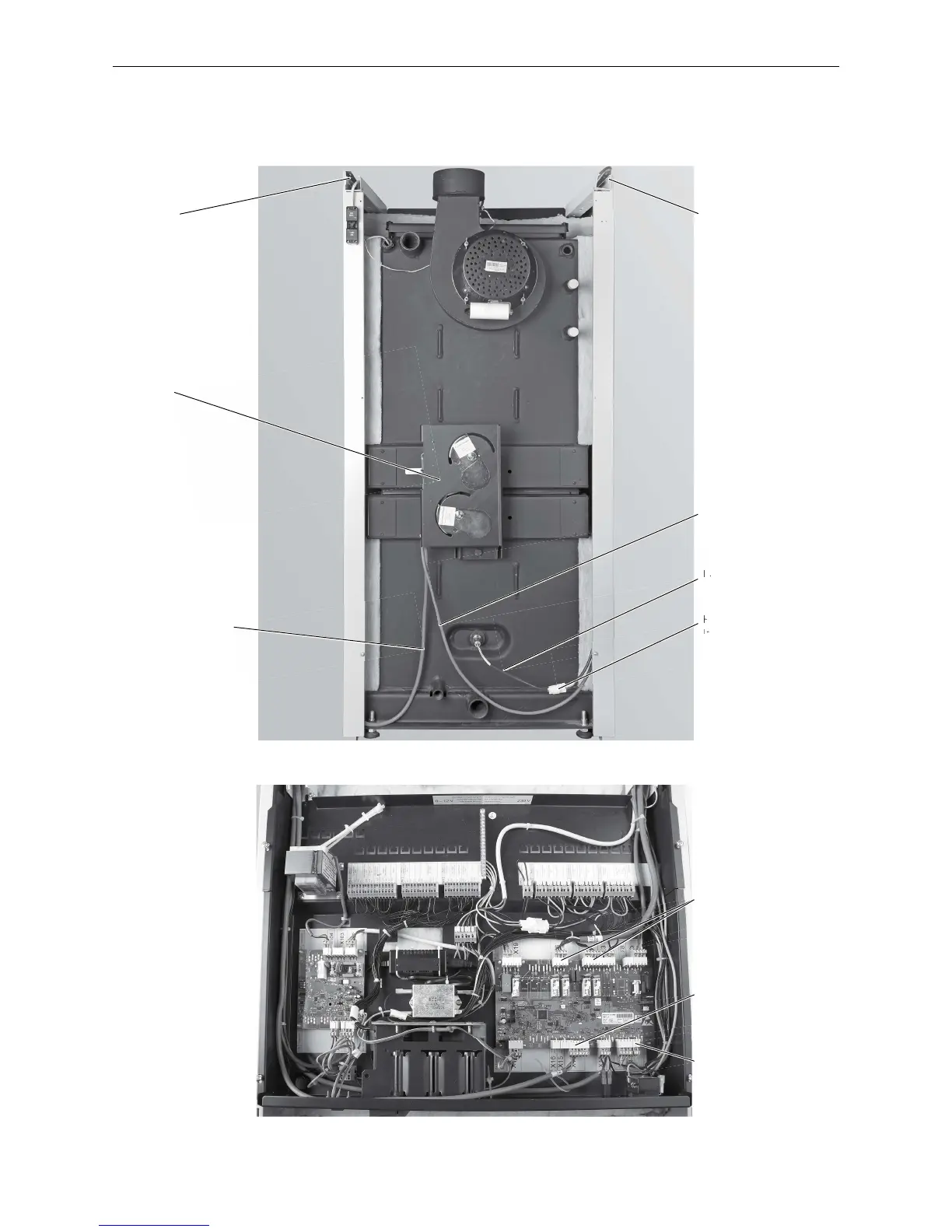

Fig. 42 LogWIN Klassik with rear panels removed – rear view
Air control cable with
Plug X6/X7
Air control cable with
Plug X14
Lambda sensor cable
Cable duct
Extra-low voltage
(0 – 12 VDC)
Air control
Cable duct
Low voltage
(230 V AC)
Fig. 43 LogWIN Klassik control panel – top view
Plug to
lambda sensor
Air control cable with
Plug X14
Air control cable with
Plug X6/X7
Flue gas sensor
(accessories) Plug X11
