3. For the Electrician

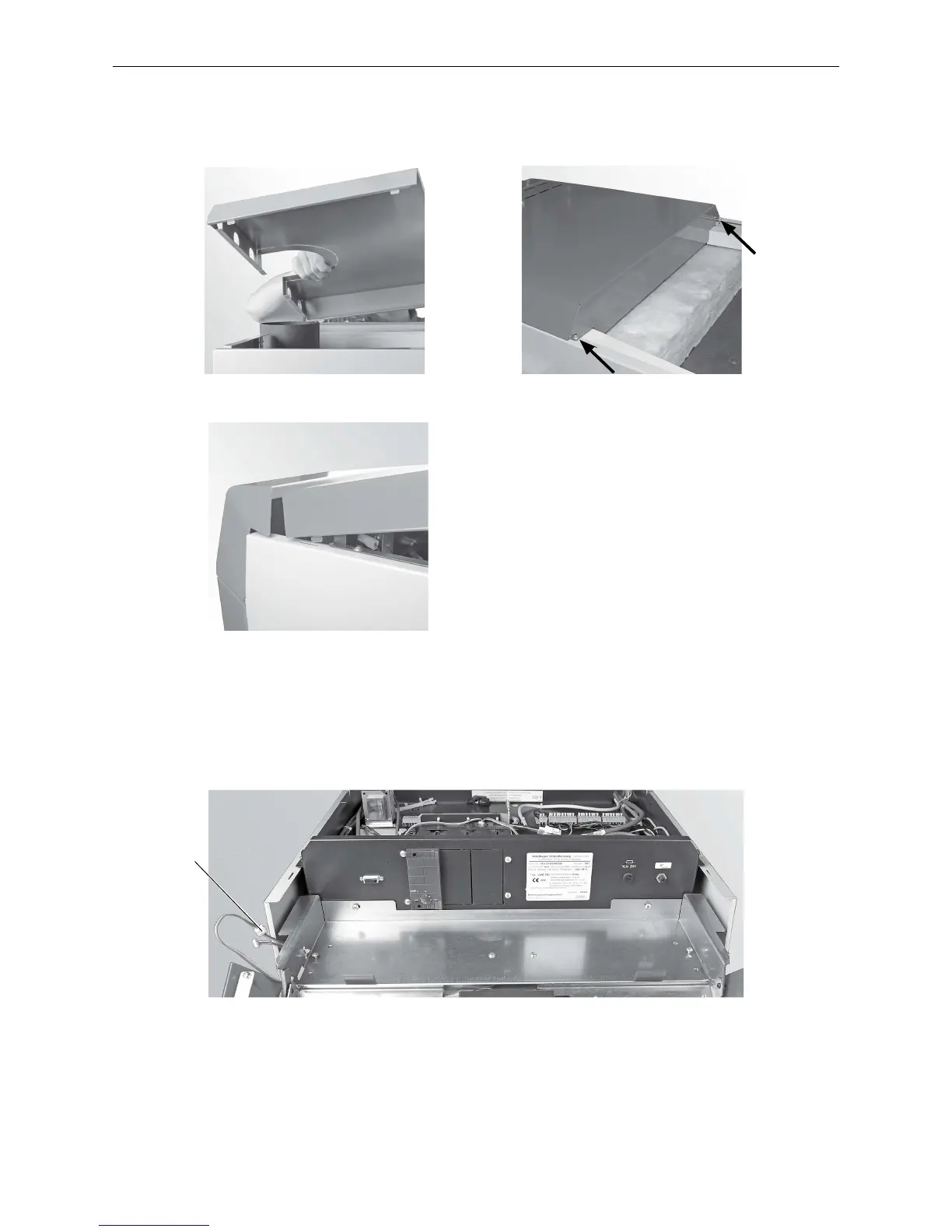

– Remove rear boiler cover (Fig. 70), loosen 2 screws from front boiler cover (Fig. 71) and lift up cover and pull
off to the rear – Fig. 72.
Fig. 70 Removing the rear boiler cover Fig. 71 Loosen 2 screws
Fig. 72 Lifting boiler cover and pulling off
to the rear
– Check 4-pin plug on InfoWIN cable, route to left side from control panel as necessary (see also 2.3.19), connect
and route in side panel – Fig. 73.
Fig. 73 Connect InfoWIN cable if necessary and route in side panel
InfoWIN cable
