1128500 WPC 2000 User Manual
5-2 Troubleshooting
Responding to WPC 2000 Faults
Whenever WPC 2000 detects a problem with the clutch/brake control, the press, or peripheral
equipment, it sends a Stop command to the press and generates a fault on the WPC 2000
display. Most of these faults are shown as a three-character alphanumeric code in the digital
LED readout (see Figure 5-1). The initial letter, E, F, or H, indicates how to clear the fault
after it has been corrected and, in the case of F and H faults, specifies the processor (WPC
2000 has two processors) that reported the problem, as shown in Table 5-1.
The two-digit number following the initial letter identifies the specific WPC 2000 fault. For
example, fault code F11, which is shown in Figure 5-1, indicates that the ram moved when the
DSV was de-energized. All E, F, and H faults are documented in numerical order starting on
page 5-5.
To respond to a fault, do the following:
1. Correct the problem that caused the fault.

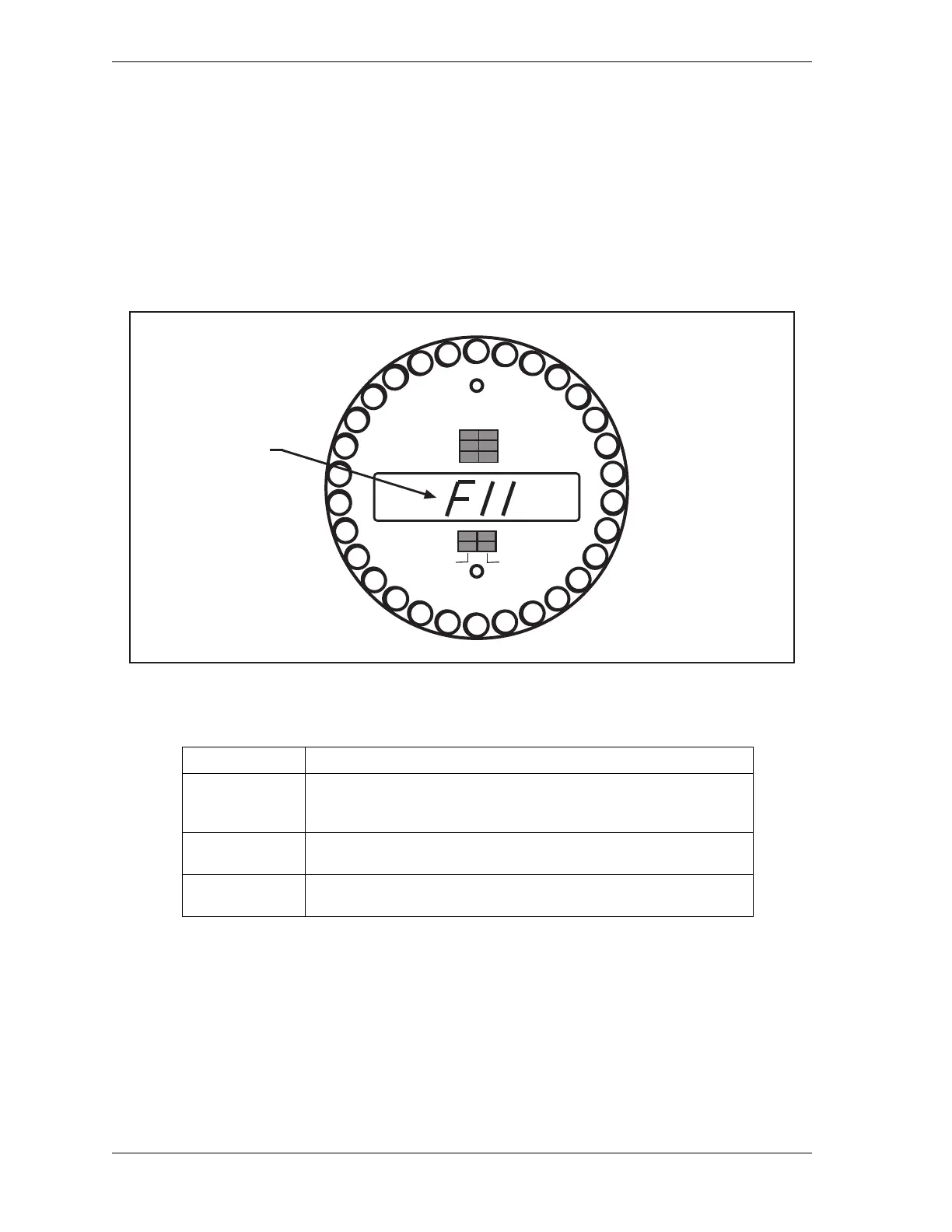

Figure 5-1. WPC 2000 Display Showing Fault Code
Table 5-1. Fault Codes: Significance of Initial Letter
Initial Letter Significance
E To clear the fault, you must power down the WPC 2000, then
power the unit back up. The fault cannot be cleared by
pressing the Reset/Select button.
F Generated by the main processor. To clear the fault, press the
Reset/Select button.
H Generated by the second processor. To clear the fault, press
the Reset/Select button.
Fault code
BRAKE WARNING
INTERRUPTED STROKE
TOP STOP ANGLE
AUTO CARRYUP
STOP TIME LIMIT
MICRO-INCH
STOPPING TIME
STOPPING ANGLE
90
° STOP TEST
COUNTER
COUNTER PRESET
ANGLE / SPM
cam on angle
cam off angle
