WPC 2000 User Manual 1128500
Installation 2-7
Slide Adjust Considerations
If your press has a motorized slide adjustment for the ram, you must prevent slide adjustment
while the press is running. Connect spare contacts on the slide adjustment switches (i.e., Slide
Adjustment “On” or Slide Adjustment “Up”/“Down” switch) to the WPC 2000 Emergency-
stop circuit or a user interlock to stop the press as soon as the ram adjust switches on. For help
in determining how to connect this wiring, call Wintriss Tech. Support.
NON-ENCLOSURE INSTALLATION
See Installing WPC 2000 without Enclosure, page 2-51 for installation instructions if you are
installing WPC 2000 in your own enclosure or console.

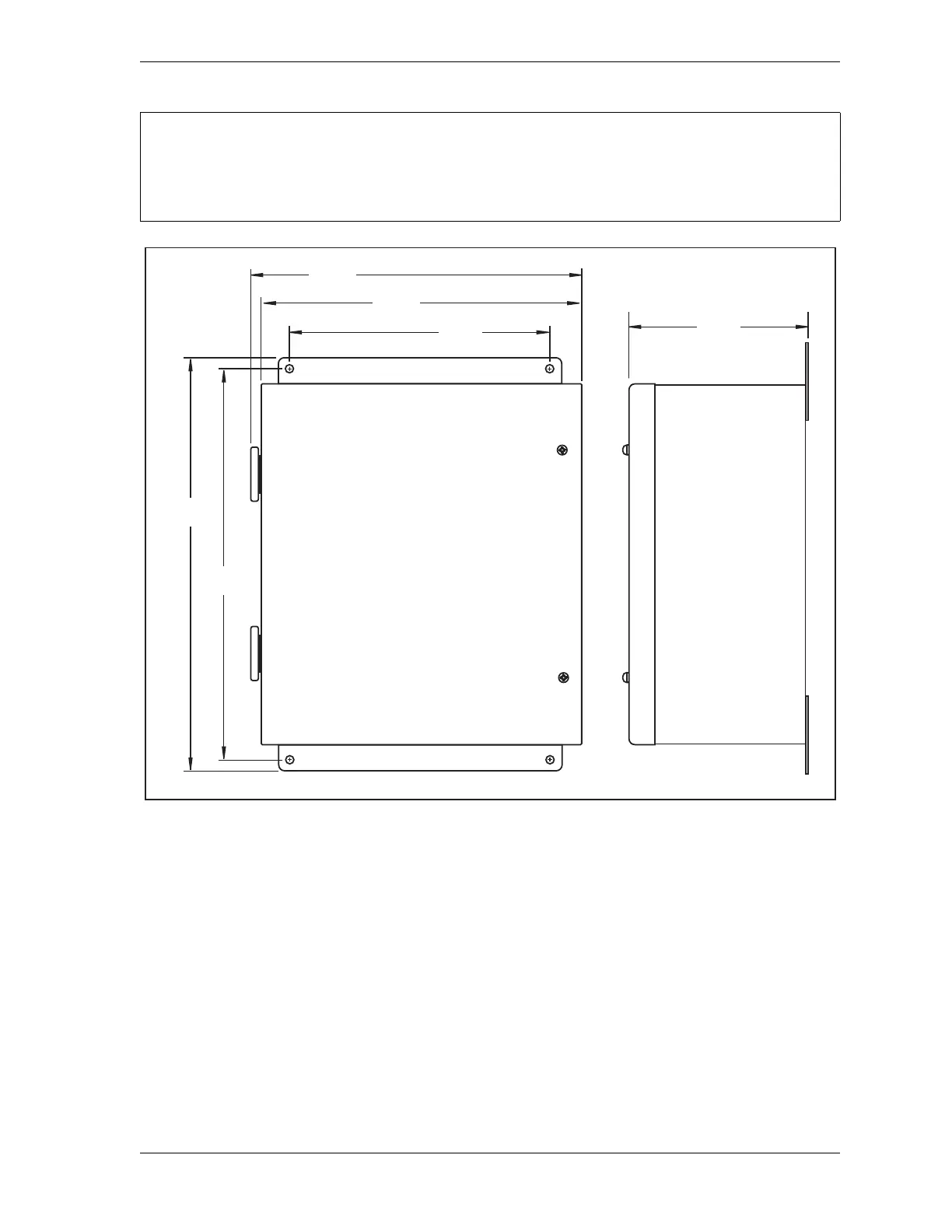

Figure 2-4. WPC 2000 Enclosure: Mounting Dimensions
NOTICE
12.00
(304.8)
14.68
(372.8)
17.62
(447.6)
16.88
(428.8)
Note: Allow sufficient clearance
for opening door
7.27
(184.5)
14.28
(362.7)
Dimensions: inches
(mm)
