WPC 2000 User Manual 1128500
Installation 2-53
1. Determine a convenient location to mount the display panel and selector switches in your
enclosure or console. Mount the display so that operators and setup personnel can easily
see the readouts and reach the switches. Make sure that all switches are no more than one
ft. (300 mm) from the display.
2. Cut out a hole in your enclosure or console, and drill and tap twelve holes for #10-32
screws, referring to Figure 2-28.

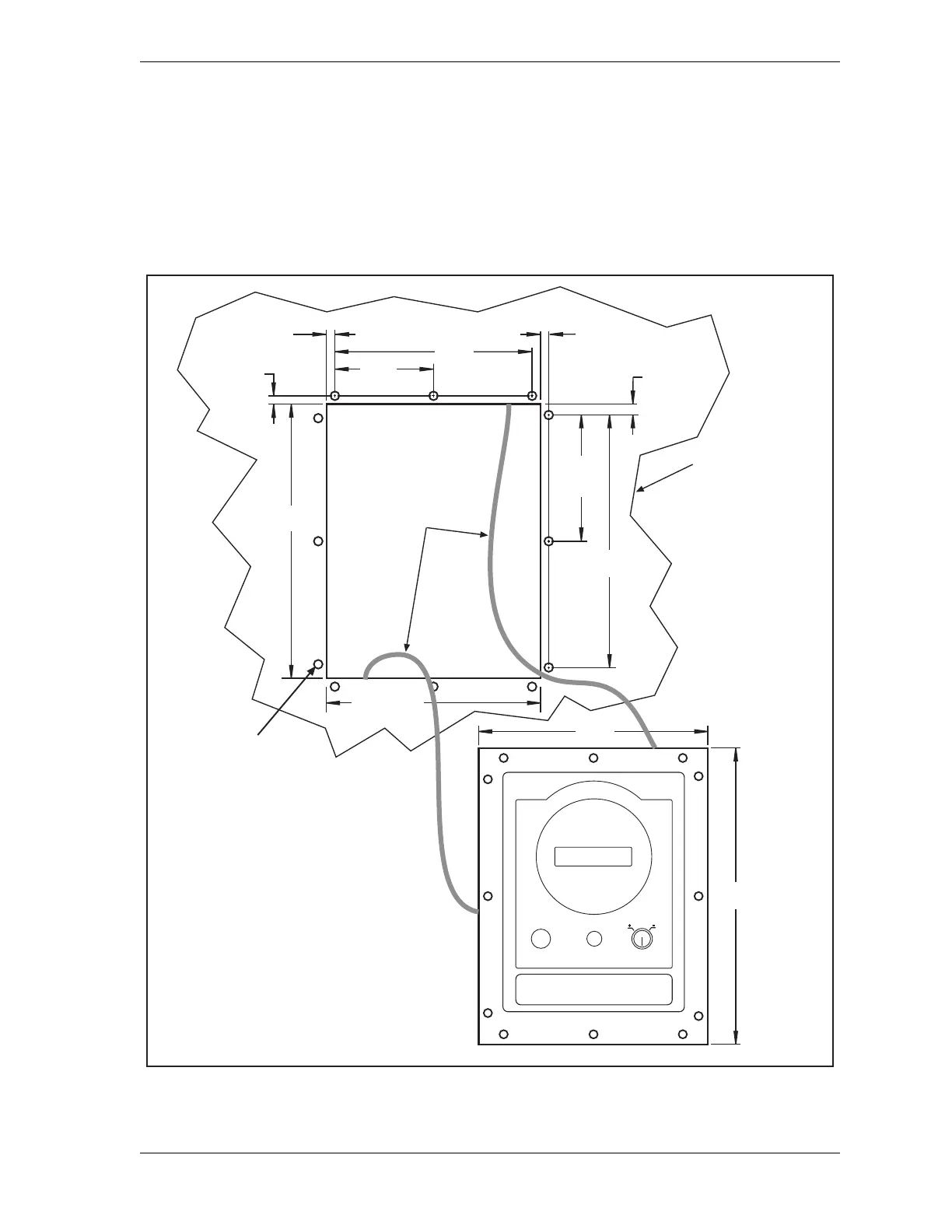

Figure 2-28. WPC 2000 Panel Mount Display: Mounting and Cutout Dimensions
YOUR
PANEL
tapped or
clearance
holes for
No. 10
hardware
12 places
allow
9 in. (230 mm)
service
loop
allow at least
4 in. (100 mm)
clearance
behind panel
Dimensions:
inches (mm)
0.5 (12.7)
2 places
6.50 (165.1)
10.00
(254.0)
9.00
(228.6)
7.50
(190.5)
6.00
(152.4)
0.25 (6.4)
2 places
0.25 (6.4)
2 places
4.00
(101.6)
4 places
8.00
(203.2)
0.25 (6.4)
2 places
3.00
(76.2)
4 places
WPC SETTINGSRESET/SELECT MUTE
