1128500 WPC 2000 User Manual
2-46 Installation
2. Loosen the clips at the bottom of the front panel of the Operator Station. Swing the front
panel up and support it so you can work inside the box. (The cover will stay up if you
slide it slightly to the left or right.)
3. Knock out a hole in the bottom of the Operator Station near the existing conduit from the
WPC 2000 control enclosure.
4. Using the conduit hole provided in the base of the One-hand Control, run conduit and
wiring to the Operator Station, referring to Figure 2-25 for terminal locations on the
bottom of the One-hand Control.
5. Measure wires to fit before cutting, then make the appropriate wiring connections,
referring to Table 2-12, below, and Figure 8 at the end of the manual.
* Refer to Figure 2-25, above
6. Fasten the switch cover onto the base with the screws provided.
7. Tighten all conduit connections that may have been loosened during installation.
8. Close and latch the cover of the Operator Station and WPC 2000.
9. Make sure that you have run all your ground wires. Do not use conduit as ground.

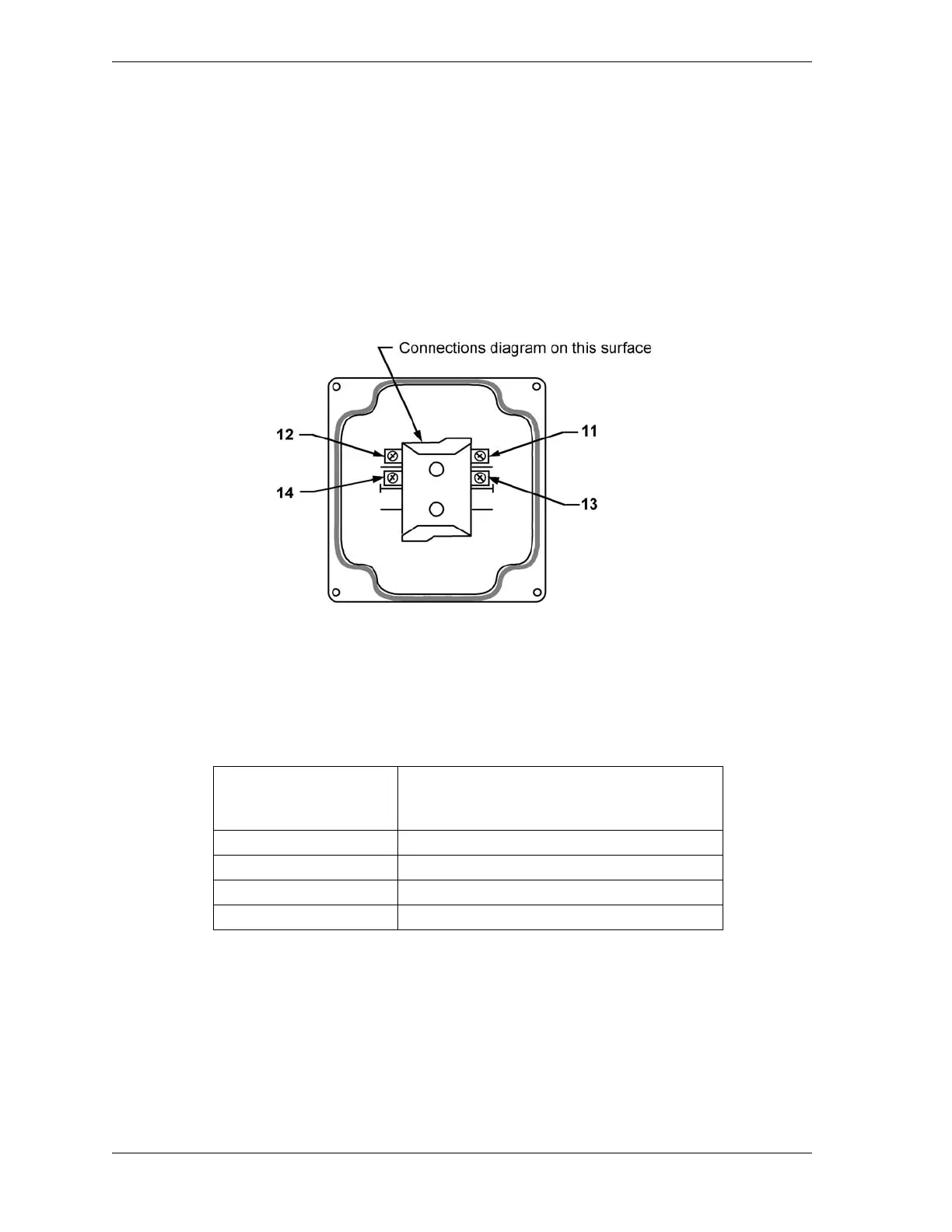

Figure 2-25. Wiring Connections in One-hand Control Switch (Switch Cover, Bottom View)
Table 2-12. One-hand Control Wiring Connections
One-hand Control
Terminal # *
WPC 2000 Main Processor Board and
Operation Station Connections
Pin# Signal
11 1 Palm switch A N/C input +
12 Blue wire in Operator Station cable
13 3 One-hand A input +
14 Blue wire in Operator Station cable
