Pre-Installation
17
Greenstar 2000 – 6 721 820 552 (2021/02)
NOTICE
Damage to system:
The heating system pipe work can be damaged by frost if installed in an
internal unheated area, such as a loft, basement or garage.
The appliance internal frost protection only monitors the system water
temperature within the appliance to provide protection for the
appliance.
▶ System frost protection can be achieved when using either Worcester
weather-compensating controls or via a hard-wired thermostat when
using external 230v controls (refer to figure 58, page 43).
▶ The system pipe work in the internal unheated area should be
insulated.
▶ If the appliance is to be shut down for an extended period, drain the
central heating system.
The appliance must be installed where:
▶ The area is well lit, allowing users to clearly see the appliance to carry
out any work or checks.
▶ An engineer can gain clear and safe access to work on the product or
component, including making adequate provision for visual
inspection of flues in voids.
▶ The homeowner can gain clear and safe access to the controls or to
check, top up or reset the appliance.
▶ Roof space installations must fully conform to BS 5410 part 1: roof
space installations.
▶ Products in roof spaces must have permanent fixed lighting, a
permanent fixed retractable ladder and a fixed floor area sufficient to
allow access for normal use and servicing around the product and
between the product and the access hatch.
We would also recommend that a remote pressure gauge and filling
loop are sited where the customer can gain easy access to assist with
checking and topping up.
4.3.2 Rooms containing a bath or shower
CAUTION
Risk of electric shock
▶ Any switch or appliance control using mains electricity must not be
within reach of a person using the bath or shower.
• In all cases the installation must be in accordance with the latest
amendments to the latest edition of the IET Wiring Regulations
(BS7671).
• Check the IP rating of any control units to be used on this appliance.
• Circuit breaking devices should be used in accordance with the
regulations.
• Figure 10 is for guidance only.

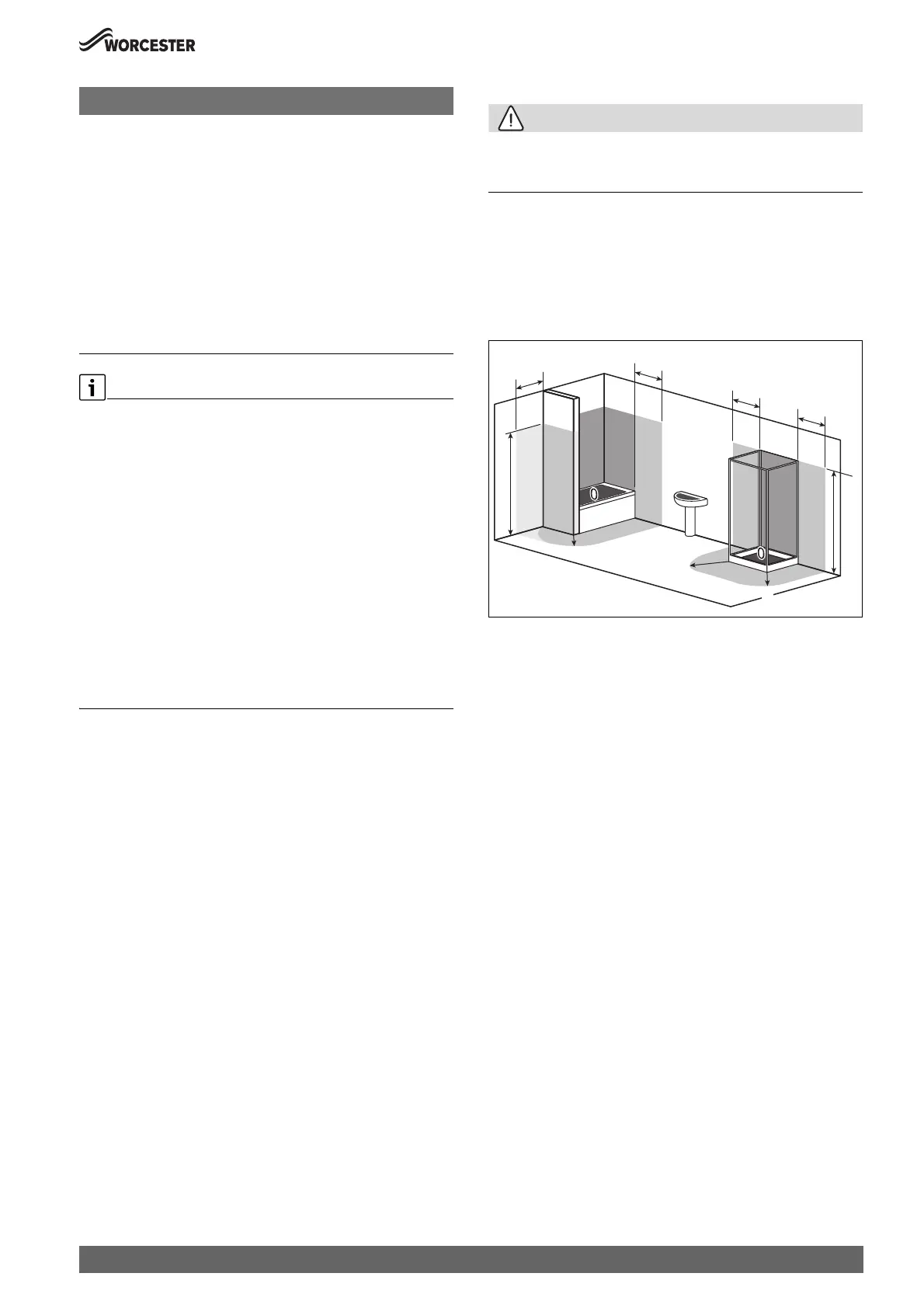

Fig. 10 Bathroom installations
[0] Zone 0
[1] Zone 1
[2] Zone 2
[2*] Without the end wall, zone 2 must extend 600mm from the bath
[A] 600mm radius from the bath or shower
• Appliance protection rating - IPX4D
0010017086-002
2
1
2
1
2
2
1
600mm
600mm
600mm
2250mm
2250mm
2*
A
A
A
600
m
m
