Product Information
9
Greenstar 2000 – 6 721 820 552 (2021/02)
3.3 Appliance type overview
These appliances are for use with:
• Natural Gas or LPG (Cat.II 2H3P type C13, C33 & C53)
This document refers to the following appliance types:
Table 2 Type overview
The name of the appliance consists of the following parts:
• GR2300iW: Type name
• 25 or 30: Hot water output in kW
• C: Combi appliance
• NG: Gas type (Natural Gas)
• LPG: Gas type (Liquid Petroleum Gas)
3.4 Product identification
Data plate
The data plate includes the product performance information, approval
data and serial number. The data plate location can be found in the
product overview.
Additional type plate
The product name and the most important product data are shown on
the additional data plate. The additional type plate can be found on the
outside of the product in an easily accessible location.
3.5 Pipe work positions and flue outlet

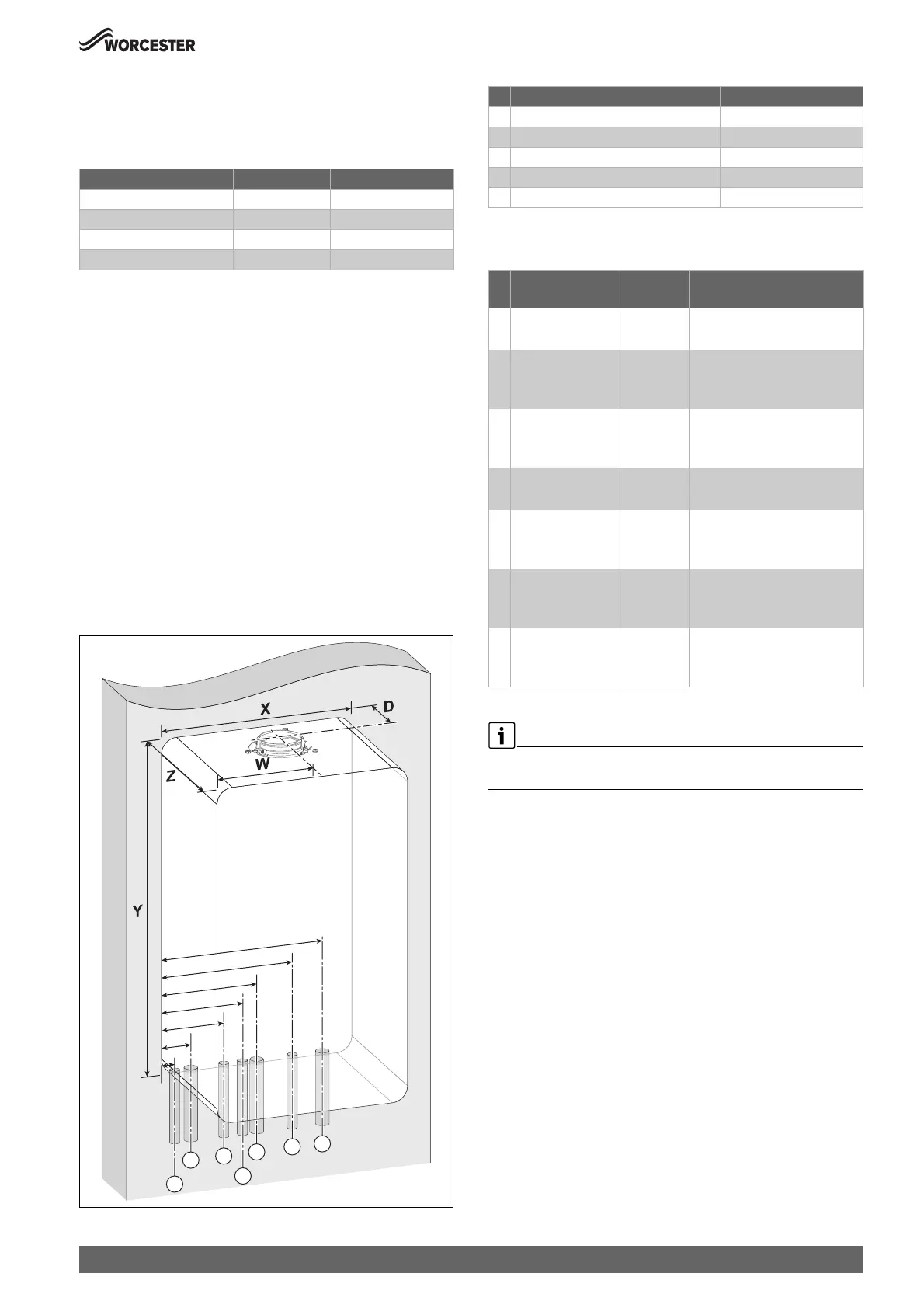

Fig. 2 Pipe and flue outlet dimensions
Table 3 Appliance and flue outlet dimensions
Table 4 Pipe dimensions
For servicing purposes, keep condensate and pressure release valve
discharge pipes away from other hydraulic components.
Appliance type Part number Gas Council number
GR2300iW 25 C NG 7 736 902 099 47-800-26
GR2300iW 30 C NG 7 736 902 100 47-800-28
GR2300iW 25 C LPG 7736 902 101 47-800-27
GR2300iW 30 C LPG 7736 902 102 47-800-29
0010029389-001
1
2
3
5
4
6
7
Description Dimensions (mm)
X Appliance width 400
Y Appliance height 724
1)
1) Side panel height = 710mm
Z Appliance depth 300
W Flue centre from appliance left side 200
D Flue centre from rear of appliance 125
# Function From left
case edge
Diameter of pipe
1 Condensate Outlet 60mm 22mm
• Rubber push fit connection
2 CH Flow 68mm 22mm
• Compression fitting (via
adaptor)
3 DHW Outlet 133mm 15mm
• Compression fitting (via
adaptor)
4 PRV Discharge 172.5mm 15mm
• Push-fit fitting (via adaptor)
5 Gas 200mm 22mm
• Compression fitting (via
adaptor)
6 DCW Inlet 267mm 15mm
• Compression fitting (via
adaptor)
7 CH Return 332mm 22mm
• Compression fitting (via
adaptor)
