Replacement parts
Greenstar 2000 – 6 721 820 552 (2021/02)
70

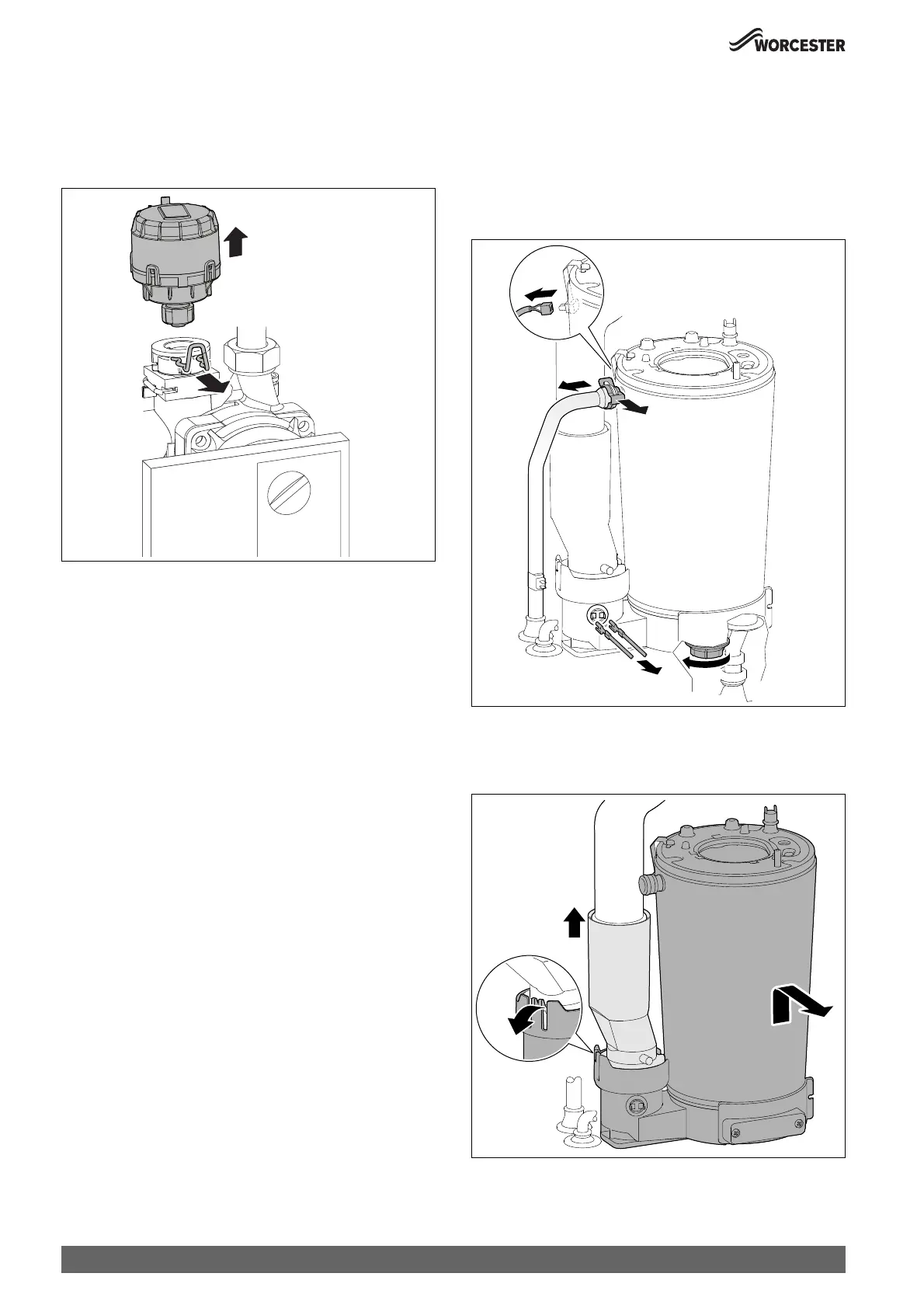

10.10 Removing the motor of the diverter valve
▶ Removing the automatic air vent valve
▶ Removing the motor of the diverter valve:
1. Undo clip.
2. Remove the motor of the diverter valve.
Fig. 98 Removing the motor of the diverter valve
▶ Press the cable retaining clip and remove the plug.
10.11 Removing the heat exchanger
▶ Remove the fan, gas hose and mixing device (Chapter 9.8, page 61).
1. Remove the clip.
2. Detach the flow pipe.
3. Disconnect the cable from the flow temperature sensor on the heat
exchanger.
4. Disconnect the cable from the flue gas temperature limiter.
5. Remove the nut.
Fig. 99 Detach the flow pipe and disconnect the cable
1. Unclip the flue pipe.
2. Push the flue pipe up.
3. Remove the heat exchanger.
Fig. 100 Removing the heat exchanger
1.
2.
0010006640-003
1.
2.
3.
4.
5.
0010015950-002
1.
3.
2.
0010015951-002
