Replacement parts
69
Greenstar 2000 – 6 721 820 552 (2021/02)
10.7 Removing the gas valve
▶ Close gas isolator.
▶Unplug the plug.
▶ Undo the union nut on the top of the gas valve.
▶ Pull off the gas hose and pressure reducer.
▶ Undo the union nut on the bottom of the gas valve.

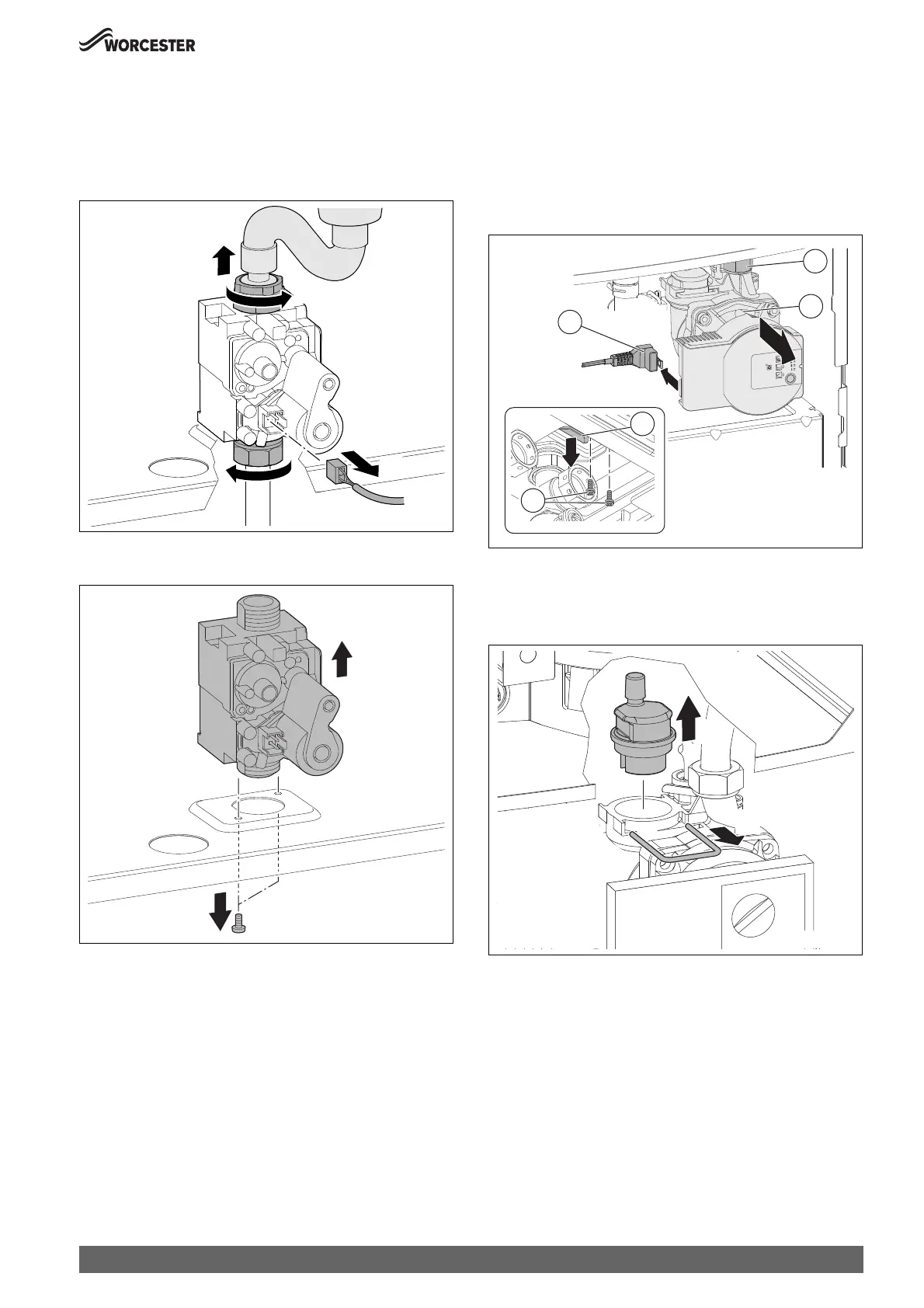

Fig. 94 Pull of the plug and undo the union nuts
▶ Remove 2 screws and take off gas valve.
Fig. 95 Removing the gas valve
▶ Install the gas valve in reverse order, and check the gas/air ratio.
10.8 Removing the pump
▶ Unplug the electrical plug [5].
▶ Disconnect nut connection [1] between pump and heatcell.
▶ Remove clip [3] between diverter valve manifold and pump
assembly.
▶ Remove 2 x T20 (Torx) screws [4] from the bottom plate of the
appliance.
▶ Remove pump assembly [2].
Fig. 96 Removing the pump
10.9 Removing the automatic air vent valve
1. Remove the clip.
2. Pull out the automatic air vent valve.
Fig. 97 Removing the automatic air vent valve
