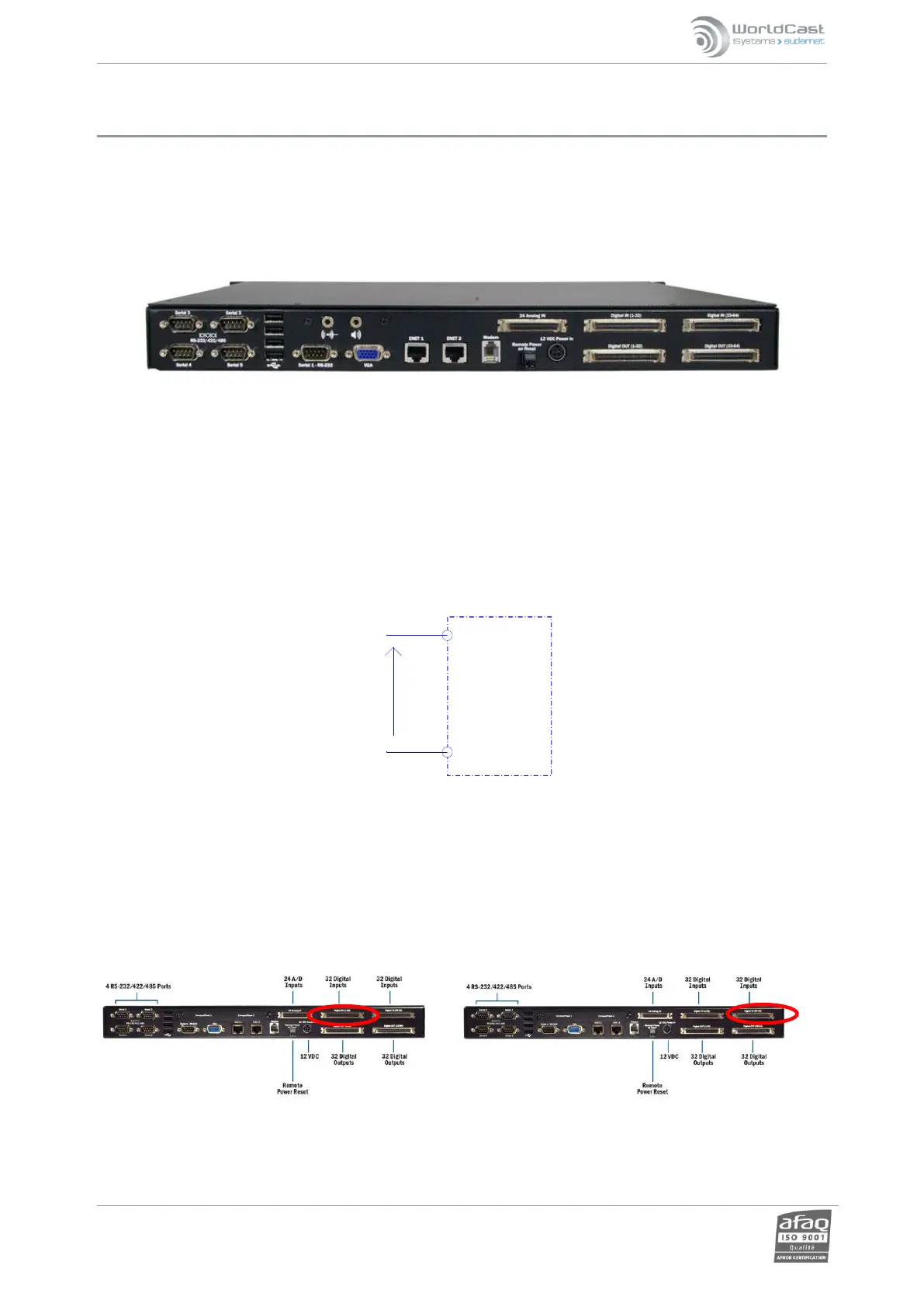

APPENDIX A: PINOUT CONNECTIONS
! Please refer to the ScriptEasy manual for more information on I/O management
 All Input/Output connectors are high density SCSI format, with locking tabs
A.1. 64 Digital opto isolated inputs
The Relio has two integrated digital input connectors; each one providing 32 digital inputs
Digital inputs - using the SCSI connectors
Schematic diagram
The input is OFF by default.
It switches ON if an external power supply between 5 and 25VDC is applied between the 2 digital inputs (either
polarity – the opto-isolators are bidirectional).
SCSI Pinout – Digital Inputs
Digital
Input A
Digital
input B
V
