Lubricate front shaft, gear seat assembly, oil seal (lip), sleeve, bearing 6301-2RS, and middle sleeve.
Recommended lubricant is calcium base grease.
Install front shaft（3）, front wheel, gear seat assembly（2）and Nut M12Χ1.25.
Gear seat assembly shall be halved at installation.
If odometer gear seat assembly does not align and lock the front shaft, the odometer gear seat will be distorted.
Install front brake assembly to the front brake disc.
Tighten front shaft.
Note: Refer to Page 95 of the manual for
detailed QJ125 Motorcycle front wheel
disassembly and assembly diagram
Front wheel locknut tightening torque: 55-62
N·m
7.4 Steering Handle
7.4.1 Removal
Remove left and right rear mirror assemblies（1）
and（2）.
Open the fixed cover.
Remove left handle assembly（10）of front brake.
Remove balancing assemblies（3）and (4).
Remove left and right combination switches（6）and (10)..
Remove left handle grip assembly（9）, throttle control handle
（5） and steering handle upper holder mounting screw.
Take down steering handle upper holder.
Remove steering handle assembly.
7.4.2 Installation

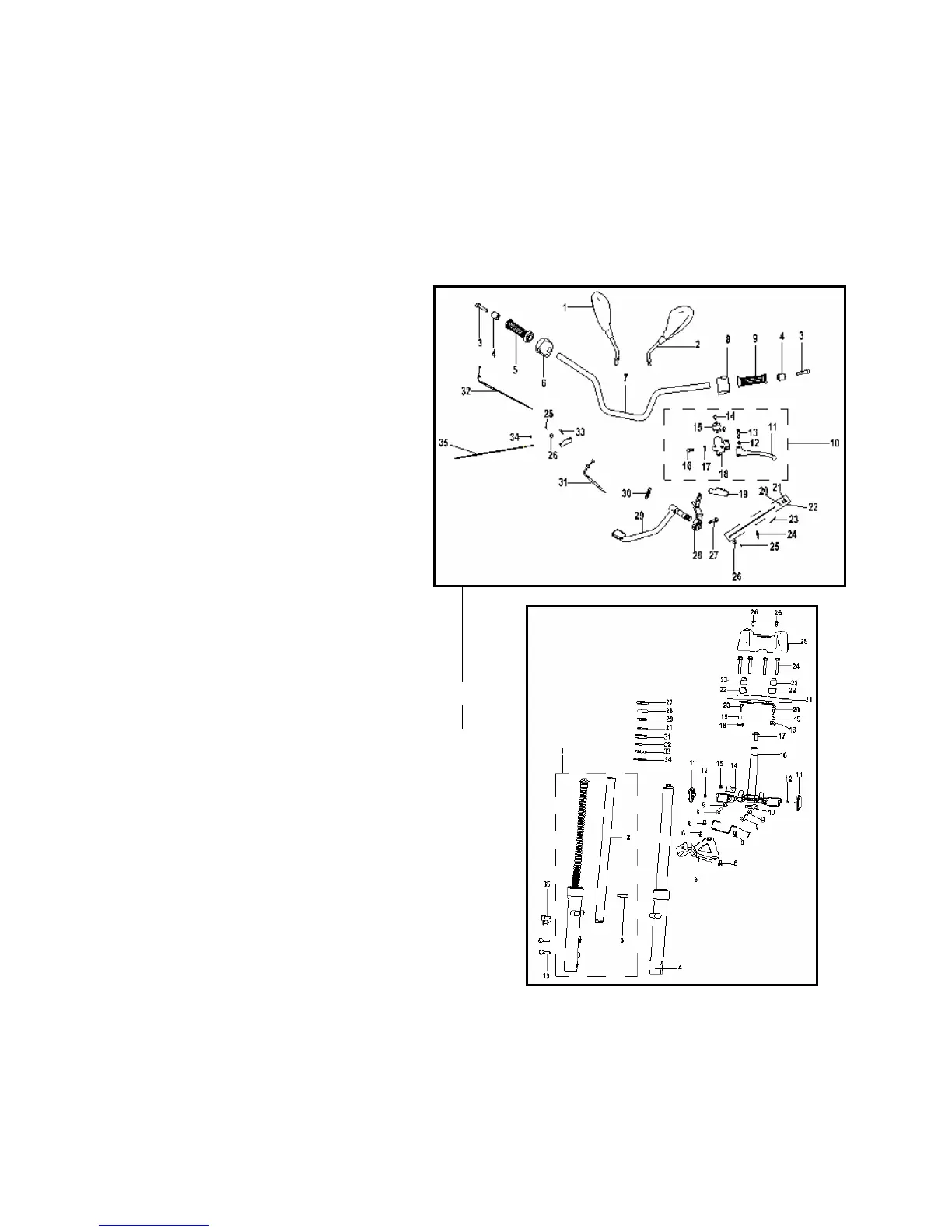

* Note: Refer to Page 96 of the manual for QJ125-26A
Motorcycle steering handle disassembly and assembly
diagram.
Install the steering handle in the reverse order of removal.
Top bracket assembly mounting bolt
Tightening torque：40-60 N·m
