1.7 Magneto Removal
* Attention
Inspection of magneto lighting coil can be performed on
the engine.
1.7.1 Inspection
Disconnect the 4P connector on the magneto.
Use a multimeter to measure impedance value between
yellow coil of magneto and ground wire of vehicle block.
Standard value：0.4-0.6Ω（20）
If measured value exceeds the standard, the magneto coiling shall be replaced.

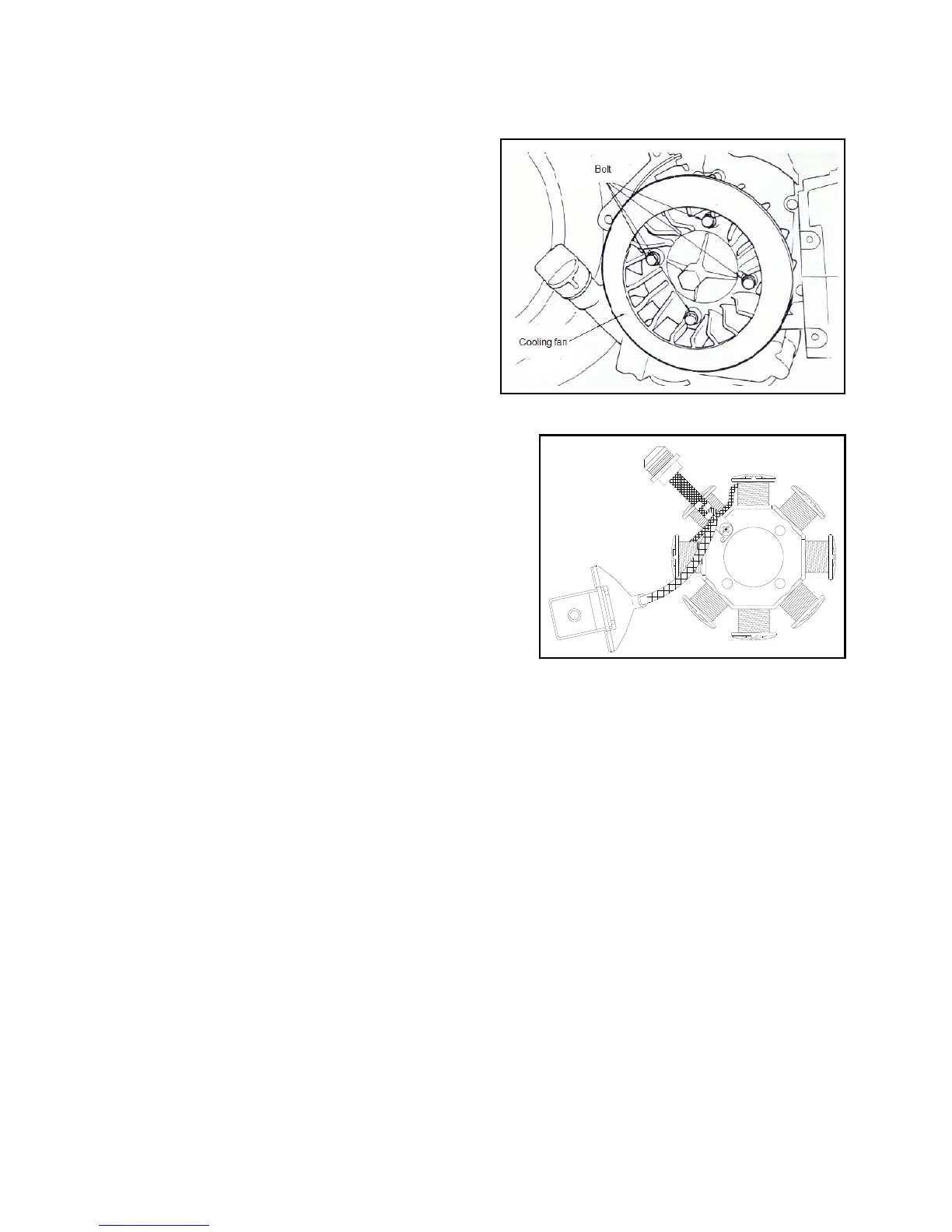

1.7.2 Removal
Remove vehicle block protecting plate.
Remove protecting plate of engine on the left side.
Remove flywheel locknut.
Use a flywheel remover to take down the flywheel.
Remove the fixation key.
Disconnect lead-wire connector of magneto.
Remove stator of magneto.
1.7.3 Installation
Install the magneto stator onto the engine box.
Connect lead-wire connector of magneto.
Clean crankshaft and conical part of flywheel.
Make sure the fixation key is installed into the key slot on the crankshaft.
Align the groove on the flywheel to the fixation key on the crankshaft.
