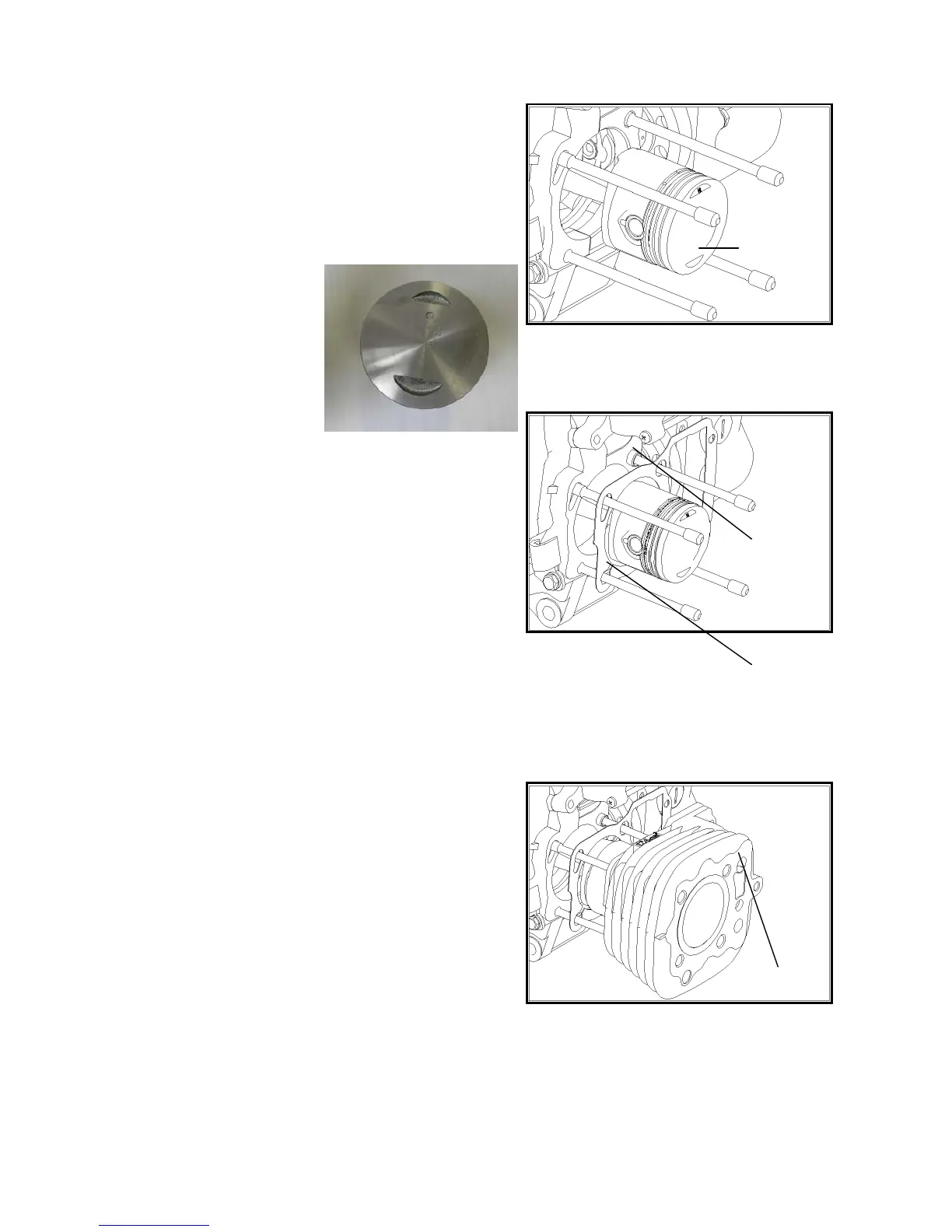

Scrape the washer attached to the crankcase.
* Attention:
No foreign matters can be dropped into the crankcase.
Install piston, piston pin and piston pin retainer.
* Attention:
Install with the “Point” mark at the bottom of piston facing the
exhaust valve.
13.5 Install Cylinder
Install washer and location pin onto the crankcase.
Apply evenly engine oil on inner wall of cylinder, piston and piston ring.
Install carefully the piston ring into the cylinder.
* Attention: Do not hurt piston ring.
“point” Mark
Cylinder
Location pin
Washer
To Next Page
