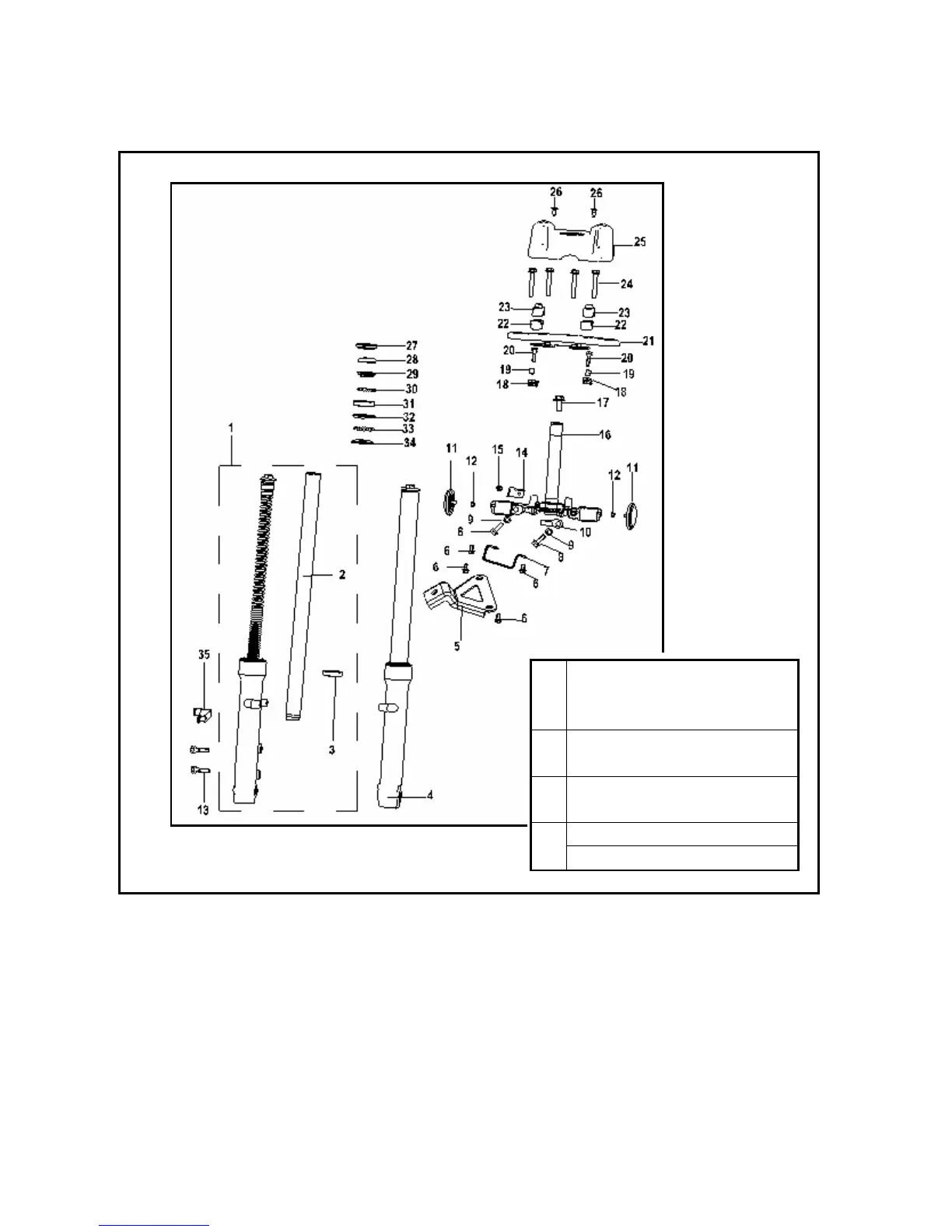

Front Fork Assembly
1 Right front shock absorber assembly 2 Inner pipe 3 Oil seal 4 Left front shock absorber assembly 5 Lower
steel bowl of upper bearing 6 Upper steel bowl of lower bearing 7 Cable clip 8 Lower steel bowl of lower
bearing 9 Headlamp lower bracket 10 Main cable clip 11 Hexagon socket screw 8x30 12 Steering handle
upper holder 13 Bracket lower washer 14 15 Bolt M6×16 16 Bush 17 Steering shaft lever nut 18
Rubber boot stem fixing bolt 19 Lower bracket assembly 20 Combination screw M6×12 21 Upper bracket
assembly 22 Nut M6 23 Side reflector assembly 24 Washer 10 25 Dust cover 26 27 Combination
screw M6×16 28 Location pin 29 Upper steel bowl of upper bearing 30 Steel ball 3/16 inch 31 32 33
Steel ball 1/4 inch 34 Front mudguard left bracket II assembly 35 Screw M6×15.2 36 Hexagon socket screw
M6×16 37 38 Hexagon socket screw M6×30 39 Front mudguard right bracket II assembly 40 Front
mudguard right bracket I assembly
A
Tightening torque for Bolt 16
（Steering stem mounting bolt） in
the diagram：40-60
N·m
B
Tightening torque for Bolt 19 in the
diagram：22-29
N·m
C
Tightening torque for Bolt 29 in the
diagram：37-44
N·m
D
Number of upper steel balls：23
Number of lower steel balls：19
