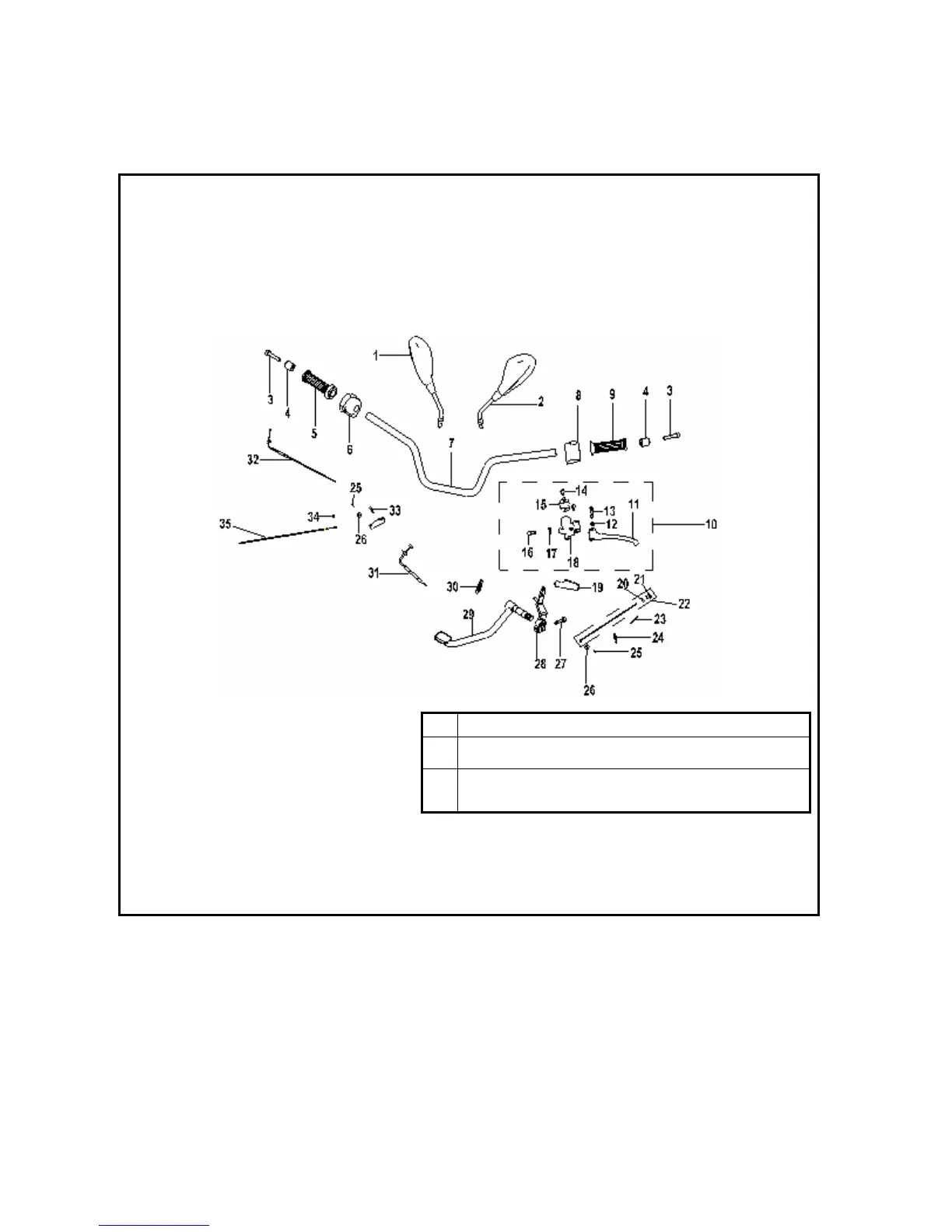

Control Assembly
A
Tightening torque of hexagon Socket screw 237-44
N·m
B
Tightening torque of Nut 195-9
N·m
C
Tightening torque of Screw 205-9
N·m
1 Right rear mirror assembly 2 Left rear mirror assembly 3 Bolt 4 Handle gear block 5 Right handle
assembly 5 Right combination switch 6 Right combination switch 7 Steering handle welded assembly 8 Left
combination switch 9 Left steering handle jacket 10 Left handle assembly 11 Left handle 12 Slotted Nut 13
Handle mounting bolt 14 Bolt M6×25 15 Fixed cover 16 Adjusting screw tube 17 Slotted nut 18 Left and
right rear mirror holders 19 Clutch cable jacket 20 Shaft pin 12×20 21 Brake adjusting nut 22 Rear brake
pull rod assembly 23 Rear brake spring 24 Rear brake switch tension spring 25 Cotter pin 2×18 26
Washer 6 27 Bolt M8×30 28 Connect seat assembly 29 Brake pedal welded assembly 30 Rear brake
return spring 31 Choke cable assembly 32 Throttle cable assembly 33 Bolt M6×16 34Pin 6×14 36 Clutch
cable assembly
